Product Details
| Product Status | Active |
| Brand | Zephyr |
| Model # | PRW24C01CG |
| MSRP ($) | $1899 |
| Short Description | Presrv Wine Cooler, 24in UC, SS+Gls, Rvs Door, 1Z |
| Collection | Presrv |
| UPC | 646328011443 |
| Category | Wine Cooler |

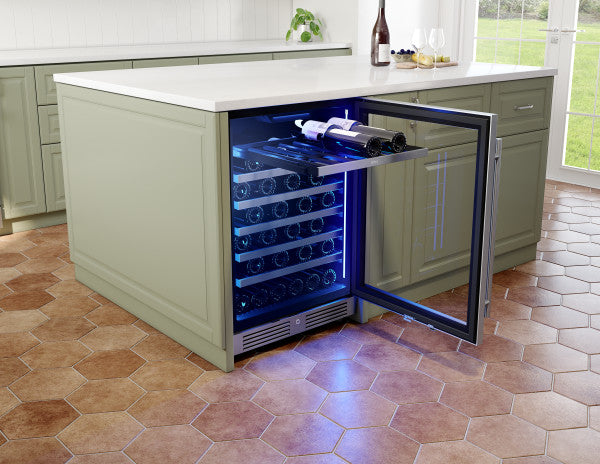

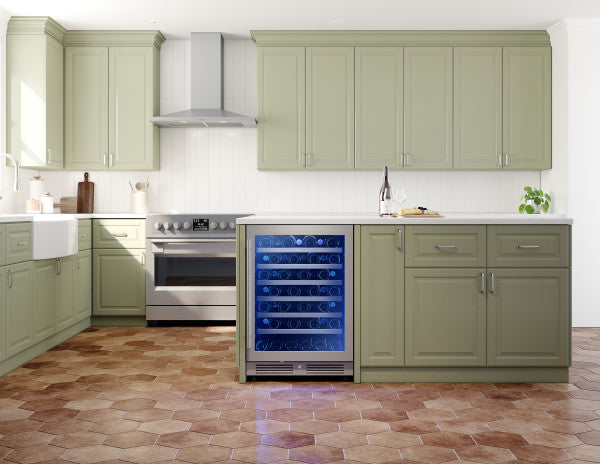

| Installation Type | Built-In or Freestanding |
| Refrigerant Type | R600a |
| Bottle Capacity (750 ml) | 53 |
| Can Capacity (12 oz) | 0 |
| Cooling Zones | 1 |
| Maximum Temperature (F) | 65 |
| Minimum Temperature (F) | 40 |
| For Outdoor Use | No |
| Door Finish | Stainless Steel + Glass |
| Cabinet Finish | Black |
| Interior Finish | Black |
| Number Of Shelves | 6 |
| Shelf Material Type | Wood |
| Controls Type | Capacitive Touch |
| Lighting Type | LED |
| Lights Quantity | 3 |
| Sound Level (dBA) | 39 |
| Voltage | 115 |
| Maximum Amperage | 1 |
| Color | Stainless Steel + Glass |
| Watts Per Bulb | 3 |
| Lights Levels | 4 |
| Compatible Appliances | PRHAN-C001, PRHAN-C102, PRHAN-C104, Z0F-C004, PRHAN-C004, PRHAN-C003 |
| Country of Origin | China |
| CEC Title 20 Compliant | Yes |
| ADA Compliant | No |
Product Dimensions
| Maximum Height (IN) | 34.375 |
| Minimum Height (IN) | 33.875 |
| Depth; Door Open 90° (IN) | 46.125 |
| Depth; Excluding Door (IN) | 21.875 |
| Depth; Excluding Handle (IN) | 23.625 |
| Depth; Including Handle (IN) | 25.5 |
| Net Width (IN) | 23.875 |
| Nominal Width (IN) | 24 |
| Volume (Cu/Ft) | 5.6 |
| Interior Height In. | 28.5 |
| Interior Width In. | 20.875 |
| Weight; LBS | 119.5 |
| Cutout Depth in. | 24.37 |
| Cutout Height in. | 34 |
|
Cutout Width in.
|
24 |
Features
| Feature 1 | PreciseTemp™ |
| Feature 1 Definition | Multiple internal sensors help maintain accurate temperatures and increase overall performance. |
| Feature 2 | Active Cooling Technology |
| Feature 2 Definition | An on-board computer controls an active cooling fan to provide temperature stability and even cooling. |
| Feature 3 | Vibration Dampening System |
| Feature 3 Definition | Enhanced technology ensures noise and vibration is reduced to minimize wine disturbance. |
| Feature 4 | Dual-Pane, Low-e Argon-Filled Glass Door |
| Feature 4 Definition | Dual-pane, argon-filled glass improves insulation and soundproofing. The Low-E coating helps minimize UV and infrared light penetration. |

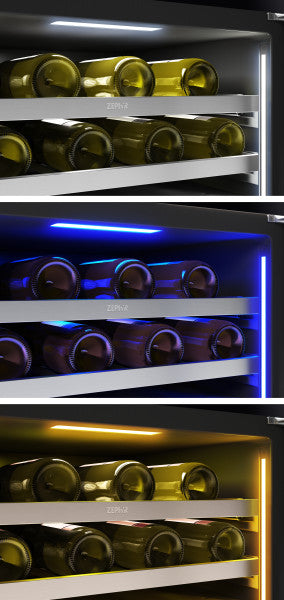

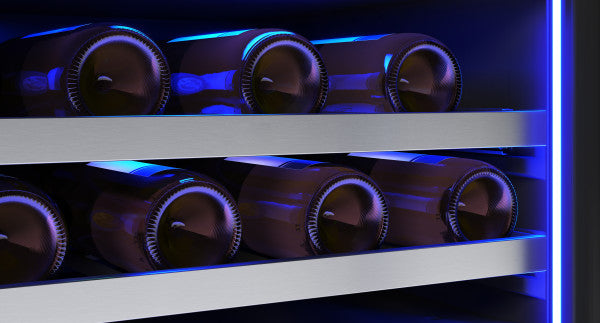

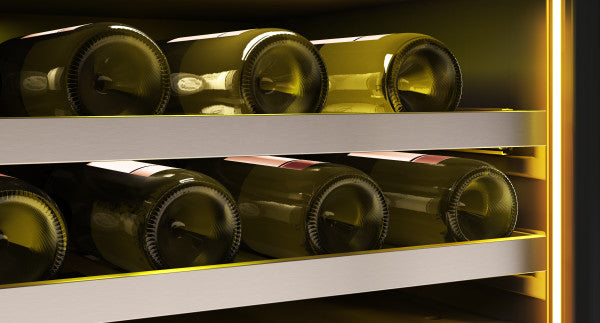

| Feature 5 | 3 Color LED Lighting |
| Feature 5 Definition | LED strip lighting in Cloud White, Deep Blue and Amber. |

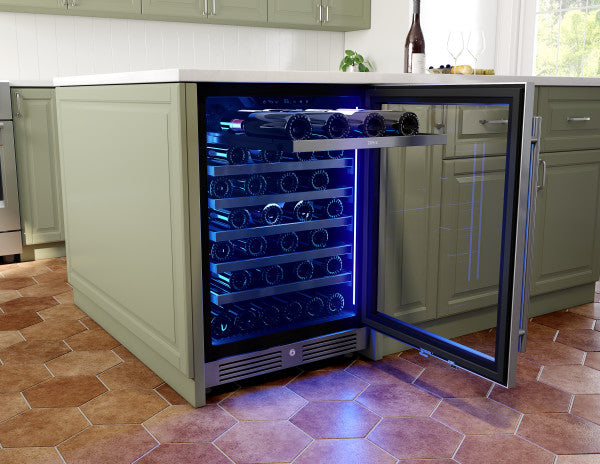

| Feature 6 | Full-Extension Black Wood Racks |
| Feature 6 Definition | Thoughtfully designed racks effortlessly glide out, giving access to every bottle, even those in the back. |
| Door Open Alarm | Yes |
| Sabbath Mode | Yes |
| Zero Clearance Door Hinge | Yes |
| Reversible Door | Yes |
| Air Filtration | Yes |
| Adjustable Racks | No |
| Energy Star Certified | Yes |
| Star-K Certified | Yes |
Warranty
| Warranty Parts / Labor | 5 Years Compressor, 2 Years Parts, 2 Years Labor |
Shipping Dimensions
| Shipping Height; IN | 44 |
| Shipping Length; IN | 28 |
| Shipping Width; IN | 31 |
| Shipping Weight; LBS | 180 |
Optional Accessories
| Optional Accessory 1 |
Presrv Pro Handle Kit x1, Stainless Steel
|
| Optional Accessory 2 |
Presrv Contemporary Handle x1, Brushed Gold
|
| Optional Accessory 3 |
Presrv Contemporary Handle x1, Matte Black
|
| Optional Accessory 4 |
Presrv™ Charcoal Filter Replacement
|
| Optional Accessory 5 |
Presrv Pro Handle x1, Brushed Gold, Compact
|
| Optional Accessory 6 |
Presrv Pro Handle x1, Matte Black, Compact
|
Documents:
| Specifications Sheet | ![]() |
| Installation Manual | ![]() |
| Warranty Document | ![]() |
| Energy Star Certification | ![]() |
| Exploded View Diagram | ![]() |
