Product Details
| Product Status | Active |
| Brand |
Zephyr |
| Model # |
PRB24C01AS-ADA
|
|
MSRP ($)
|
$1549
|
| Short Description |

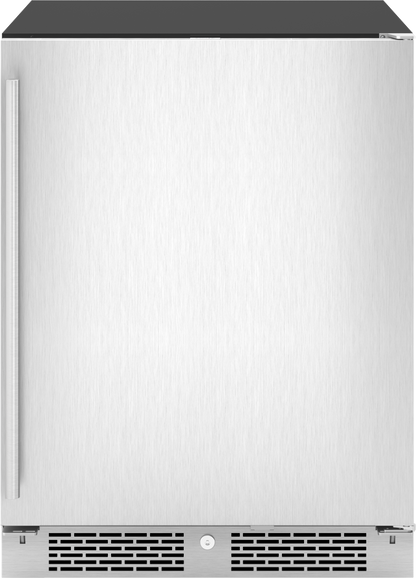

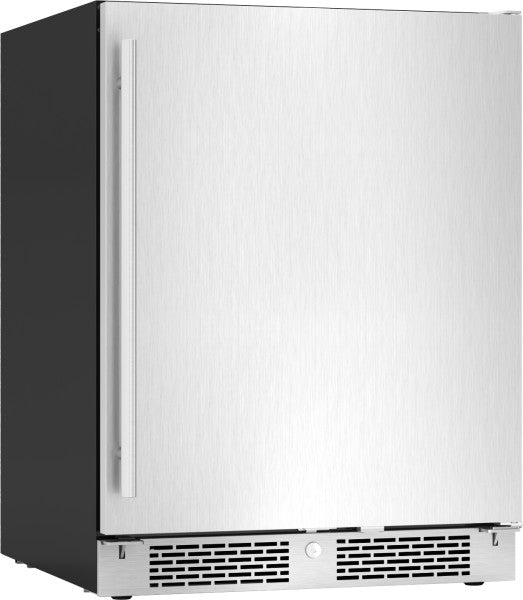

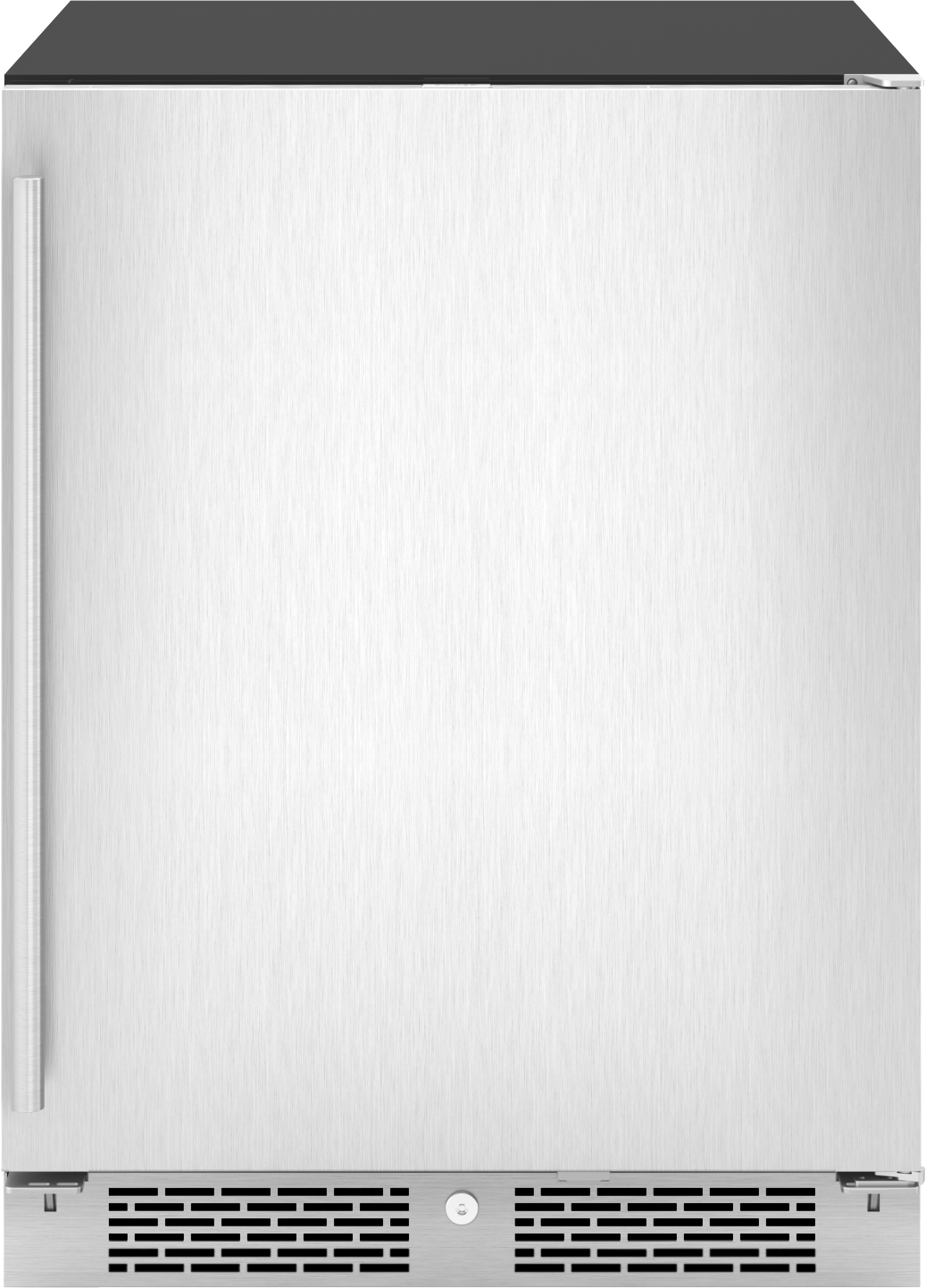

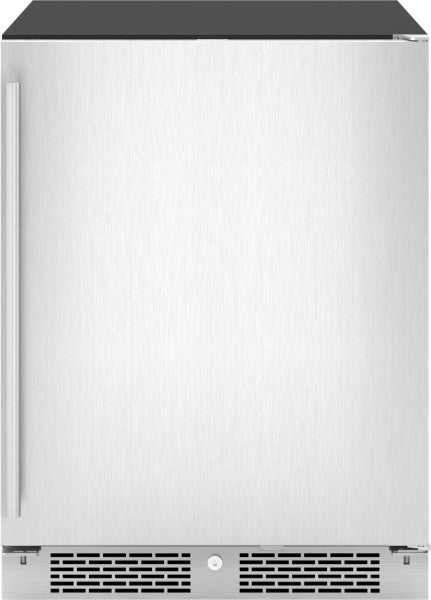

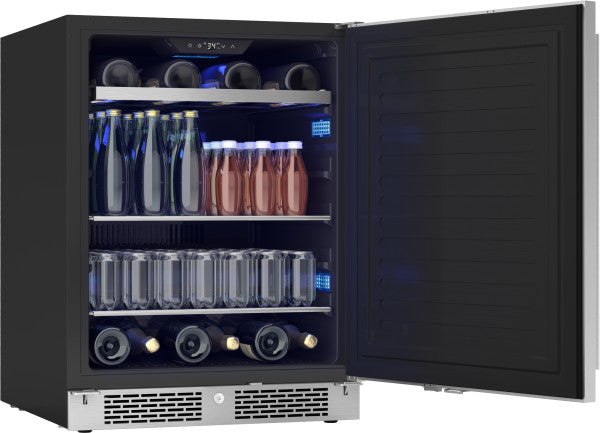

Presrv ADA Beverage Cooler, 24in Compact, SS, Reversible Door + Lock, 1 Zone
|
| Collection |
Presrv |
| UPC |
646328010101
|
| Category |
Beverage Cooler |
| Installation Type |

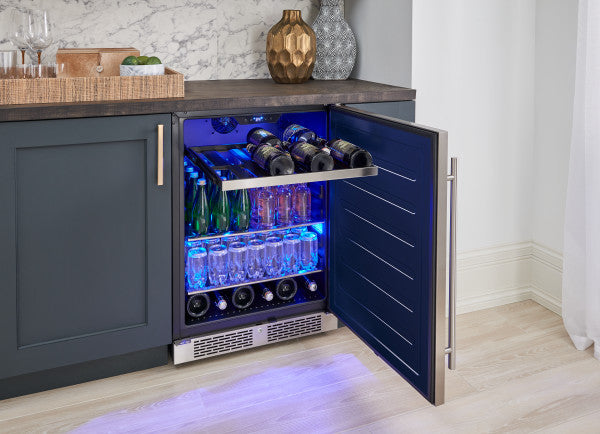

Built-In or Freestanding |
| Refrigerant Type | R600a |
| Bottle Capacity (750 ml) | 7 |
|
Can Capacity (12 oz)
|
112 |
| Cooling Zones | 1 |
| Maximum Temperature (Fahrenheit) | 50 |
| Minimum Temperature (Fahrenheit) | 34 |
| For Outdoor Use | No |
| Door Finish |
Stainless Steel |
| Cabinet Finish |
Black |
| Interior Finish |
Black |
|
Number Of Shelves
|
3 |
|
Shelf Material Type
|
Wood + Glass
|

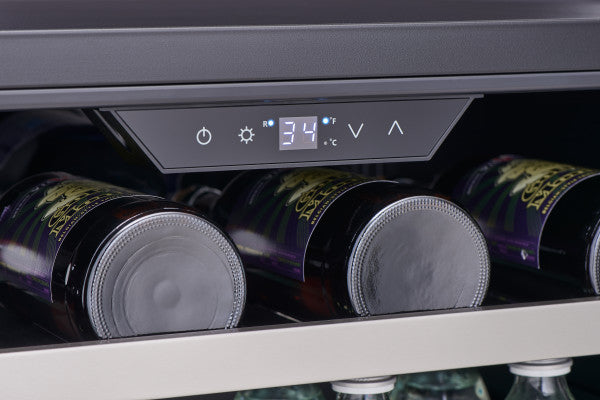

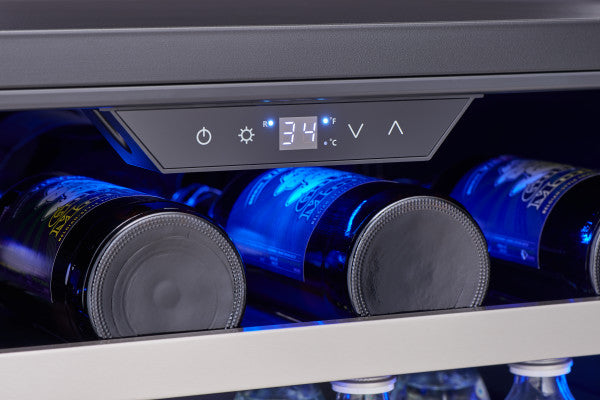

| Controls Type |
Capacitive Touch |
|
Lighting Type
|
LED |
|
Lights Quantity
|
5 |
|
Sound Level (dBA)
|
40 |
| Voltage | 115 |
|
Maximum Amperage
|
1 |
| Color |
Stainless Steel |
|
Watts Per Bulb
|
3 |
|
Lights Levels
|
1 |
|
Compatible Appliances
|
PRHAN-C001, Z0F-C004,PRHAN-C102, PRHAN-C104, 50150015, PRHAN-C004, PRHAN-C003, PRDC-C03
|
|
Country of Origin
|
China |
|
CEC Title 20 Compliant
|
Yes |
|
ADA Compliant
|
Yes |
Product Dimensions
|
Maximum Height (IN)
|
32.625
|
|
Minimum Height (IN)
|
31.625
|
|
Depth; Door Open 90 Degrees (IN)
|
46.125
|
|
Depth; Excluding Door (IN)
|
21.625
|
|
Depth; Excluding Handle (IN)
|
23.125
|
|
Depth; Including Handle (IN)
|
25.125
|
|
Net Height; IN
|
31.625
|
|
Net Width; IN
|
23.875
|
|
Nominal Width; IN
|
24 |
|
Net Depth; IN
|
23.125
|
|
Volume (Cu/Ft)
|
5.11
|
|
Interior Height In.
|
26.5
|
|
Interior Width In.
|
20.875
|
|
Weight; LBS
|
110
|
|
Cutout Depth in.
|
24.125
|
|
Cutout Height in.
|
32
|
|
Cutout Width in.
|
24 |
Features
|
Feature 1
|
PreciseTemp™
|
|
Feature 1 Definition
|
Multiple internal sensors help maintain accurate temperatures and increase overall performance.
|
|
Feature 2
|
Active Cooling Technology
|
|
Feature 2 Definition
|
An on-board computer controls an active cooling fan to provide temperature stability and even cooling.
|
|
Feature 3
|
Vibration Dampening System
|
|
Feature 3 Definition
|
Enhanced technology ensures noise and vibration is reduced to minimize wine disturbance.
|
|
Feature 4
|
Door Lock Included
|
|
Feature 4 Definition
|
A 304-grade stainless steel kickplate with built-in door lock to ensure all beverages are secure.
|
|
Feature 4
|
Dual-Pane, Low-e Argon-Filled Glass Door
|
|
Feature 4 Definition
|
Dual-pane, argon-filled glass improves insulation to minimize heat exchange and increases sound proofing soundproofing characteristics. The Low-E coating helps minimize the amount of UV and infrared light that passes through the glass door.
|
|
Feature 5
|

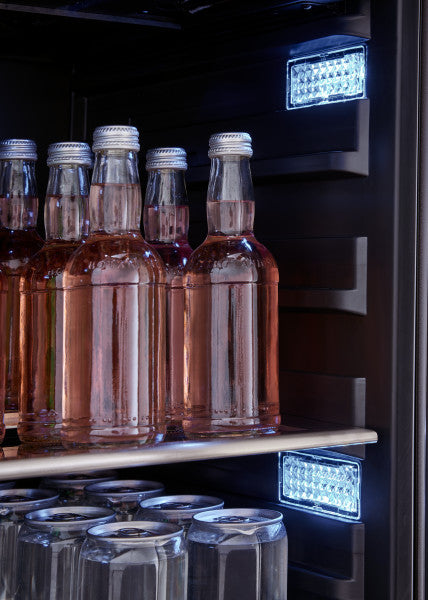

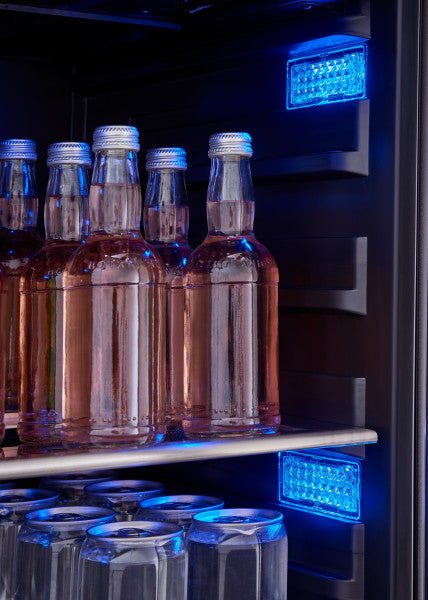

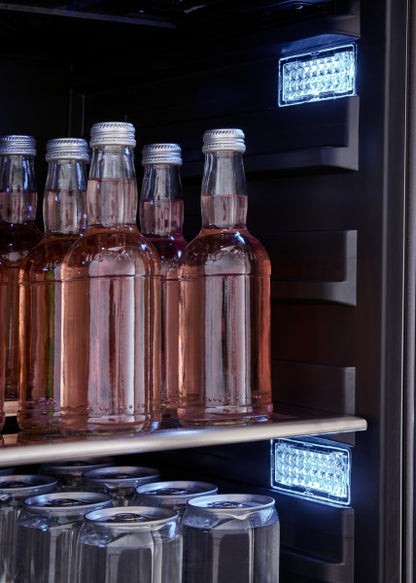

3 Color LED Lighting
|
|
Feature 5 Definition
|
LED strip lighting in Cloud White, Deep Blue and Amber.
|
|
Feature 6
|
Full-Extension Black Wood Rack
|
|
Feature 6 Definition
|
Full-Extension Black Wood Racks are thoughtfully designed to effortlessly glide out, clearing way to every bottle even those nestled in the back
|
|
Feature 7
|
ADA Compliant
|
|
Feature 7 Definition
|
Cooler height can be adjusted below 32 inches to meet ADA standards.
|
|
Door Open Alarm
|
Yes
|
|
Sabbath Mode
|
Yes |
|
Zero Clearance Door Hinge
|
Yes |
|
Reversible Door
|
Yes |
|
Air Filtration
|
Yes |
|
Adjustable Racks
|
Yes |
|
Energy Star Certified
|
Yes |
|
Star-K Certified
|
Yes |
Warranty
| Warranty Parts / Labor | 5 Years Compressor, 2 Years Parts, 2 Years Labor |
Shipping Dimensions
| Shipping Height; IN |
44
|
| Shipping Length; IN | 28 |
| Shipping Width; IN | 31 |
| Shipping Weight; LBS | 152 |
Optional Accessories
|
Optional Accessory 1
|
Presrv Pro Handle Kit x1, Stainless Steel
|
|
Optional Accessory 2
|
Presrv Contemporary Handle x1, Brushed Gold
|
|
Optional Accessory 3
|
Presrv Contemporary Handle x1, Matte Black
|
|
Optional Accessory 4
|
Presrv™ Charcoal Filter Replacement
|
|
Optional Accessory 5
|
Presrv Pro Handle x1, Brushed Gold, Compact
|
|
Optional Accessory 6
|
Presrv Pro Handle x1, Matte Black, Compact
|
|
Optional Accessory 7
|
Presrv Drink Caddy
|
Documents:
| Specifications Sheet |
![]() |
| Installation Manual | ![]() |
|
|
![]() |
![]() |
|
| Energy Star Certification | ![]() |
| Exploded View Diagram | ![]() |
