- Independently controlled dual-zones
- Industry Exclusive: Full-depth lower interior maximizes storage options
- Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
- Convection cooling system provides a quick cool down and consistent temperature
- Stainless steel interior
- Stainless steel cabinet, grille, and accents
- U-Adjust™ Interior: 17 adjustable positions
- Six removable, full-extension wine racks
- Wine racks accommodate a variety of bottle shapes and sizes and can be configured to store champagne and magnum bottles
- Digital touch pad control
- Temperature range: (upper compartment) 38°F - 65°F; (lower compartment) 38°F - 65°F (The upper temperature must be ≥ the lower temperature, maximum 20° higher)
- Adjustable bright white or blue LED lighting
- Soft close door with articulating hinges
- Volume of 5.1 cu ft holds up to 42 wine bottles (750 ml)
- Stainless steel handle (7⁄8" diameter)
- Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
- Field reversible door is shipped right-hand hinged
- Built-in or freestanding
1
/
of
3
U-Line
U-Line Wine Captain 24" Dual Zone Reversible Hinge Integrated Frame 115v
U-Line Wine Captain 24" Dual Zone Reversible Hinge Integrated Frame 115v
No reviews
Regular price
$6,049.00 USD
Regular price
Sale price
$6,049.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

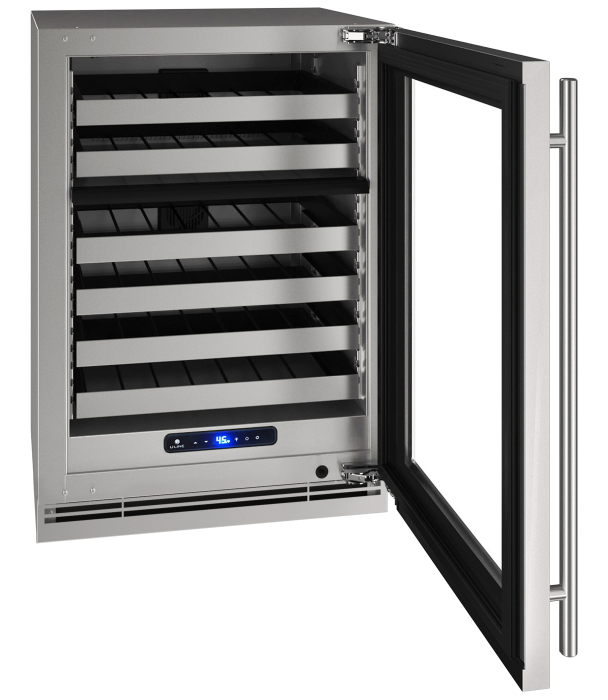

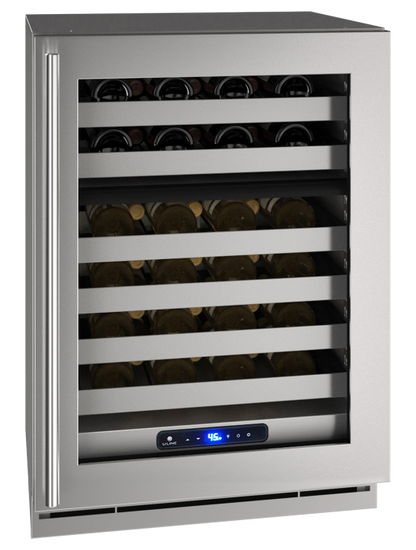

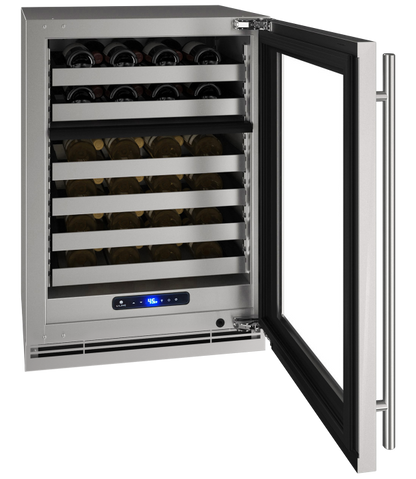

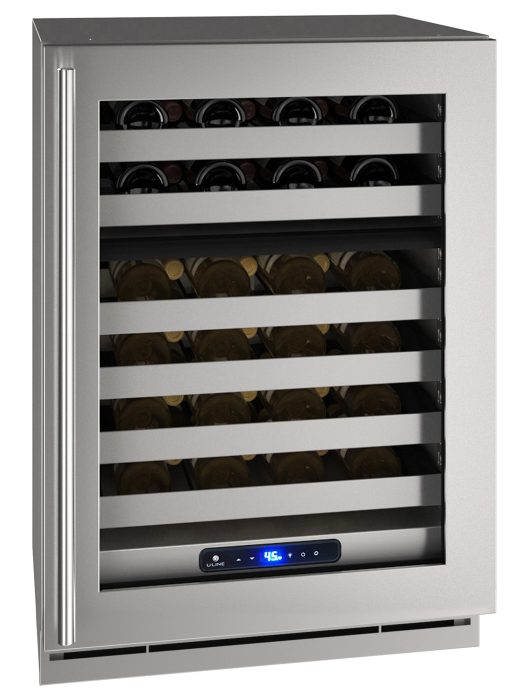

The 24" 5 Class Dual-Zone Wine Refrigerator is designed to store both red and white wines at their ideal temperatures within a single unit. Crafted with stainless steel interiors and exteriors, it employs convection cooling for rapid and stable temperature control, powered by an advanced variable speed compressor. Part of U-Line's 5 Class Collection, this model offers a unique full-depth lower interior to maximize storage, adjustable blue and white LED lighting, and U-Adjust™ racks with 17 positions for full extension. Suitable for built-in or freestanding installation, it comes in stainless steel or integrated door options that accommodate custom panels to blend seamlessly with your cabinetry.
FEATURES
SPECIFICATIONS
| Amps: Running (115 v) | 1.6 A |
|---|---|
| Capacity: Total Volume (cu ft) | 5.1 cu ft |
| Capacity: Wine Bottle (750 ml) | 42 |
| Control Type | Digital |
| Defrost Type | Automatic |
| Dimensions: Product Depth | 22 15/16" (583mm) |
| Dimensions: Product Height | 33 11/16" (855mm) |
| Dimensions: Product Width | 23 5/8" (600mm) |
| Energy Consumption: Avg. Per Year | 195 kWh |
| Refrigerant Type | R600a |
| Sabbath (Star K Certified) | Yes |
| Shipping Depth | 28.63" (727mm) |
| Shipping Height | 36" (914mm) |
| Shipping Weight | 163 lb (74 kg) |
| Shipping Width | 26.5" (673mm) |
| Temperature Range | 38°F to 65°F / 38°F to 65°F |
MODEL SUMMARY
| Model | Voltage / Hz | Finish | Door Swing | Lock | Shipping Weight |
|---|---|---|---|---|---|
| UHWD524-IG01A | 115 V/60 Hz | Integrated Frame | Field Reversible | Yes | 156 lb (71 kg) |
