U-Line

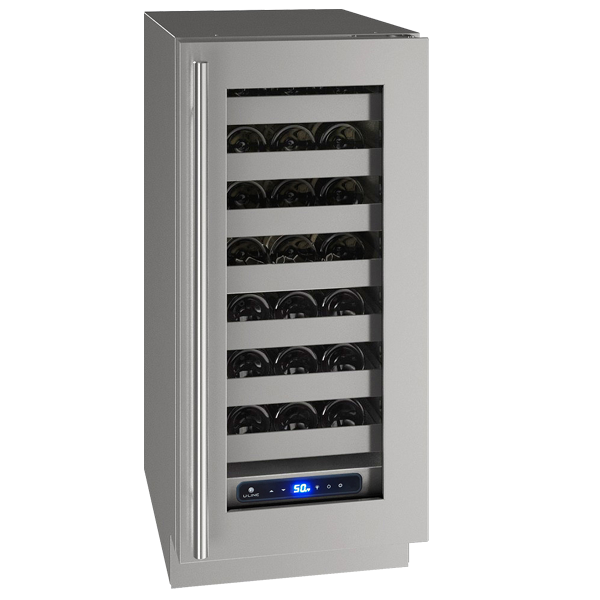

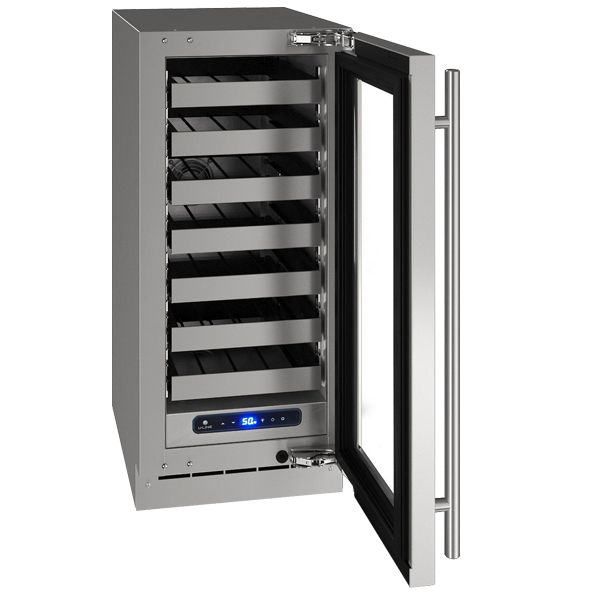

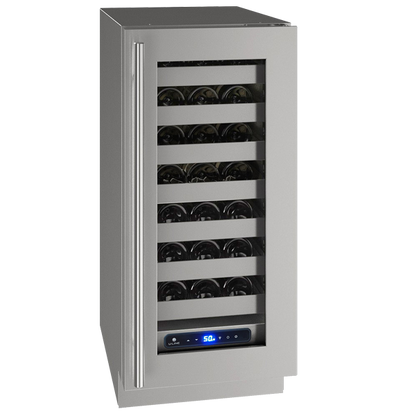

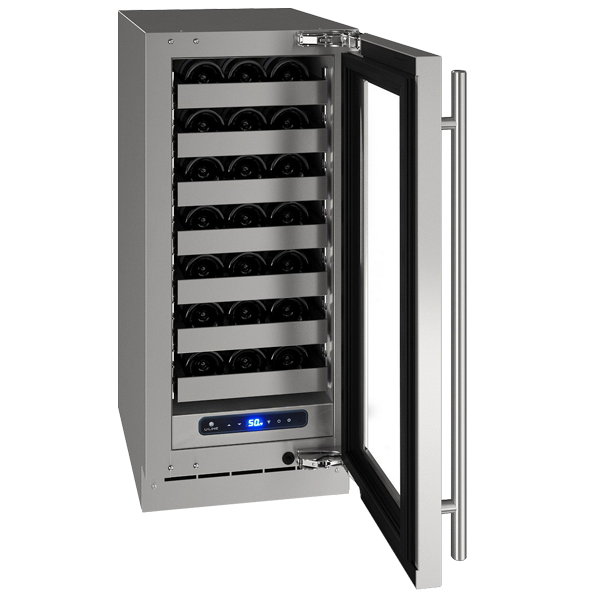

U-Line Wine Captain 15" Reversible Hinge Stainless 115v
U-Line Wine Captain 15" Reversible Hinge Stainless 115v
No reviews
Regular price
$5,059.00 USD
Regular price
Sale price
$5,059.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The 15" 5 Class Wine Refrigerator is designed for discerning wine enthusiasts. It boasts stainless steel construction inside and out, convection cooling for rapid and stable temperature control, and an advanced variable speed compressor. Part of U-Line's 5 Class Collection, it offers a unique full-depth lower interior to maximize storage, adjustable blue and white LED lighting, and U-Adjust™ 19-position full-extension wine racks. This versatile model supports both built-in and freestanding installation, with options for stainless steel or integrated door finishes that accommodate custom panels to seamlessly blend with your cabinetry.
FEATURES
- Industry Exclusive: Full-depth lower interior maximizes storage options
- Industry Leading: Variable speed compressor delivers maximum energy efficiency, faster temperature response, and quieter operation
- Convection cooling system provides a quick cool down and consistent temperature
- Stainless steel interior
- Stainless steel cabinet, grille, and accents
- U-Adjust™ Interior: 19 adjustable positions
- Seven removable, full-extension wine racks
- Wine racks accommodate a variety of bottle shapes and sizes and can be configured to store champagne and magnum bottles
- Digital touch pad control
- Temperature range: 33°F to 70°F
- Adjustable bright white or blue LED lighting
- Soft close door with articulating hinges
- Volume of 2.9 cu ft holds up to 28 wine bottles (750 ml)
- Stainless steel handle (7⁄8" diameter)
- Integrated model requires 3⁄4" custom door panel and handle (not supplied by U-Line)
- Field reversible door is shipped right-hand hinged
- Built-in or freestanding
- Four adjustable leveling legs
SPECIFICATIONS
| Amps: Running (115 v) | 1.6 A |
|---|---|
| Capacity: Total Volume (cu ft) | 2.9 cu ft |
| Capacity: Wine Bottle (750 ml) | 28 |
| Control Type | Digital |
| Defrost Type | Automatic |
| Dimensions: Product Depth | 22 15/16" (583mm) |
| Dimensions: Product Height | 34 1/8" (867mm) |
| Dimensions: Product Width | 14 15/16" (379mm) |
| Energy Consumption: Avg. Per Year | 285 kWh |
| Refrigerant Type | R600a |
| Sabbath (Star K Certified) | Yes |
| Shipping Depth | 28.63" (727mm) |
| Shipping Height | 36" (914mm) |
| Shipping Weight | 105 lb (48 kg) |
| Shipping Width | 17.13" (435mm) |
| Temperature Range | 33°F to 70°F |
MODEL SUMMARY
| Model | Voltage / Hz | Finish | Door Swing | Lock | Shipping Weight |
|---|---|---|---|---|---|
| UHWC515-SG01A | 115 V/60 Hz | Stainless Frame | Field Reversible | No | 105 lb (48 kg) |
