U-Line Wine Captain 15" Reversible Hinge Integrated Frame 115v
U-Line Wine Captain 15" Reversible Hinge Integrated Frame 115v
No reviews
Regular price
$2,749.00 USD
Regular price
Sale price
$2,749.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

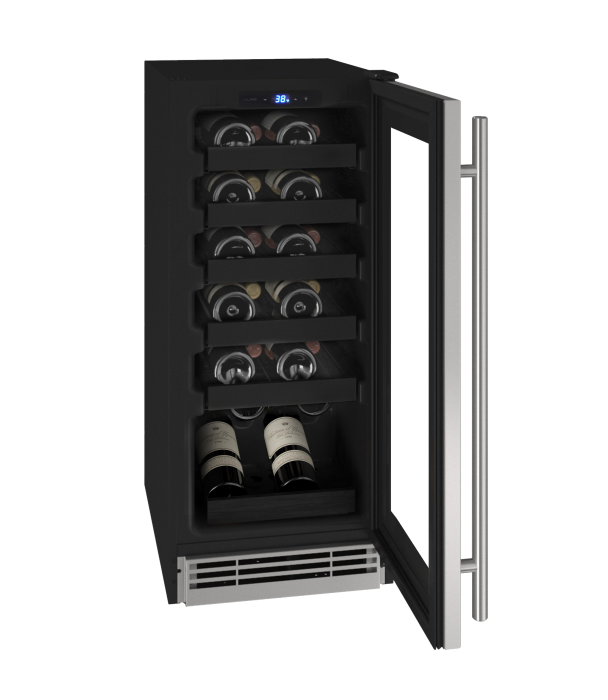

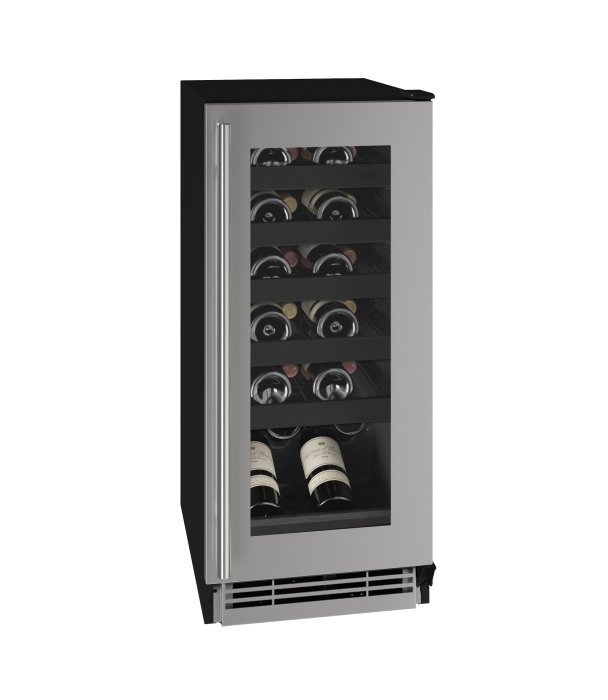

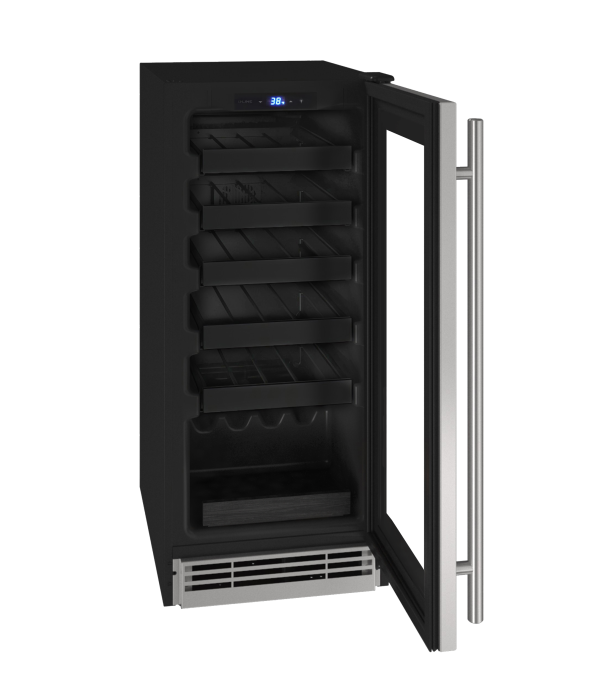

Our 15 1 Class Wine Refrigerator is ideal for wine enthusiasts. It comes in stainless steel, black, or integrated door options that allow for a custom panel to seamlessly blend with your cabinetry. Engineered to maintain the quality of your preferred wine varieties, the U-Line 1 Class fits perfectly within cabinetry or can be used freestanding.
FEATURES
- Convection cooling system provides a quick cool down and consistent temperature
- Black interior
- LowE coated, argon gas filled, dual thermopane glass door provides protection from harmful UV Light
- Stainless steel full-wrap door and handle (7/8" diameter)
- Stainless steel grille (stainless model), black metal grille (black and integrated models)
- Five, three-quarter extension, black wine racks
- Wine racks accommodate a variety of bottle shapes and sizes; the fourth and fifth racks allow for larger diameter wine and champagne bottles
- Digital touch pad control
- Temperature range: 34°F to 60°F
- Bright white LED lighting
- Volume of 3 cu ft holds up to 24 wine bottles (750 ml)
- Field reversible door is shipped right-hand hinged
- Built-in or freestanding
- Four adjustable leveling legs
SPECIFICATIONS
| Amps: Running (115 v) | 1.2 A |
|---|---|
| Capacity: Total Volume (cu ft) | 3 cu ft |
| Capacity: Wine Bottle (750 ml) | 24 |
| Control Type | Digital |
| Defrost Type | Automatic |
| Dimensions: Product Depth | 22 1/4" (562mm) |
| Dimensions: Product Height | 34 1/8" (867mm) |
| Dimensions: Product Width | 14 15/16" (379mm) |
| Energy Consumption: Avg. Per Year | 285 kWh |
| Refrigerant Type | R600a |
| Sabbath (Star K Certified) | Yes |
| Shipping Depth | 28.5" (724mm) |
| Shipping Height | 36" (914mm) |
| Shipping Weight | 102 lb (46 kg) |
| Shipping Width | 17.13" (435mm) |
| Temperature Range | 34°F to 60°F |
MODEL SUMMARY
| Model | Voltage / Hz | Finish | Shipping Weight | |
|---|---|---|---|---|
| UHWC115-IG01A | 115 V/60 Hz | Integrated Frame | 99 lb (45 kg) |
DOWNLOADS:
- CAD-2D (DWG)
- CAD-3D (DWG)
- CAD-3D Studio Max (3DS)
- CAD-3D Studio Max (MAX)
- CAD-ArchiCAD (GSM)
- CAD-AutoCAD (DXF)
- CAD-REVIT (RFA)
- CAD-SketchUp (SKP)
- CAD-Wavefront 3D (OBJ)
- Compliance
- Current Product Warranty
- Energuide (Canada)
- Energy Guide (US)
- Quick Start Guide
- Spec Sheet
- User Guide & Service Manual
- Product Warranty
