Summit Appliance
Summit Appliance Ice & Water Dispenser
Summit Appliance Ice & Water Dispenser
Couldn't load pickup availability

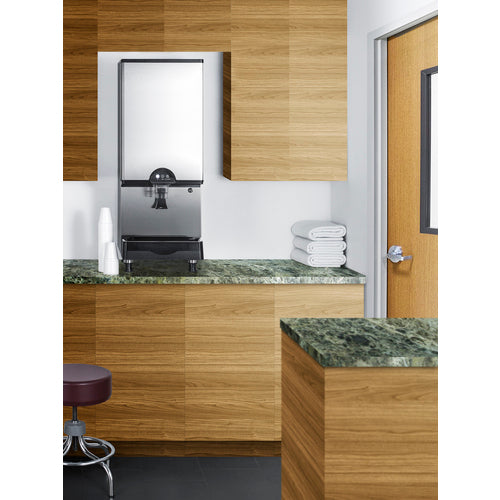

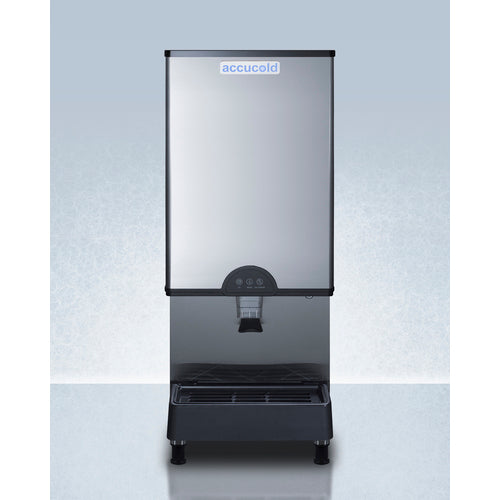

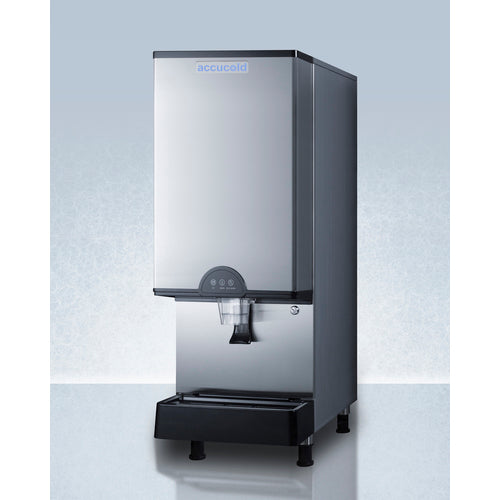

Experience ultimate convenience with Summit Appliance Ice & Water Dispenser. Get up to 378 pounds of ice per day with three dispenser functions: ice, water, or ice+water. Its slim 16.5" width and 20" length make it a perfect fit on standard counters. Enjoy easy access and control with the illuminated display!
The Summit Appliance Ice & Water Dispenser combines adjustable legs for flexibility, sleek stainless steel finish, and easy cleaning with removable tray and sealed back. UV lighting in dispenser makes for purified drinks. Must be placed near a drain (sorry, no floating units here!) and is top vented.
Efficiently dispense crisp ice and refreshing water with the Summit Appliance Ice & Water Dispenser. Perfect for hospitals, break rooms, or any setting in need of an attractive and high-capacity unit. Don't forget to add the recommended water filtration system for optimal performance. Browse our full Accucold line for more options!
FEATURES
ETL-S listed to NSF-12 commercial standards
Makes it the perfect fit for countertops and similar surfaces, with a 20" depth from the rear to front legs
Adjustable legs for added convenience
Large capacity productivity capable of 378 lbs. of ice in a day cycle
304 grade stainless steel front, with a stainless steel look on the rest of the exterior to suit any setting
Produces nugget ice which is slow-melting and easy to chew
Dispenser includes built-in UV lighting, as studies have shown this to be an effective tool for eliminating the growth of bacteria
Save-spacing back allows unit to be flush with the wall, as well as makes cleaning the exterior unit more efficient
Provides an energy efficient, water-saving method to keep the unit cool
Provides easy, quick access to water and power supplies
Cost-efficient drainage system

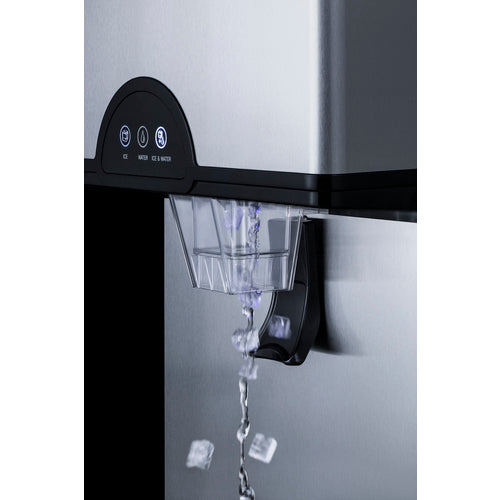

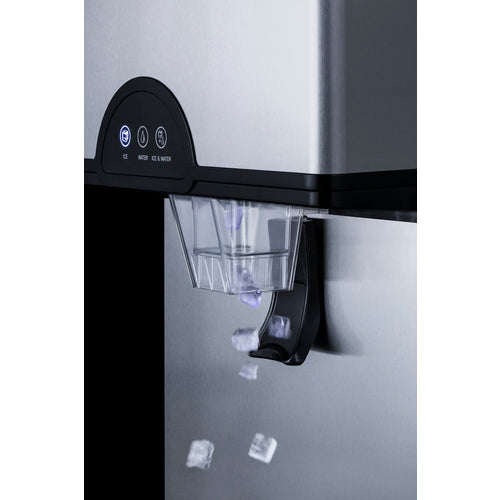

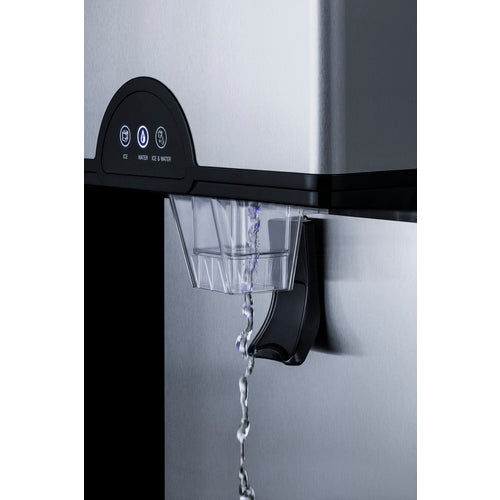

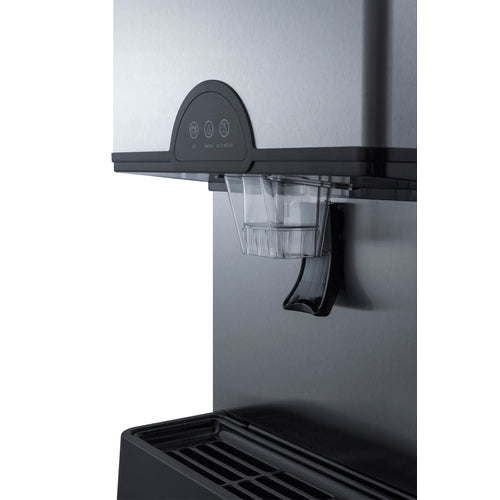

Illuminated display panel for easy use between dispenser functions
Can be removed for fast and efficient cleaning.
Stores up to 30 pounds of nugget ice a day
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 43.5" (110 cm) |
Width | 16.5" (42 cm) |
Depth | 26.5" (67 cm) |
Door | Stainless Steel |
Cabinet | Stainless Look |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Sanitation | ETL-S |
Amps | 15.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 203.0 lbs. (92 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101086187 |
Icemaker
|
|
Height Adjustable | Yes |
Drain Required | Yes |
Daily Ice Production | 378.0 lbs. (171 kg) |
Ice Storage Capacity | 30.0 lbs. (14 kg) |
Ice Shape | Nugget |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R404a |
Refrigerant Amount | 14.11 oz. |
High Side PSI | 375.0 |
Low Side PSI | 193.0 |
Level Legs | 4 |
DOWNLOADS
BROCHURE w/ DRAWINGS | |
TECHNICAL DRAWING (.dwg) | AIWD450__1_.dwg |
USE & CARE | |
ASSEMBLY DRAWING | |
REVIT MODEL |
