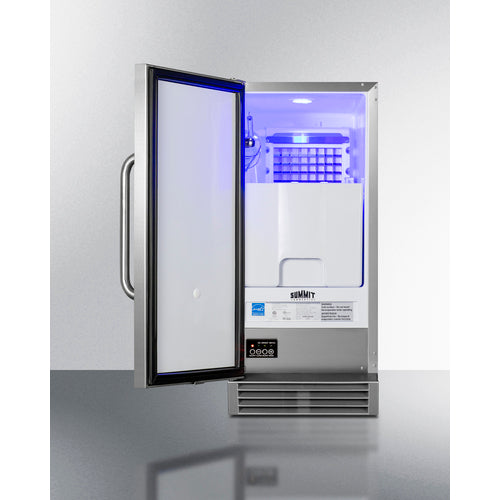

Keep the party going with Summit's Built-In Outdoor 50 lb. Clear Icemaker! Featuring a durable stainless steel exterior, this ENERGY STAR certified icemaker is perfect for outdoor kitchen spaces. With a reversible door and front-breathing design, it's versatile and built to last. So chill out and enjoy some clear ice, courtesy of Summit Appliance!
Featuring a touch control panel and indicator lights, the Summit Appliance Built-In Outdoor icemaker makes producing clear, cube-shaped ice a breeze. With an adjustable bin capacity and included stainless steel scoop, it's perfect for outdoor gatherings. Plus, automatic defrost and an internal pump make for easy maintenance.
Get ready to chill with the Summit Appliance Built-In Outdoor Icemaker! This 15" wide unit is perfect for foodservice settings and can be installed in any kitchen or wet bar. Plus, it's ETL-S listed to NSF-12 for added safety. Want an ADA compliant version? Check out the BIM47OSADA!
FEATURES
ETL-S listed to NSF-12 commercial standards
Durable stainless steel construction for safe installation in outdoor spaces
Make the best use of space by installing your icemaker under the counter
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
Efficient performance saves on energy use and costs
Internal pump affords more flexibility in placing the unit
Reduced maintenance with auto defrost system
Produces 7/8" x 7/8" x 7/8" clear ice cubes
Provides easy operation of the unit with indicator lights for each stage of the production process
User-reversible door swing for flexible placement
A curved handle in brushed stainless steel offers an easy grip
Ice stays solid longer in this cold-protected bin
Lighting in a soft blue hue for easy viewing of the interior
Interior wall includes brackets to hang for easy storage
Allows the unit to be used freestanding
Space saving design for easier cleanability
Four leveling legs help to keep the unit level on uneven surfaces
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.0" (84 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 36.75" (93 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067742 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM47OS.pdf
|
| TECHNICAL DRAWING (.dwg) | BIM44G_BIM44GCSS_BIM47OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING | |
| TECHNICAL DRAWING (.dwg) | |
| REVIT MODEL |
