Experience the ultimate convenience with the SUMMIT BIM44G,BIM44GCSS Built-In Icemaker. No more manual defrosting - this compact 15 inch icemaker features automatic defrost for hassle-free maintenance. Its front-breathing cooling system and finished sides make it perfect for built-in or freestanding use. Plus, the internal pump adds an extra level of ease. Say goodbye to cramped spaces and hello to easy ice making!

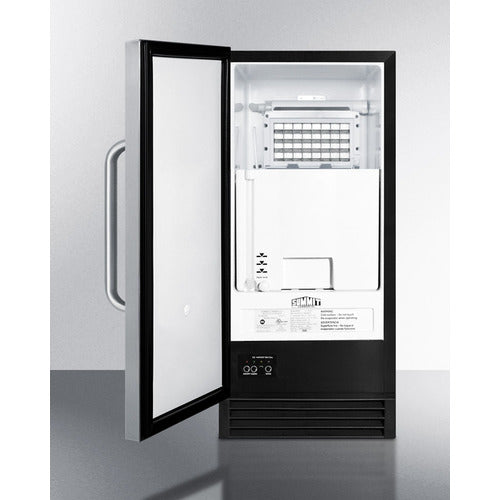

This Built-In 50 lb. Clear Indoor Icemaker is the ultimate solution for all your ice-making needs! It can produce up to 50 pounds of crystal clear ice, with a temporary storage capacity of 25 pounds. The ice comes in sheets and can be easily scooped and broken into cubes. Plus, it features a sleek jet black cabinet with a reversible stainless steel door and a stylish curved towel bar handle.
This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.
FEATURES
Efficient performance for commercial use
NSF listed for use in commercial establishments
Internal pump allows more flexibility in placing the unit
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user
Reduced maintenance with auto defrost system
Make the best use of space by installing your icemaker under the counter
Professional styling with lasting durability
A curved handle in brushed stainless steel offers an easy grip
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Ice stays solid longer in this cold-protected bin
Included for your convenience
Allows the icemaker to be used as a freestanding model
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.0" (84 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | NSF |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101012261 761101067759 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| Latch - Factory-installed door latch requires manual release to open unit |
| Lock |
| L-SideLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM44G.pdf BIM44GCSS.pdf |
| TECHNICAL DRAWING (.dwg) | BIM44G_BIM44GCSS_BIM47OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING | |
| REVIT MODEL |
