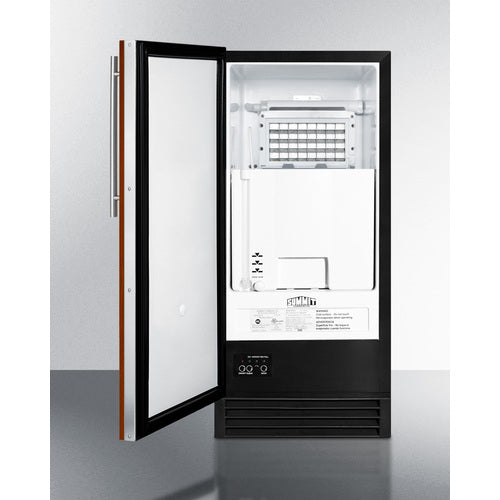

Get ready to chill with the Summit Appliance Built-In 50 lb. Clear Icemaker. This icemaker is perfect for commercial use and is ENERGY STAR certified for maximum efficiency. With a 32 1/2" height, it is also ADA compliant. Keep drinks cold and customers happy with this must-have appliance. (Panel not included)
et the perfect ice every time with the Summit Appliance Built-In Clear Icemaker. With auto defrost and a wide design, it's ideal for any kitchen or wet bar. And with an integrated stainless steel frame, it seamlessly blends into your cabinetry. Just add your own handles and you're all set! (Panel not included.)
Never stress about ice again with the Summit Appliance Built-In Icemaker. With automatic defrost and an internal pump, maintenance is a breeze. Enjoy up to 50 lbs of clear, cube-shaped ice that can be easily scooped from the adjustable bin. Use it built-in or freestanding, the choice is yours! (Panel Not Included)
FEATURES
Efficient performance for commercial use
NSF listed for use in commercial establishments
Make the best use of space by installing your appliance under the counter
Internal pump allows more flexibility in placing the unit

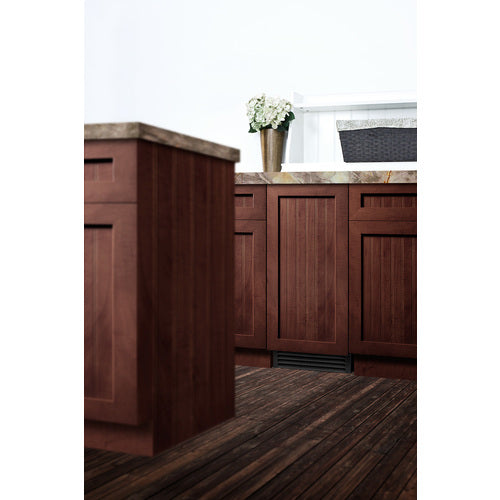

Stainless steel door frame accepts full overlay panels to match adjacent cabinetry (panel size: 27 7/8" H x14 5/8" W and at least 3/4" thick; maximum weight: 10 lbs.)
Reduced maintenance with auto defrost system
Ice stays frozen longer inside this cold-protected bin
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.0" (84 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.5" (60 cm) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | NSF |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101027128 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| RHD - Right hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM44GIF.pdf |
| REVIT MODEL | QF_Summit_BIM44GIF_Ice_Maker.rfa |
| USE & CARE | |
| USE & CARE |
