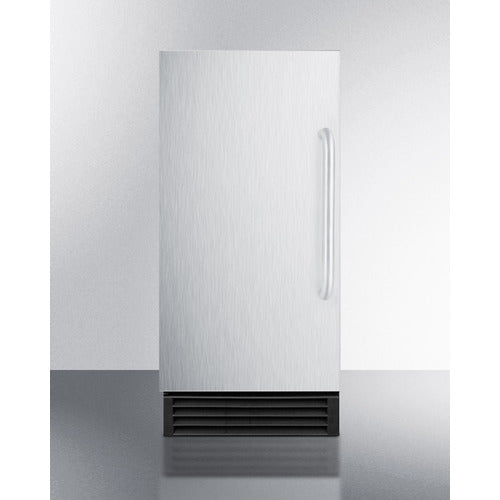

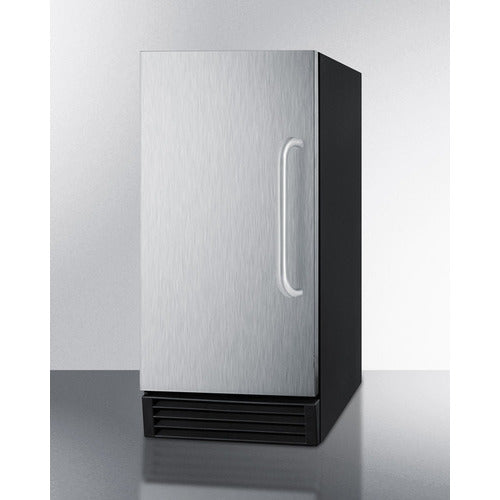

Effortlessly cool and convenient, the Summit Appliance Built-In 50 lb. Clear Icemaker is designed for use under ADA compliant counters. With automatic defrost, maintenance is a breeze while the front-breathing cooling system and fully finished sides allow for built-in or freestanding use. The internal pump adds versatility to installation. (Note: the hinge cover reaches 32 9/16", so plan for extra space.)
Introducing the Summit Appliance Built-In 50 lb. Clear Icemaker, ADA Compliant. This powerful machine can produce up to 50 pounds of clear, cube-shaped ice at a time, with a temporary storage capacity of 25 pounds. The ice is easily broken into cubes using the included scoop. Its unique features, such as a reversible door and sleek design, make it the perfect addition to any space.
Get the perfect chill with the Summit Appliance Built-In 50 lb. Clear Icemaker, ADA Compliant. With NSF clearance for commercial use and ENERGY STAR certification, enjoy crystal clear ice at home or in your business. Chilling couldn't get any cooler!
FEATURES
32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")
Efficient performance for commercial use
NSF listed for use in commercial establishments
Internal pump allows more flexibility in placing the unit
Simplify appliance care by letting your icemaker defrost itself
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

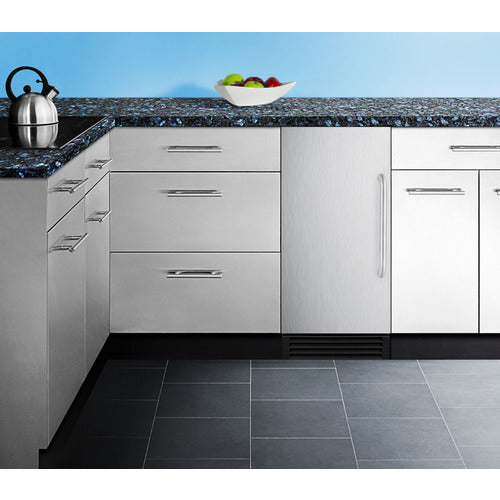

Make the best use of space by installing your icemaker under the counter
Professional styling with lasting durability
A curved handle in brushed stainless steel offers an easy grip
Allows the icemaker to be used as a freestanding model

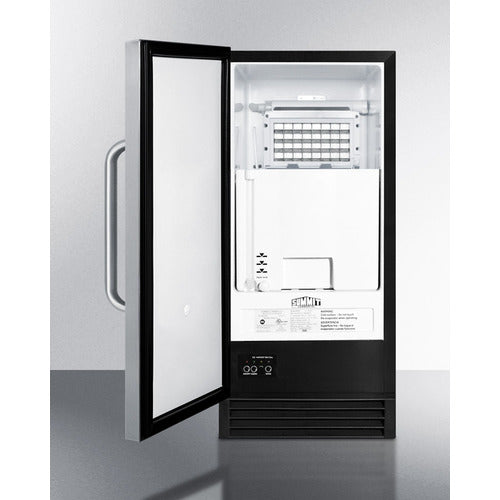

Ice stays solid longer in this cold-protected bin
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop
Included for your convenience
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.38" (82 cm) |
| Height to Hinge Cap | 32.56" (83 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 36.75" (93 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | NSF |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101021959 761101067773 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
| Lock |
| L-SideLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM44GADA.pdf BIM44GCSSADA.pdf |
| TECHNICAL DRAWING (.dwg) | BIM44GADA_BIM44GCSSADA_BIM47OSADA.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING | |
| REVIT MODEL |
