Get an endless supply of clear ice with Summit's Built-In icemaker! The durable stainless steel exterior makes it perfect for any kitchen, and it's ENERGY STAR certified for commercial use. With a reversible door and front-breathing design for built-in or freestanding use, it's a convenient and stylish addition to any space.
Introducing the Summit Appliance Built-In 50 lb. Clear Icemaker - a must-have for any ice lover! With a touch control panel, indicator lights, and adjustable bin capacity, producing and storing up to 50 lbs. of clear cube-shaped ice has never been easier. Plus, enjoy the convenience of an internal pump, stainless steel scoop, and automatic defrost operation. Keep it cool with this sleek and efficient unit!
With a 15" width and ETL-S listing, the Summit Appliance Built-In Icemaker is ideal for foodservice or home use. It's also available in ADA compliant and panel-ready versions for added convenience and versatility. Keep the ice coming with ease and style.
FEATURES
ETL-S listed to NSF-12 commercial standards

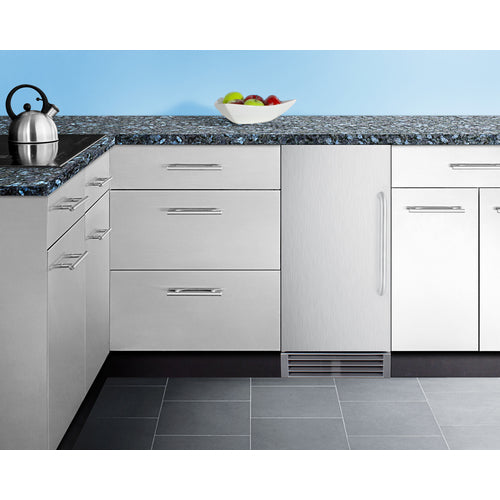

Make the best use of space by installing your icemaker under the counter
Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. per day (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)
Efficient performance saves on energy use and costs
Internal pump affords more flexibility in placing the unit
Reduced maintenance with auto defrost system
Produces 7/8" x 7/8" x 7/8" clear ice cubes

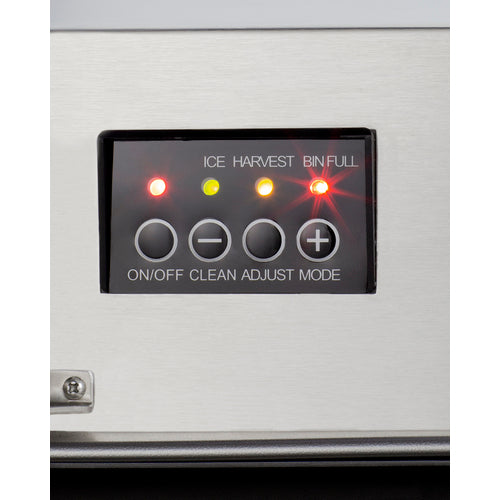

Provides easy operation of the unit with indicator lights for each stage of the production process
User-reversible door swing for flexible placement
A curved handle in brushed stainless steel offers an easy grip
Ice stays solid longer in this cold-protected bin
Lighting in a soft blue hue for easy viewing of the interior
Interior wall includes brackets to hang for easy storage
Allows the unit to be used freestanding
Space saving design for easier cleanability
Four leveling legs help to keep the unit level on uneven surfaces
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.0" (84 cm) |
| Width | 14.5" (37 cm) |
| Depth | 23.25" (59 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 36.75" (93 cm) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 4.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067759 |
|
Icemaker
|
|
| Door Swing | LHD |
| Reversible | Yes |
| Drain Required | Yes |
| Daily Ice Production | 50.0 lbs. (23 kg) |
| Ice Storage Capacity | 25.0 lbs. (11 kg) |
| Ice Shape | Cube |
| Size of Cube | 7/8" x 7/8" x 7/8" |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 3.88 oz. |
| High Side PSI | 350.0 |
| Low Side PSI | 130.0 |
| Interior Height | 18.5" (47 cm) |
| Interior Width | 12.0" (30 cm) |
| Interior Depth | 16.0" (41 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior | |
| RHD - Right hand door swing | Latch - Factory-installed door latch requires manual release to open unit |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | BIM44G_BIM44GCSS_BIM47OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
