Summit's range of built-in undercounter wine cellars offers ADA compliant options for a customized appearance suitable for any area.

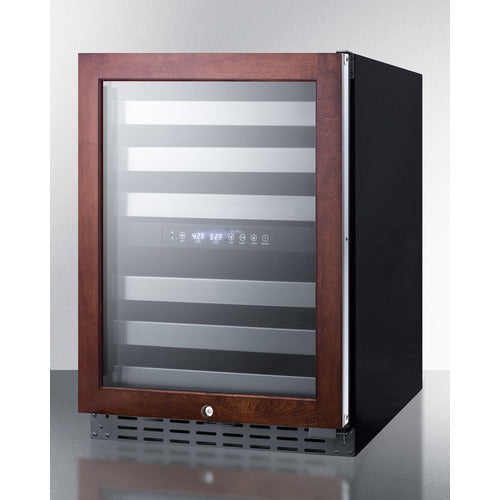

The ALWC532PNR is a 24-inch wide dual zone wine cellar, featuring a front-breathing design for built-in or freestanding installation. With its black cabinet and double pane tempered glass door with stainless steel trim, it can easily blend in with your existing cabinetry. Plus, the factory-installed lock and stainless steel kickplate add extra security and a polished look. The unit stands just under 32 inches tall and is ADA compliant for fitting under lower counters. Choose the right hand door swing or add option "LHD" for the door to open from the other side.

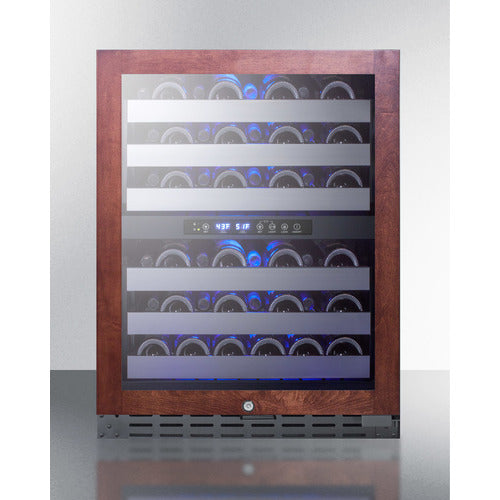

The ALWC532PNR is specifically designed to hold up to 46 bottles of standard Bordeaux style, or a mix of 30 Bordeaux and 16 wider Burgundy bottles. Its digital control panel allows for precise temperature management in the upper chamber, with a range of 41 to 50ºF for white wine. The lower zone is ideal for storing red wine between 50 and 64ºF. Smoothly moving out on ball-bearing glides, the six full-extension black wire shelves with stainless steel front trim make loading and unloading a breeze. Both compartments also feature recessed LED lighting in a gentle blue hue, providing an elegant and energy-efficient presentation.

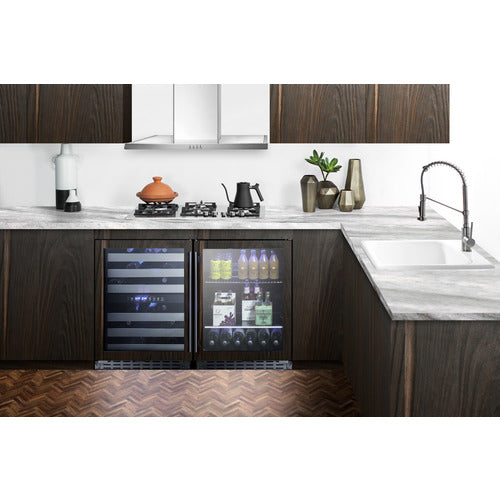

The ALWC532PNR boasts advanced user features and a versatile design, making it an ideal choice for storing wine in modern style within an ADA compliant setting. For a matching and ADA compliant set, this unit can be paired with the ALBV24PNR beverage cooler.
FEATURES
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
Sized just under 32" high for an easy fit under lower ADA compliant counters
Front-breathing design allows this unit to be installed under counters

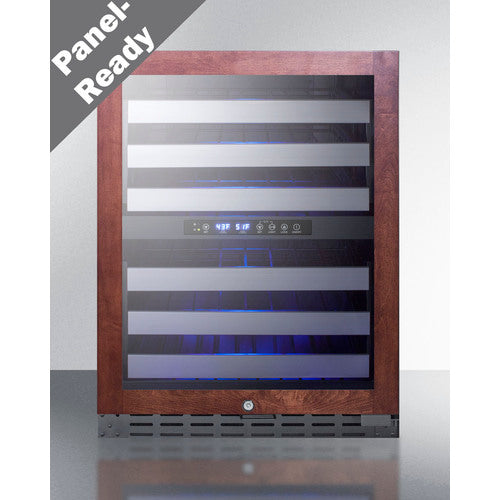

Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

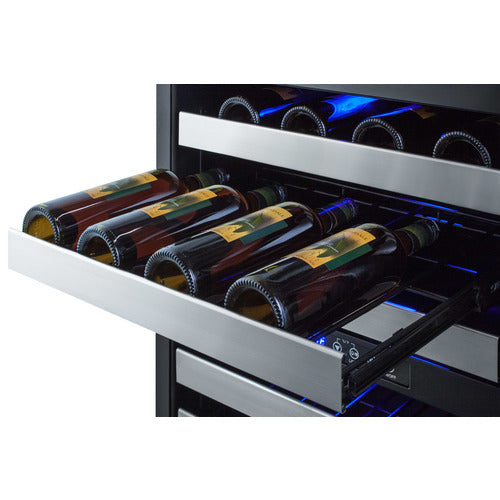

Shelves move smoothly on ball-bearing glides for easier loading and unloading
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

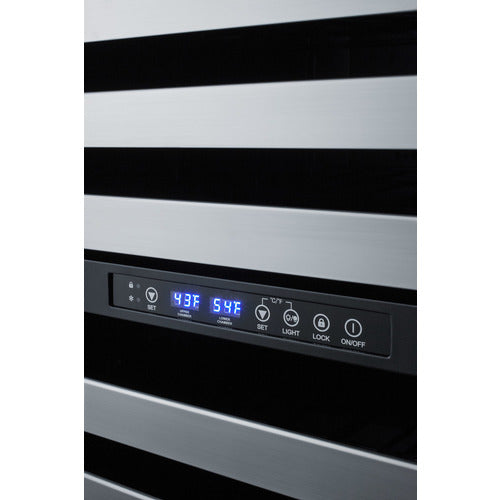

Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Provides a full display of the interior, with two levels of glass for added protection
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included
Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
Allows the unit to be used freestanding
Pairs perfectly with the ALBV2466PNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.63" (80 cm) |
| Width | 23.5" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065533 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
| Exterior |
| LHD - Left-hand door swing |
| Door |
| T3 Door Tint | T1S Door Tint |
| T4 Door Tint | T2 Door Tint |
| T1 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | ALWC532PNR.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| SUPPORT |
