Summit Appliance
Summit Appliance 7 Bottle 6" Wide Built-In Wine Cellar (Panel Not Included)
Summit Appliance 7 Bottle 6" Wide Built-In Wine Cellar (Panel Not Included)
Couldn't load pickup availability

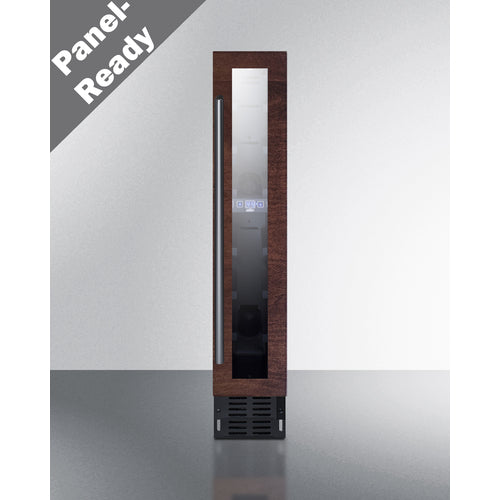

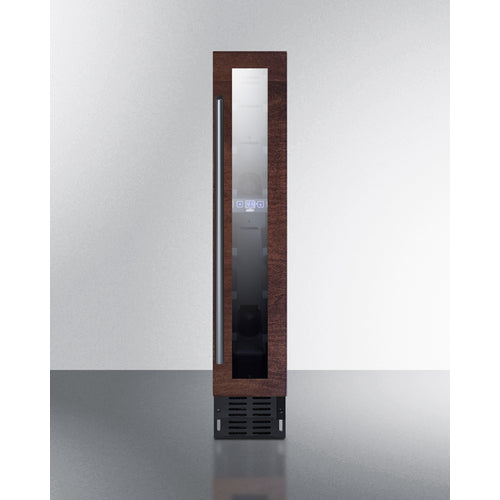

Effortlessly transform any narrow undercounter area into a complete wine storage solution with Summit's 6-inch wide SWC007H34PNR.
Built for built-in use, the SWC007H34PNRLHD boasts a front-breathing compressor-based cooling system, guaranteeing optimal wine temperature. The tempered glass door features specialized hinges, allowing for a custom panel to be installed over the frame, creating seamless integration with surrounding cabinetry (panel dimensions: 28 1/8" H x 5 5/8" W at 3/4" thickness). This unit has a right angle plug and sealed rear for maximum space efficiency. For a model with a right-hand door swing, please see SWC007H34PNR.
The Summit Appliance SWC007H34PNRLHD includes a digital thermostat with simple touch controls and a display that can show temperature in either Celsius or Fahrenheit. The temperature can be adjusted between 41 and 72ºF to accommodate red or white wine. With seven slots, this wine cellar provides ample storage space. The floor is slightly angled, making it perfect for keeping an open bottle secure. It also features an open door and high temperature alarm for added security. The Sabbath mode option allows for the disabling of specific electrical functions during periods of observance. The commercial grade compressor operates quietly, keeping noise levels under 34 dB.

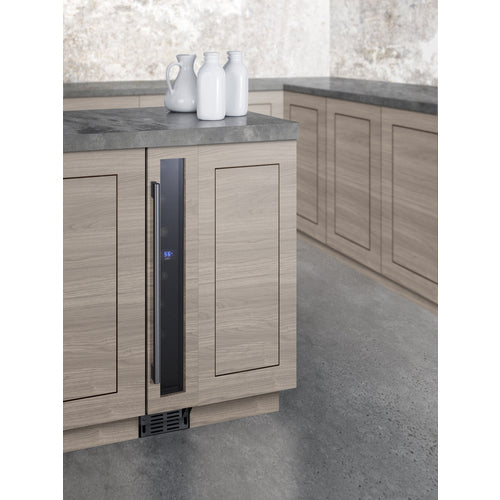

This wine cellar, the SWC007H34PNRLHD, features a unique size and customizable design that allows for versatile installation in various spaces including kitchens, home bars, offices, walk-in closets, and more, providing reliable storage for your wine.
FEATURES
Single zone wine cellar sized for built-in installation in 6" wide spaces
Specialized hinges allow you to install an overlay panel over the door trim to create a custom look that matches adjacent cabinetry (panel size: 28 1/8" H x 5 5/8" W at 3/4" thickness)
Uniquely slim fit lets you transform extra cabinet space into a 7-bottle wine storage center
Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Leveling legs can be adjusted to raise the height up to 34.25" for an appropriate fit under standard counters
Double pane tempered glass provides a full display of your collection

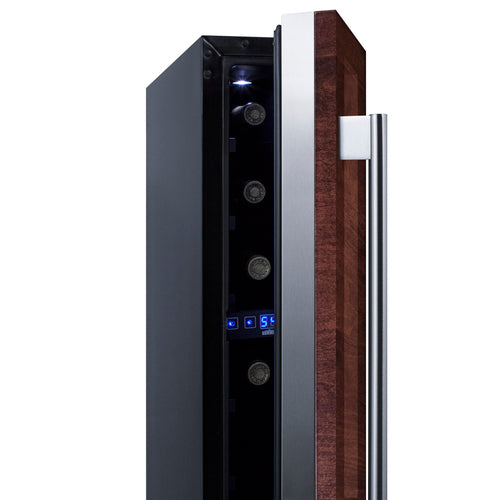

Electronic controls for precise temperature management

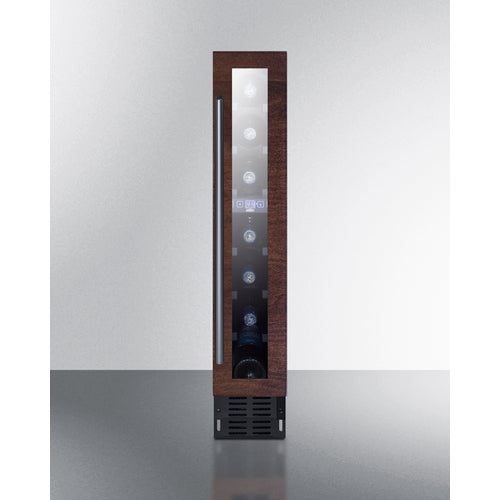

Interior can hold up to 7 Bordeaux style bottles. Most wider Burgundy style bottles fit as well
The floor slight is slightly angled, allowing you store one bottle that has been uncorked at a gentle tilt
Temperature readout can be shown in Celsius or Fahrenheit
Provides an attractive and efficient bottle display
Reduced maintenance and steady temperature performance
Interior fan helps to ensure the temperature is evenly distributed
Audible alarm will sound if the door is left ajar for over 60 seconds
If the interior temperature becomes too warm, an audible alarm will sound and the temperature display will flash until the proper temperature is restored
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain last temperature settings in the event of a power failure
Flat design offers added space savings by requiring no extra depth to plug the unit in
Space saving design with easier cleanability
Includes an extra kickplate to cover up the leveling legs if the unit's height is raised
Runs at under 34 dB for a quiet performance in any setting
Compressor-based operation to ensure reliable temperature performance
For this unit with the door opening from the other side, see model SWC007H34PNRLHD
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 5.88" (15 cm) |
| Depth | 20.75" (53 cm) |
| Depth with Handle | 22.38" (57 cm) |
| Depth with door at 90° | 25.5" (65 cm) |
| Bottles | 7 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 40.0 lbs. (18 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101146775 761101146782 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Height Adjustable | Yes |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.57 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.75" (65 cm) |
| Interior Width 1 | 3.5" (9 cm) |
| Interior Depth 1 | 14.25" (36 cm) |
| Compressor Step Width | 3.5" (9 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
| Sound Level | 33.8 dB |
| Exterior |
| LHD - Left-hand door swing |
| Door |
| T3F Door Tint | T1SF Door Tint |
| T4F Door Tint | T2F Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| DRAWING | |
| SUPPORT |
