SUMMIT's line of undercounter wine cellars provides superior storage that is both user-friendly and elegantly stylish.

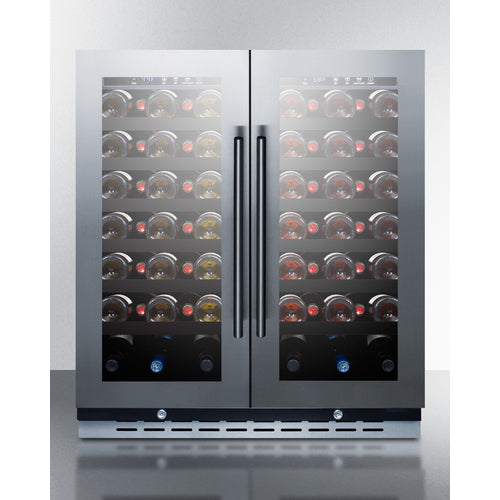

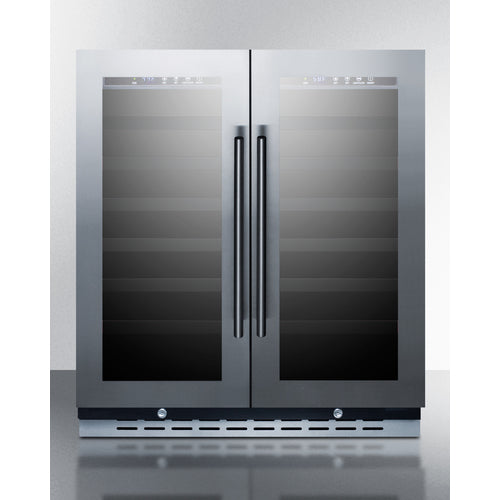

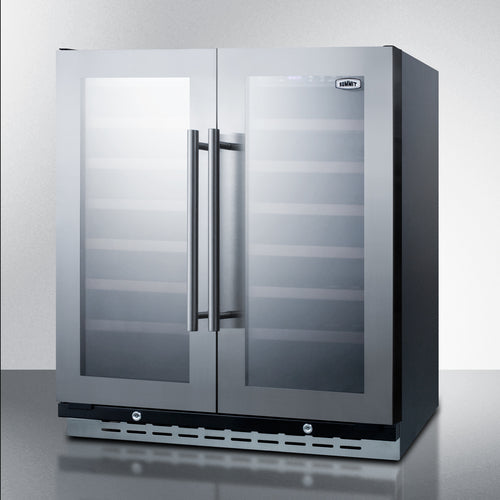

The SWC3066B is a 30" wide wine cellar that can be either built-in or freestanding. It features two seamless stainless steel trimmed glass doors with a unique French door swing, both equipped with factory installed locks and professional handles. The sleek black cabinet provides a fully finished look.
This wine cellar offers two separate zones with independent digital thermostats, allowing for simultaneous chilling of white and sparkling wine in one section while reds are kept under warmer temperatures in the other. Each zone includes six wooden shelves and slotted floors, providing a maximum storage capacity of 66 standard 750ml Bordeaux bottles. Alternatively, the unit can fit up to 46 wider "Burgundy" style bottles and 10 Bordeaux bottles, or six champagne bottles on the slotted floor. Recessed LED lighting adds a touch of elegance to showcase your collection.
The SUMMIT SWC3066B boasts a sleek appearance and innovative features, making it a standout choice for any household. For an alternative model specifically built for storing both wine and beverages, consider the SWBV3067B.
FEATURES
ETL-S listed to ANSI-NSF Standard 7

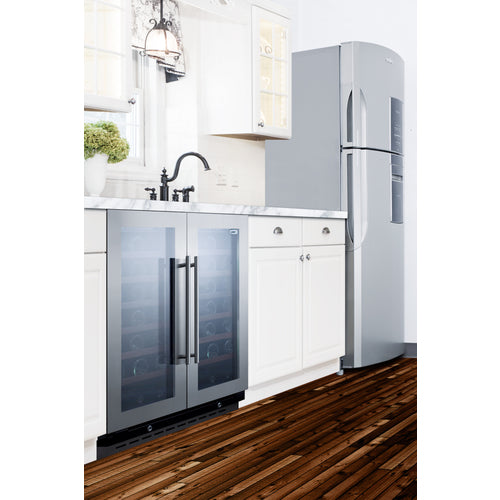

Make the best use of space by installing this unit under the counter and flush with other cabinetry
Interior can hold 66 standard 750ml Bordeaux style bottles, or 46 wider Burgundy bottles + 10 Bordeaux bottles
Two distinct temperature zones let you store white wine at colder temperature and red wine under warmer conditions
Gentle and energy efficient LED lighting offers an elegant view of your collection

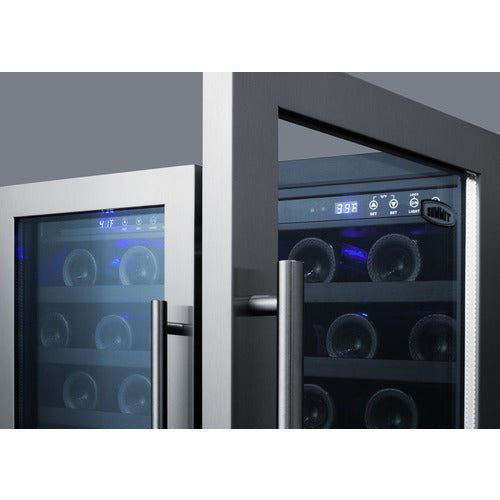

Each zone is equipped with electronic temperature controls for easy and intuitive temperature management
Classic wood shelves in a jet black finish are specially designed to hold bottles safely in place
Sleek stainless steel handles add an elegant touch to any setting
French door swing offers a modern look, with stainless steel door trim for an added accent
Keyed locks on both zones offer separate security for interior contents
Reduced user maintenance with automatic defrost
Internal fans ensure both interiors have a consistent temperature from top to bottom
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.38" (87 cm) |
| Width | 29.5" (75 cm) |
| Depth | 22.5" (57 cm) |
| Depth with Handle | 24.25" (62 cm) |
| Depth with door at 90° | 36.0" (91 cm) |
| Bottles | 66 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 132.0 lbs. (60 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055787 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 12 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC3066B.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| SUPPORT |
