Introducing the Summit Appliance 62 lb. Clear Outdoor/Indoor Icemaker. With its durable 304 grade stainless steel exterior, this icemaker is perfect for both indoor and outdoor use. Enjoy a continuous supply of clear ice with the user-reversible door and stainless steel handle for a modern touch.
Make a splash with the Summit Appliance Outdoor/Indoor Icemaker! This versatile 62 lb. unit can be built-in or freestanding, and its sealed back adds extra outdoor durability. With a front-breathing design and internal pump, it's perfect for any location. No need to worry about cleanup - just chill and relax!
Keep your drinks cold and flavorful with the Summit Appliance 62 lb. Clear Outdoor/Indoor Icemaker. This innovative machine produces clear gourmet dice-style ice cubes that won't dilute your beverage. With a production capacity of up to 62 lbs. per day and a storage bin that holds up to 26 lbs., you'll always have plenty of ice on hand. Plus, the included ice scoop hangs inside for convenient use. Say goodbye to tedious defrosting with the frost-free operation.
Enjoy an endless supply of ice with the Summit Appliance Clear Outdoor/Indoor Icemaker! ETL-S listed for commercial standards and weatherproof for outdoor use, this icemaker is perfect for foodservice settings or indoor kitchens and wet bars. Made in South Korea and available in a panel-ready version. (Professional installation required.)
FEATURES
15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
Versatile design can be installed inside or out
ETL-S listed to NSF-12 commercial standards for use in foodservice settings
Durable construction for safe installation in outdoor kitchens
Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
Internal pump allows more flexibility in placing the unit
Make the best use of space by installing your icemaker under the counter and flush with other cabinets
Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

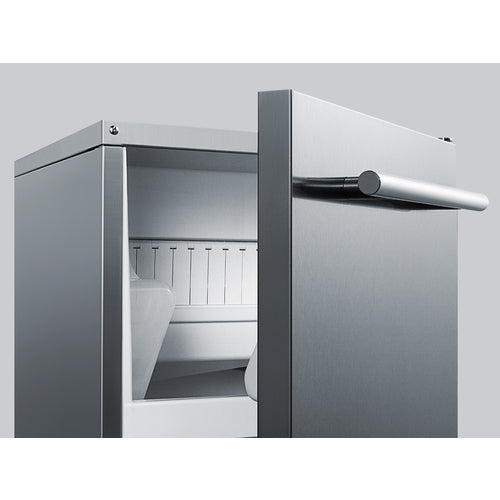

Horizontally mounted towel bar style handle in stainless steel

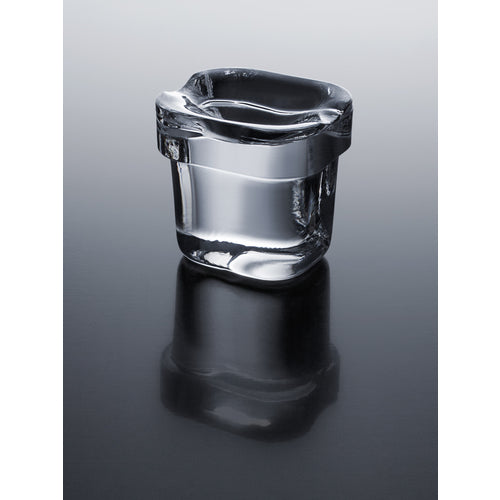

Gourmet style rounded dice-style ice cubes
No-frost operation for minimum user maintenance
User-reversible door swing for flexible placement
Operates with a standard 1/4” OD water supply line
Space-saving design with easier cleanability
Allows the unit to be used freestanding

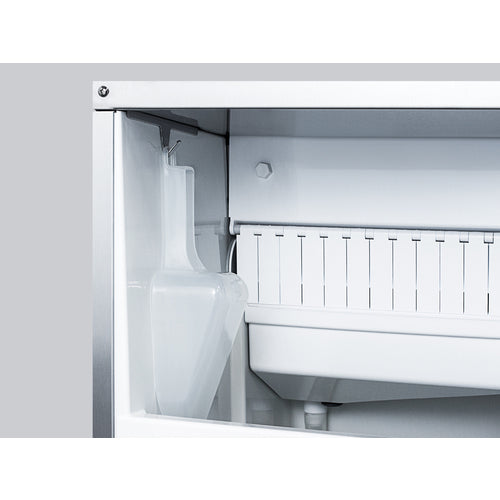

Interior wall includes hook to hang for easy storage
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.5" (85 cm) |
| Height to Hinge Cap | 33.63" (85 cm) |
| Width | 14.88" (38 cm) |
| Depth | 22.63" (57 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 37.25" (95 cm) |
| Capacity | 0.98 cu.ft. (28 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 4.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 105.0 lbs. (48 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101057095 761101057088 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Daily Ice Production | 62.0 lbs. (28 kg) |
| Ice Storage Capacity | 26.0 lbs. (12 kg) |
| Ice Shape | Dice |
| Size of Cube | 1 1/4" H x 1 1/8" W x 1 1/8" D |
| Number of Ice Cube Sizes | 1 |
| Fan Type | Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 7.4 oz. |
| High Side PSI | 210.0 |
| Low Side PSI | 105.0 |
| Interior Height | 12.75" (32 cm) |
| Interior Width | 12.75" (32 cm) |
| Interior Depth | 9.25" (23 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM68OSPUMP.pdf BIM68OSGDR.pdf |
| TECHNICAL DRAWING (.dwg) | |
| USE & CARE | |
| REVIT MODEL |
