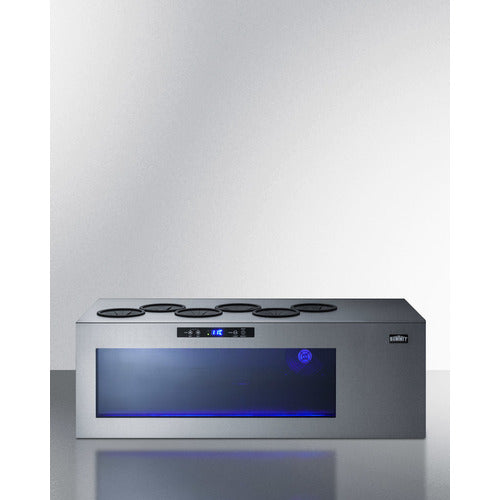

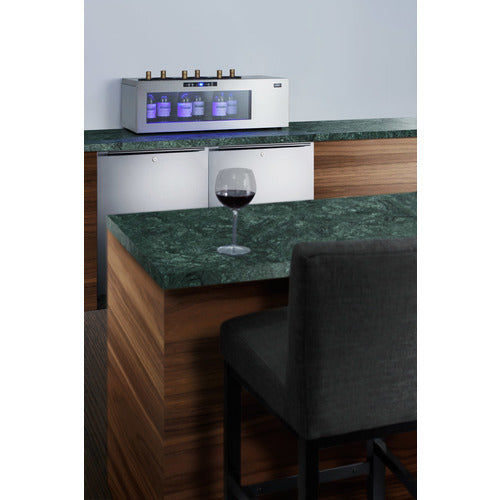

Experience exceptional wine storage with Summit Commercial's STC series of open-bottle wine coolers. The STC6, engineered with a compressor-based cooling system, is ETL-S listed to NSF-7 commercial standards, ensuring rapid temperature pull-down for use in bars, tasting rooms, and restaurants.
The six slots can accommodate standard Burgundy-style wine or champagne bottles while providing an attractive and illuminated display of the labels through a tinted glass window. The soft blue LED lighting has three brightness levels, perfect for any setting.
The unit is designed with digital controls, making temperature management a breeze. Red or white wine can be stored at a temperature range of 41 to 68ºF. The display allows for a quick switch between Fahrenheit and Celsius with just the touch of a button.
An internal fan ensures even chilling of stored bottles and an audible temperature alarm alerts you if the cooler goes out of the recommended range. The STC6 boasts a stainless steel exterior for a professional and durable look, perfect for busy commercial environments. Its innovative design and commercial-grade construction bring a new level of convenience to bottle service.
FEATURES
Easy user maintenance with an auto defrosting system, with a control panel setting included for defrosting if the cooler is used in areas of high heat or humidity
Allows you to freeze the control panel to avoid accidental temperature adjustments
In the event of power loss, the unit will recover its last setting once power is restored
Audible and visual alarms warn if the temperature rises or falls out of the suggested range
Fan-forced cooling helps to better circulate the temperature to keep each bottle stored under the right conditions
Three light settings and off mode let you access the perfect display conditions for every venue
Illuminated window lets you display bottle labels
The thermostat can be set between 41º and 68ºF for proper storage of white, blush, or red wine

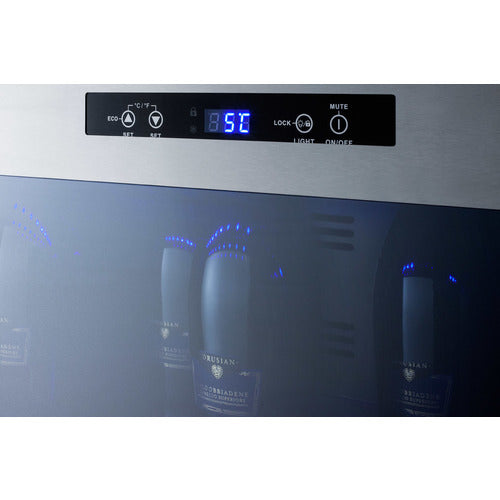

Electronic controls for precise temperature management, with a readout switchable from Fahrenheit to Celsius for added flexibility
Quality commercial design ensures rapid temperature pull-down and more stabilized performance to keep bottles properly chilled
The cabinet is wrapped in brushed stainless steel for a professional look with heavy-duty durability
Environmentally friendly design with no ozone-damaging chemicals

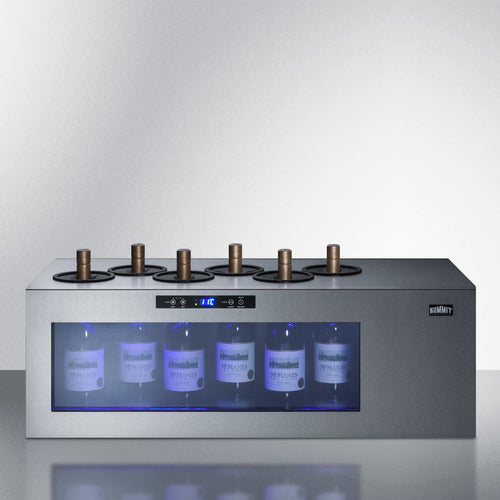

Interior can hold up to 6 Burgundy-style wine bottles or champagne bottles in an upright position
ETL-S listed to NSF-12 commercial standards for use in food service settings
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 12.5" (32 cm) |
| Width | 35.75" (91 cm) |
| Depth | 15.38" (39 cm) |
| Bottles | 6 bottles |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 73.0 lbs. (33 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101061429 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.06 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Temperature Range | 41 to 68ºF |
| Sound Level | 35.8 dB |
DOWNLOADS
| BROCHURE w/ DRAWINGS | STC6.pdf |
| TECHNICAL DRAWING (.dwg) | STC6_WINE_COOLER__A-C_2010_.dwg |
| USE & CARE |
