The seamless stainless steel trim adds a touch of professional elegance, while the door can be easily reversed for flexible placement options. Keep your collection safe from UV light and maintain its quality with SUMMIT's fully integrated wine cellars.
Featuring two separate zones with precise temperature control for red and white wines, the VC60D offers a professional and elegant way to store bottles. Easy-to-use digital thermostat and an alarm system ensure that the interior stays at the ideal temperature. With classic wooden shelves and a unique tilt design on the bottom shelf, this unit can accommodate up to 51 Bordeaux or 36 Burgundy-style bottles. Enjoy an elegant, well-lit interior with recessed LED lighting, which can be set for display or functional mode. Other features include an open door alarm and Sabbath Mode setting.
The VC60D is auto-defrosted and has fan-forced cooling for even temperature distribution. It also has a condensation collection system to maintain proper humidity levels. With its sophisticated appearance and versatile design, the VC60D is the perfect addition to any room. This unit is designed for fully integrated installation (cutout dimensions: 34 3/8" to 34 5/8 H x 21
FEATURE
Dual-zone design
The lower zone is ideal for storing red and blush wine between 55 and 72ºF, while the upper compartment is better suited for cooler blushes and whites at 41 to 55ºF
Meets UL-471 commercial standards
Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit
Ensures evenly cooled interior for proper storage
User-reversible door swing in double pane tempered glass for best protection from UV light
Store bottles safely in classic style

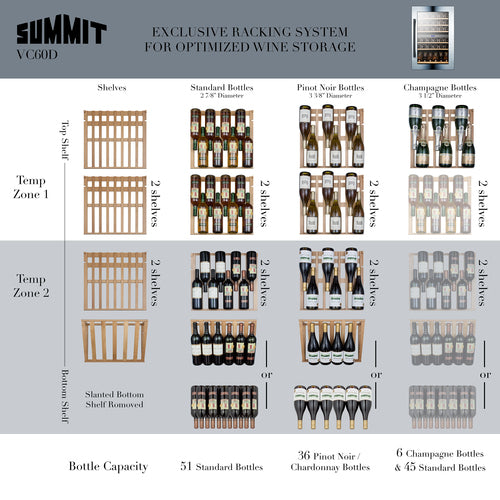

Unique design lets you stand bottles at an angle to display the label
Sounds after door is left open for over a minute to best prevent accidents
Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)
The alarm sounds off when the unit's interior rises or falls out of the set range
The optional setting lets you disable the lighting and alarms for 48 hours

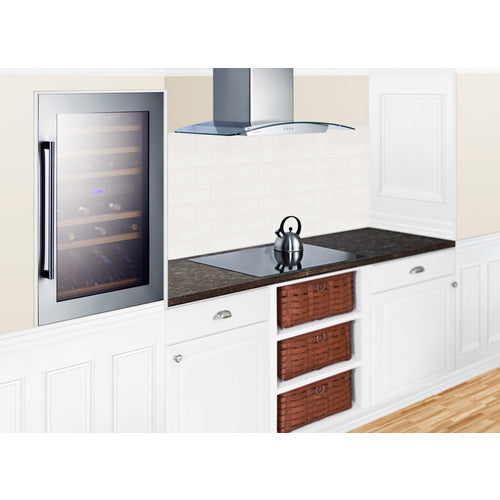

Designed for fully integrated installation (cutout dimensions: 34 3/8" to 34 5/8 H x 21 5/8" W x 21 5/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit))
Proper humidity levels are maintained inside due to a specially designed condensation collection system
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.88" (89 cm) |
| Width | 23.25" (59 cm) |
| Depth | 22.38" (57 cm) |
| Depth with Handle | 25.13" (64 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Bottles | 51 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Unfinished |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101031262 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 2.05 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 10.0" (25 cm) |
| Interior Width 1 | 18.25" (46 cm) |
| Interior Depth 1 | 16.75" (43 cm) |
| Compressor Step Height | 7.5" (19 cm) |
| Compressor Step Width | 18.25" (46 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Interior Height 2 | 19.0" (48 cm) |
| Interior Width 2 | 18.25" (46 cm) |
| Interior Depth 2 | 15.0" (38 cm) |
| Sabbath Mode | Yes |
| Exterior | |
|---|---|
|
