Summit presents a sophisticated, modern method for preserving wine, food, and beverages with its 2-in-1 dual-zone wine cellar and double-drawer refrigerator-freezer - an ideal centerpiece for hosting at home.

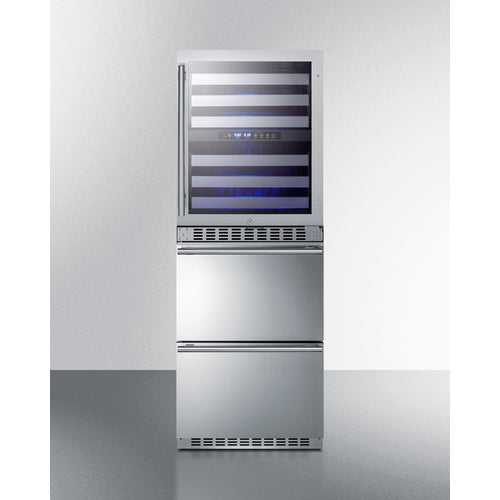

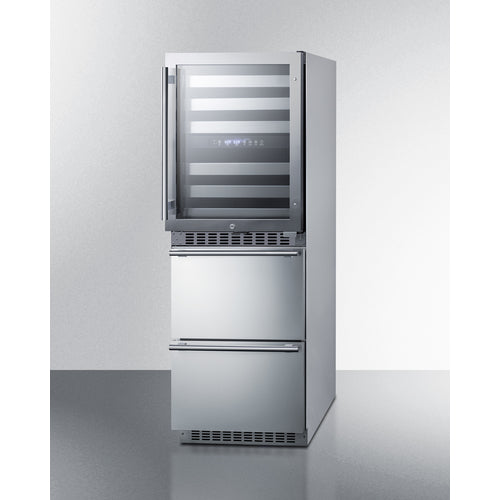

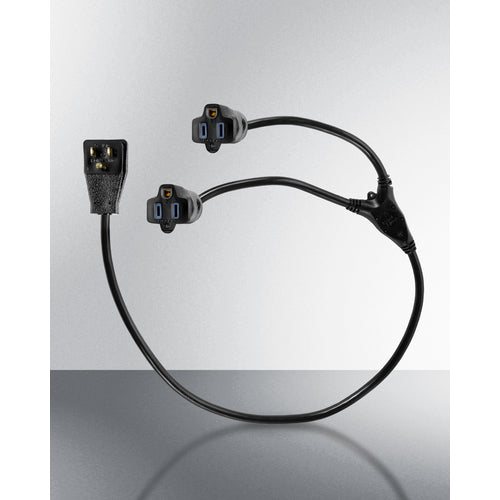

The SWCDRF24 is a complete refrigeration station, featuring the 46 bottle capacity two-zone wine cellar (model ALWC532) and the 3.9 cu.ft. two-drawer refrigerator-freezer (model SPRF34D) in a compact 24" wide size. This versatile unit can be installed either built-in or freestanding, with its stainless steel cabinet and pro-style handles in brushed stainless steel providing a modern and durable design. The sealed back also saves space when placing the unit. For added convenience, the included six-foot Y-shaped NEMA 5-15P cord with a 3-prong right angle plug allows both units to be operated from a single outlet, without requiring extra depth. Plus, this model comes fully assembled for easy setup.

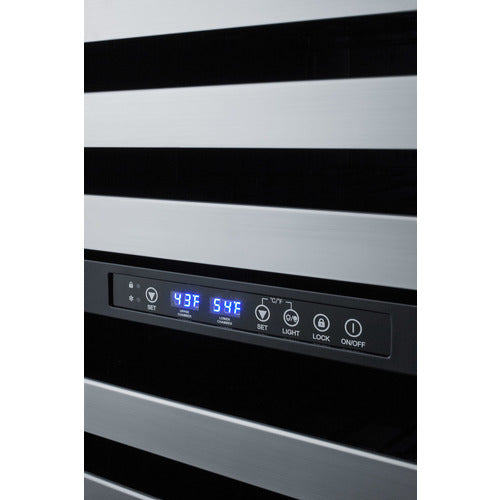

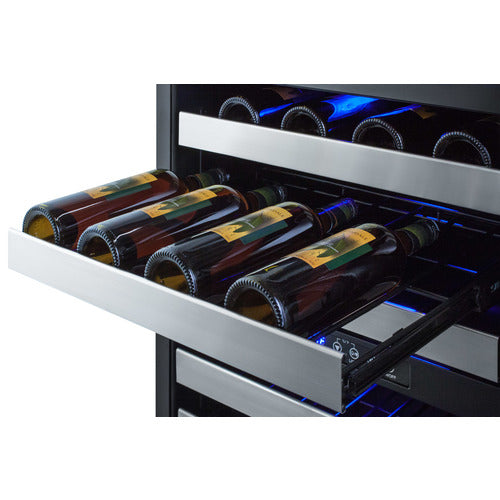

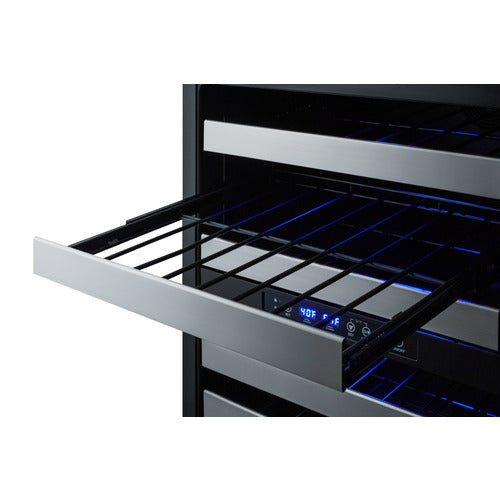

The wine cellar is equipped with a reversible double-pane tempered glass door and a lock for added security. Automatic defrost operation reduces maintenance for the user. It can hold a maximum of 46 standard Bordeaux style bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows for precise temperature control in the upper zone, with a range of 41°F to 50ºF for white wine. The lower zone is designed for red wine, with a temperature range of 50°F to 64ºF. The six full-extension black wire shelves with stainless steel front trim smoothly glide out on ball-bearing glides, while recessed LED lighting in a gentle blue hue provides an attractive and efficient display.

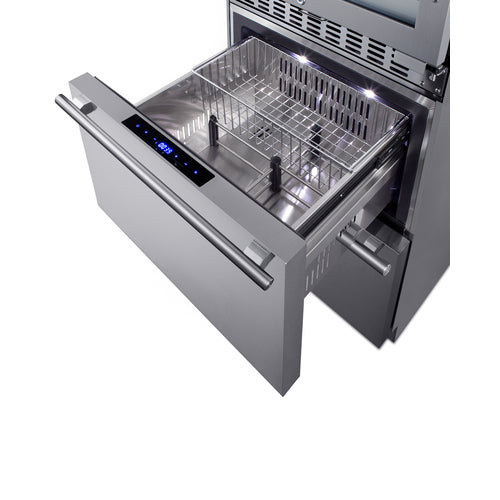

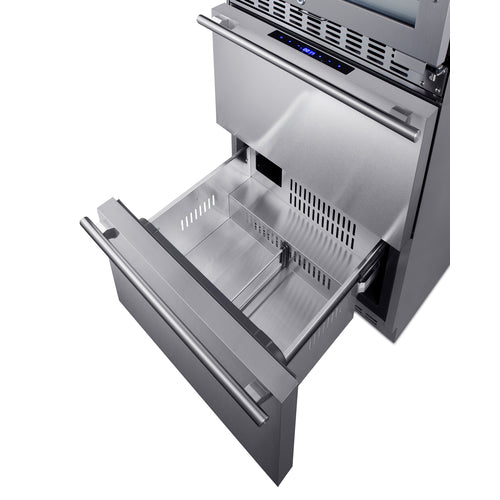

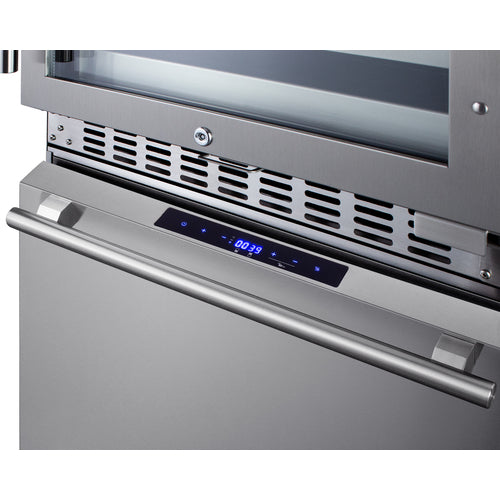

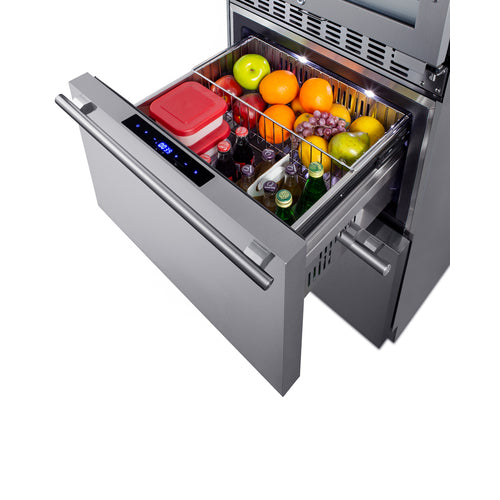

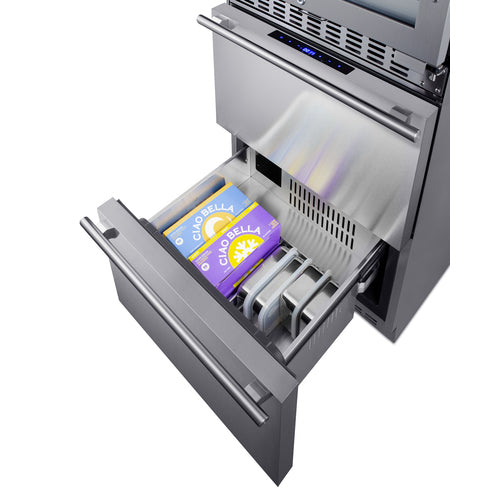

The two-drawer refrigerator-freezer is constructed entirely from stainless steel, providing exceptional durability and easy maintenance. Both the top refrigerator and bottom freezer drawers use frost-free technology and fan-forced cooling for consistent temperature distribution. A digital thermostat, located on top of the refrigerator drawer, allows for easy temperature management with a versatile LED display that can be read in either Celsius or Fahrenheit. Two adjustable, removable dividers allow for customizable organization of the compartments into either two (freezer) or four (refrigerator) zones, accommodating various sizes. A full-width sliding chrome basket adds convenience in storage, while the white LED lighting in the refrigerator drawer makes it effortless to view stored items. For safety, a child lock disables the digital controls after two minutes of inactivity, while audible alarms for high temperatures and open drawers add extra security. In case of power loss, a temporary memory function restores all settings, and for religious observance, a Sabbath Mode setting disables specific electrical features.
The SWCDRF24 offers efficient refrigeration in a sleek and compact design, making it perfect for residential settings such as home bars and kitchens. It provides storage for wine, beverages, and food, while adding a touch of modern style. This unit can even be customized with panels over the drawers and door frame (see model SWCDRF24PNR), and additional options include a bottom refrigerator (model SWCDAR24) or a bottom freezer (model SWCDAF24).
This product includes an anti-tip bracket that must be installed to prevent it from tipping forward.
FEATURES
Complete refrigeration storage solution with the dual-zone, 46 bottle capacity wine cellar (model ALWC532) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces
Slim 24" wide fit offers full storage for wine, food, and beverage in a compact footprint
Front-breathing design allows this unit be built in for added space savings
Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
LED lighting illuminates your wine collection in a gentle blue hue, while ensuring easy view of the refrigerator interior for easy access
Provides a full display of the interior, with two levels of glass for added protection
Single-piece door trim offers a more deluxe look
Solid stainless steel handles 1” in diameter afford style to any setting
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Reduced maintenance with auto defrost system
Keyed lock for secure interior, with two keys included
User-reversible door swing makes it easy to best accommodate your setting
Slide-out drawers offer 3.4 cu.ft. of interior storage
Complete stainless steel construction offers added durability in an easy-cleaning design
Two adjustable dividers make it simple to organize the drawer interiors

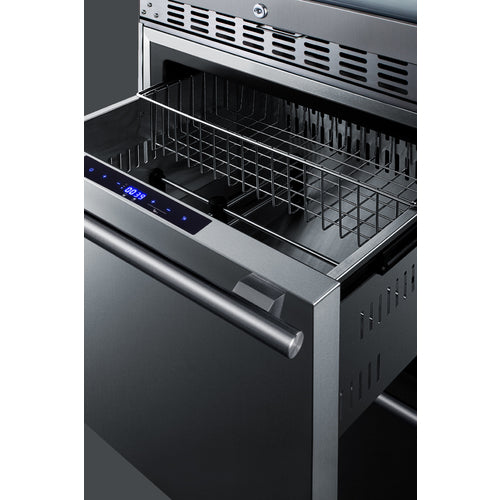

Removable chrome basket included for easier storage convenience
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Protects from everyday wear and tear in a durable, elegant design
Audible alarm will sound if the drawers are left ajar for over a minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Unit will retain its last settings when power is restored in the event of power loss
Disables digital controls after two minutes of activity for added safety
Optional setting lets you disable the lighting and alarm for up to 48 hours
Included 6 ft. cord allows users to operate both the wine cellar & refrigerator-freezer using a single plug for added convenience
Included and recommended for user-installation to reduce the risk of tipping
Allows the unit to be used freestanding
Unit comes fully assembled for user convenience
This unit is also available with a bottom refrigerator (see the SWCDAR24) or a bottom freezer (see the SWCDAF24)
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 65.63" (167 cm) |
Width | 23.63" (60 cm) |
Depth | 23.75" (60 cm) |
Depth with Handle | 25.75" (65 cm) |
Depth with door at 90° | 45.75" (116 cm) |
Capacity | 3.9 cu.ft. (110 L) |
Bottles | 46 bottles |
Defrost Type | Automatic |
Door | Glass/SS |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 380.0kWh/year |
Other Energy Info | ALWC532: 1.25Ams; SPRF34D: 1.0 Amp |
Amps | 2.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight |
221.0 lbs. (100 kg) 229.0 lbs. (104 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC |
761101082844 761101082806 761101082820 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Wire |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 1.23 oz. |
High Side PSI | 150.0 |
Low Side PSI | 50.0 |
Interior Height 1 | 11.88" (30 cm) |
Interior Width 1 | 20.5" (52 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Interior Height - Drawer 1 | 10.0" (25 cm) |
Interior Width - Drawer 1 | 18.75" (48 cm) |
Interior Depth - Drawer 1 | 15.5" (39 cm) |
Interior Height - Drawer 2 | 9.25" (23 cm) |
Interior Width - Drawer 2 | 18.75" (48 cm) |
Interior Depth - Drawer 2 | 15.5" (39 cm) |
Temperature Range | ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F |
Interior Height 2 | 11.63" (30 cm) |
Interior Width 2 | 20.5" (52 cm) |
Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
Exterior | LHD - Left-hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
Door |
T3 Door Tint | T1S Door Tint |
T4 Door Tint | T2 Door Tint |
T1 Door Tint |
