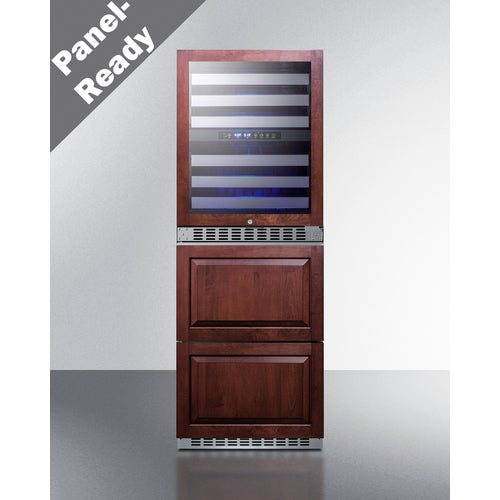

Summit presents a modern and sophisticated solution for storing wine, food, and beverages - a dual-zone wine cellar and 2-drawer all-refrigerator. This is the ultimate entertainment station for any household.
Sized at approximately 24" wide, the SWCDRF24PNR combines the ALWC532PNR two-zone wine cellar with a 3.9 cu. ft. two-drawer refrigerator-freezer (model SPRF34D), making it a complete refrigeration station. The front-breathing design allows for built-in installation, while the stainless steel cabinet can also be used freestanding. The sealed back design maximizes space-saving potential, and both units can be operated from a single outlet using the included six-foot NEMA 5-15P cord with a 3-prong right-angle plug. The unit features customizable overlay panels for the wine cellar door frame and refrigerator drawer fronts, allowing for seamless integration with existing cabinetry. Users must provide their handles for a finished look, and an included anti-tip bracket is recommended for added safety. This model ships fully assembled for user convenience.
This two-zone wine cellar features a double-pane tempered glass door that can be reversed by the user and a seamless stainless steel door for a modern appearance. A factory-installed lock provides security when needed while automatic defrost operation minimizes maintenance for the user. With a capacity of 46 standard Bordeaux-style bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles, this cellar is designed to meet your storage needs. The digital control panel allows for temperature management between 41°F and 50ºF for white wine in the upper zone and between 50°F and 64ºF for red wine in the lower zone. The six full-extension black wire shelves with stainless steel front trim smoothly glide out on ball-bearing glides for easy loading. Both zones feature recessed LED lighting in a gentle blue hue for an attractive and efficient display.

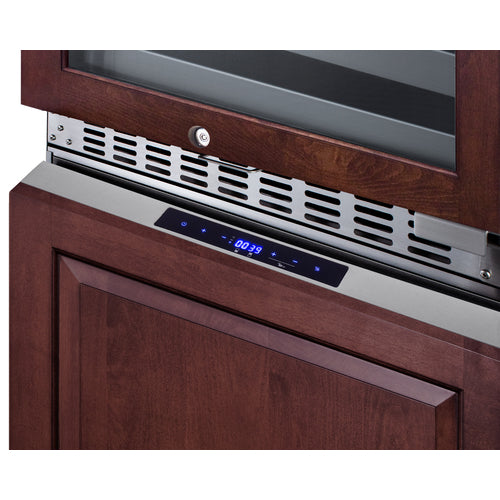

The dual-zone wine cellar and refrigerator combination from Summit Appliance is made with stainless steel for durable construction and easy maintenance. The top refrigerator drawer and bottom freezer drawer both use fan-forced cooling and frost-free operation for even temperature distribution and minimal user maintenance. A digital thermostat at the top of the refrigerator drawer allows for easy temperature management with an LED display that can be read in Celsius or Fahrenheit. The drawer compartments can be separated into two (freezer) or four (refrigerator) zones with adjustable, removable dividers, and a full-width chrome basket offers additional storage. The refrigerator drawer is equipped with white LED lighting for easy visibility of contents. For safety, a child lock will disable the digital controls after two minutes of inactivity, and audible alarms will alert for high-temperature fluctuations or open drawers. In case of power loss, a temporary memory function will recover all settings, and the Sabbath Mode setting can disable electrical features during religious observance.
Enhance your refrigeration experience with the SWCDRF24PNR, a sleek and compact unit perfect for storing wine, beverages, and food in a contemporary manner. Choose from panel-ready options such as a bottom refrigerator (model SWCDAR24PNR) or a bottom freezer (model SWCDAF24PNR) for a customizable look in your home bar, kitchen, or other residential space.
This product does not include panels. Images provided are for visual reference only and do not represent the product with wood panels installed. Customers will need to provide their wood panels.
FEATURES
Complete refrigeration storage solution with the dual-zone, 46-bottle capacity wine cellar (model ALWC532PNR) and two-drawer refrigerator-freezer (model SPRF34D, perfect for home bars, kitchens, and similar residential spaces
Slim 24" wide fit offers full storage for wine, food, and beverages in a compact footprint
The front-breathing design allows this unit to be built in for added space savings

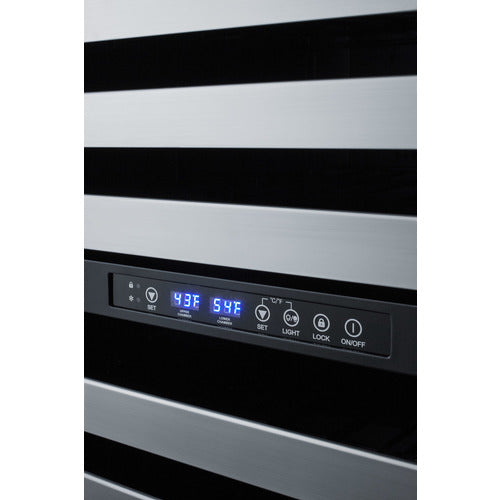

Easy temperature management with electronic controls with a temperature readout in Fahrenheit or Celsius
LED lighting illuminates your wine collection in a gentle blue hue while ensuring an easy view of the refrigerator interior for easy access
Provides a full display of the interior, with two levels of glass for added protection
The door frame can be customized with an overlay panel to best match your cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)
The lower zone for reds has a temperature range of 50º F to 64º F; the Upper zone stores whites and sparkling wine between 41º F and 50º F

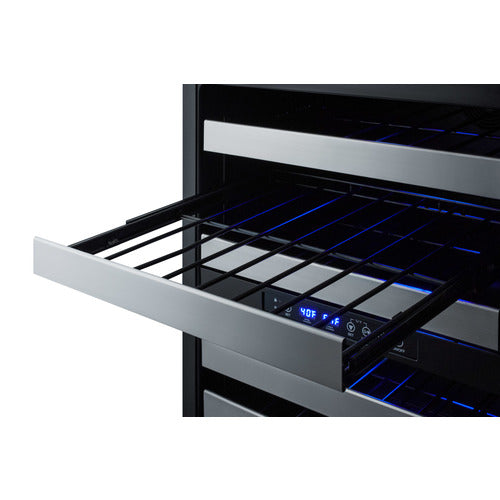

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving
Shelves move smoothly on ball-bearing glides for easier loading and unloading
Reduced maintenance with auto defrost system
Keyed lock for secure interior, with two keys included
Unit ships with a right-hand door swing. For a left-hand door swing, order with the option "LHD"

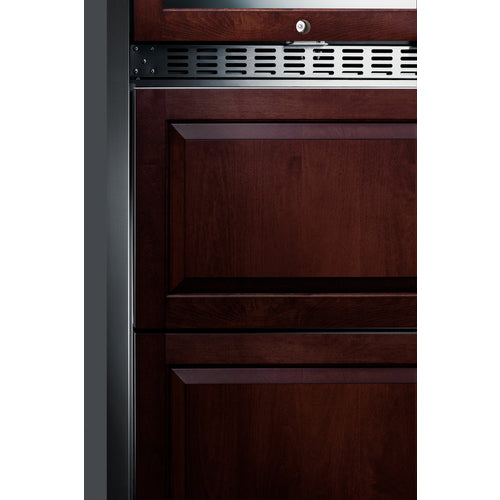

Drawers accept overlay panels (size: 23.43" x 15" at 3/4" thick) to let you seamlessly blend the refrigerator into the cabinetry design
Complete stainless steel construction offers added durability in an easy-cleaning design

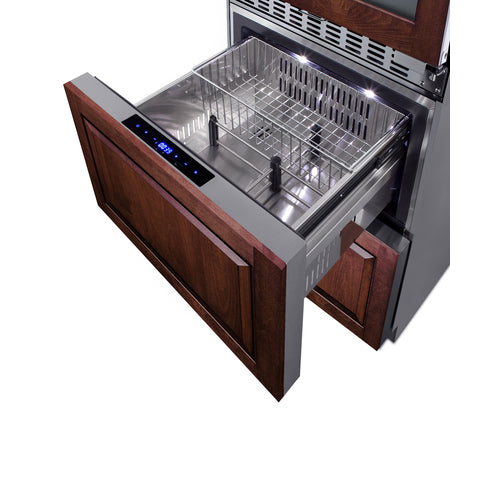

Two adjustable dividers make it simple to organize the drawer interiors

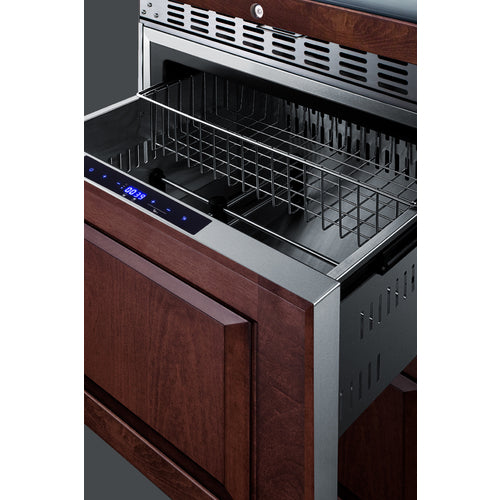

Removable chrome basket included for easier storage convenience
No-frost operation for minimum user maintenance
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Protects from everyday wear and tear in a durable, elegant design
An audible alarm will sound if the drawers are left ajar for over a minute
High-temperature alarm sounds if the unit's interior goes out of the recommended range
The unit will retain its last settings when power is restored in the event of power loss
Disables digital controls after two minutes of activity for added safety
The optional setting lets you disable the lighting and alarm for up to 48 hours
The included 6 ft. cord allows users to operate both the wine cellar & refrigerator freezer using a single plug for added convenience
Included and recommended for user installation to reduce the risk of tipping
Allows the unit to be used freestanding
The unit comes fully assembled for user convenience
This unit is also available with a bottom refrigerator (see the SWCDAR24PNR) or a bottom freezer (see the SWCDAF24PNR)
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
Overview
|
|
---|---|
Height of Cabinet | 65.63" (167 cm) |
Width | 23.63" (60 cm) |
Depth | 23.75" (60 cm) |
Depth with door at 90° | 45.75" (116 cm) |
Capacity | 3.9 cu. ft. (110 L) |
Bottles | 46 bottles |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Energy Usage/Year | 380.0kWh/year |
Other Energy Info | ALWC532: 1.25Ams; SPRF34D: 1.0 Amp |
Amps | 2.25 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight |
221.0 lbs. (100 kg) 229.0 lbs. (104 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC |
761101082851 761101082813 761101082837 |
Wine Cellar
|
|
Number of Zones | 2 |
Door Swing | RHD |
Reversible | Factory Reversible |
Shelf Type | Wire |
Shelf Qty | 6 |
Thermostat Type | Digital |
Interior Light | Yes |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Interior Height 1 | 11.88" (30 cm) |
Interior Width 1 | 20.5" (52 cm) |
Interior Depth 1 | 18.0" (46 cm) |
Interior Height - Drawer 1 | 10.0" (25 cm) |
Interior Width - Drawer 1 | 18.75" (48 cm) |
Interior Depth - Drawer 1 | 15.5" (39 cm) |
Interior Height - Drawer 2 | 9.25" (23 cm) |
Interior Width - Drawer 2 | 18.75" (48 cm) |
Interior Depth - Drawer 2 | 15.5" (39 cm) |
Temperature Range | ALWC532: 41°F to 64°F; SPRF34D: 36°F to 43°F/Freezer: -11°F to 11°F |
Interior Height 2 | 11.63" (30 cm) |
Interior Width 2 | 20.5" (52 cm) |
Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
Exterior | LHD - Left-hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
Door |
T3 Door Tint | T1S Door Tint |
T4 Door Tint | T2 Door Tint |
T1 Door Tint |
