Summit offers a wide range of built-in undercounter wine cellars, providing elegant options to achieve a customizable look that is perfect for any space.

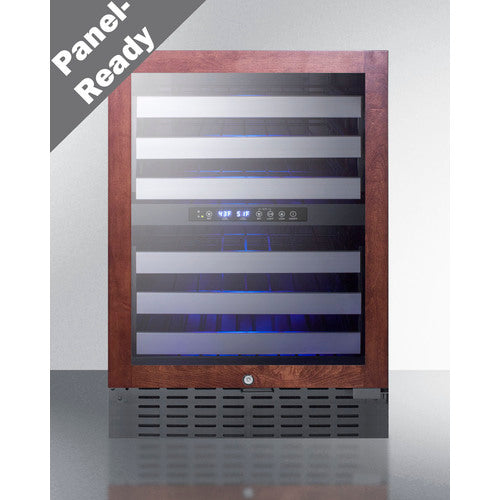

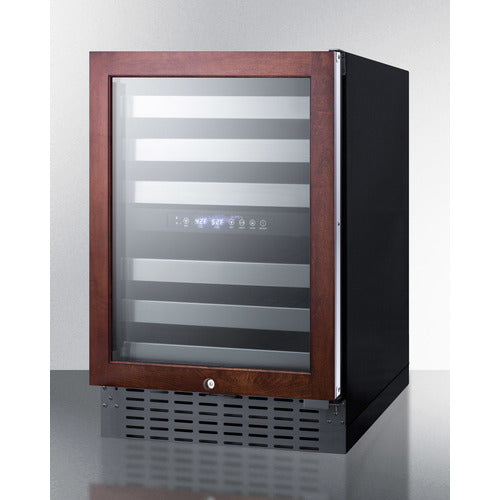

The SWC532BLBISTPNR is a built-in or freestanding wine cellar designed for 24" spaces, with a front-breathing design and double pane tempered glass door. The black cabinet can be customized with overlay panels to match your cabinetry, and a factory-installed lock provides extra security. The stainless steel kickplate adds a finishing touch, and the unit comes with a right-hand door swing (can be switched to left-hand upon request).

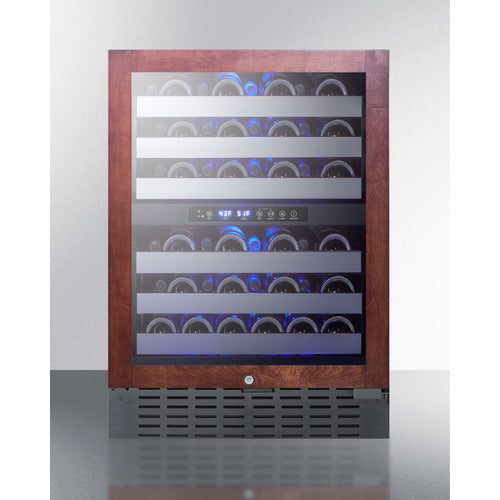

The SWC532BLBISTPNR was specifically designed to accommodate up to 46 standard Bordeaux style bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles. Its digital control panel offers precise temperature management for both white and red wine, with the upper chamber ranging from 41 to 50ºF and the lower zone from 50 to 64ºF. For convenient loading, the unit features six full-extension black wire shelves with stainless steel front trim that glide smoothly on ball-bearing slides. Additionally, both compartments are equipped with recessed LED lighting in a soft blue hue, making for an attractive and energy-efficient display.
Step up your wine storage game with the advanced features and versatile design of the SWC532BLBISTPNR. Perfect for any setting, this unit adds a touch of modern style to your collection. Create a seamless look by pairing it with the matching SCR2466BPNR beverage cooler.
FEATURES
Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones
Front-breathing design allows this unit to be installed under counters
Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

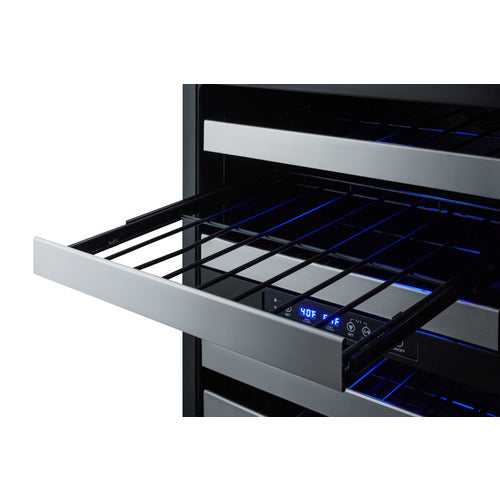

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

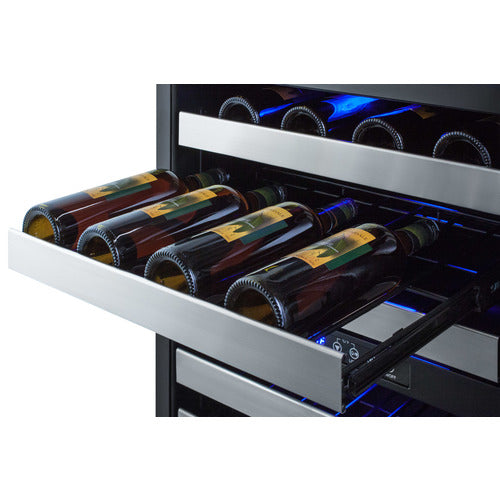

Shelves move smoothly on ball-bearing glides for easier loading and unloading
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

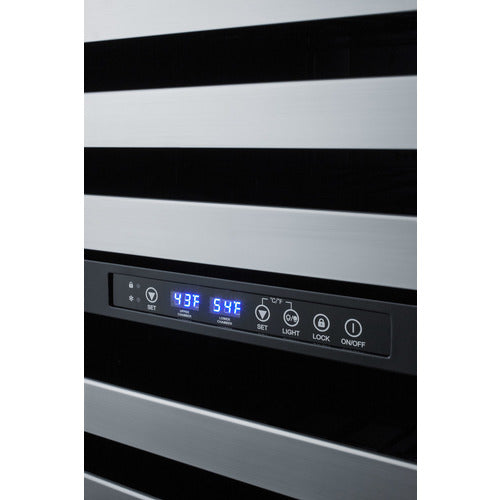

Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Provides a full display of the interior, with two levels of glass for added protection
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included
Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"
Allows the unit to be used freestanding

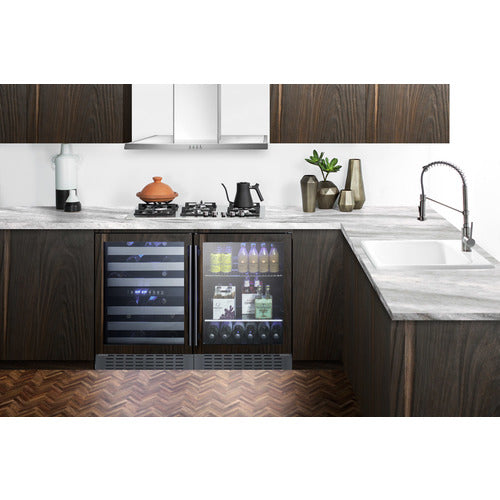

Pairs perfectly with the SCR2466BPNR
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.5" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101067094 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
| Exterior | LHD - Left hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC532BLBISTPNR.pdf |
| TECHNICAL DRAWING (.dwg) | PNR_Instructions_-_ALBV2466_SCR2466B_ALWC532_SWC532BLBIST_5-2022.pdf |
| USE & CARE | ALWC532_SWC532BLBIST_LWC241_LWCADA241_Use___Care.pdf |
| SUPPORT | ALWC532_Shelving_Guide.pdf |
