The Summit Appliance SWC6G Series offers European-designed wine cellars with glass doors that are approved for commercial use. These cellars are built with high-quality construction, perfect for long-term storage of red and white wines.
This wine cellar, the SWC6GBL, is designed to fit easily into tight spaces with its just-under-24" wide counter height. It features a finished black cabinet for freestanding use and a stylish reversible glass door with aluminum trim to showcase your collection. Additionally, for added security, there is a factory lock with a key.
Constructed with the necessary features to ensure optimal storage for white wine, the SWC6GBL is equipped with scalloped steel shelves that efficiently hold bottles within its spacious interior. For optional visibility, a rocker switch light has been installed. This appliance also boasts an automatic defrost function to simplify maintenance and a "hidden" evaporator for effortless cleanup.
Experience exceptional performance and sophisticated style with the SWC6GBL - the perfect solution for preserving your premium wine collection in any commercial or residential environment.
This product is specially designed for the storage of white wine, but with an optional digital thermostat, it can be adjusted to accommodate red wine temperatures as well.
FEATURES
Make the best use of space by installing your appliance under the counter
32" height fits under lower ADA compliant counters
Allows the unit to be used freestanding

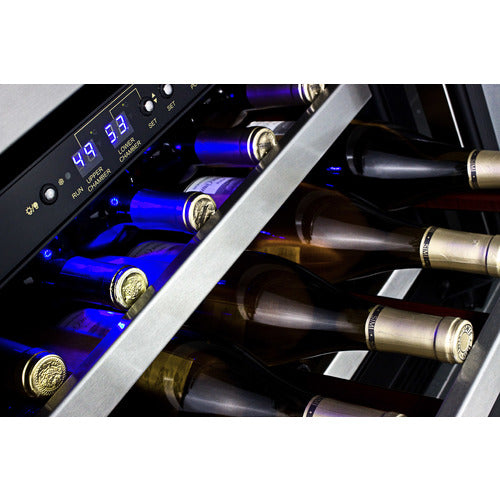

Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Reduced maintenance with auto defrost system
Ideal for holding your bottles, with an elegant touch of stainless steel trim

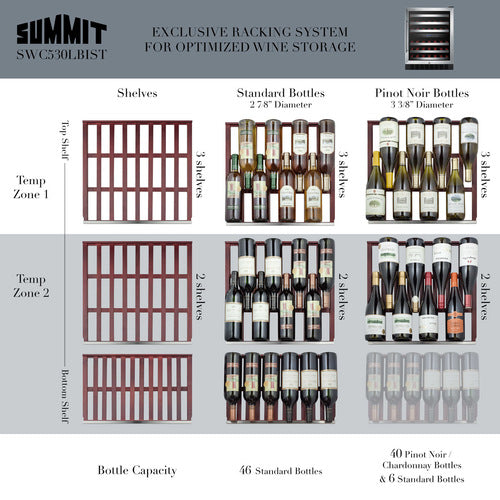

Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details
Classic trim for a refined look

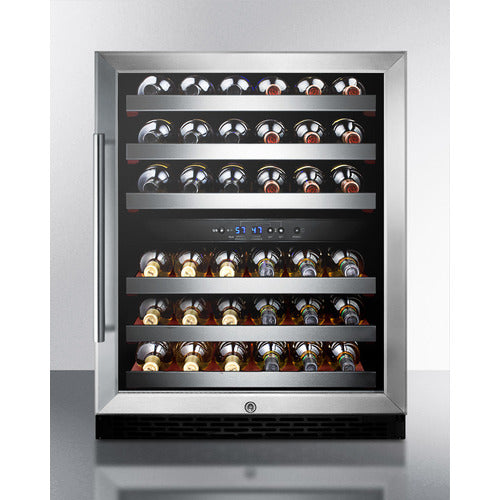

Provides a full display of your collection
Illuminate your collection in style
Keyed lock for secure interior
User reversible door swing
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 2.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056401 761101056425 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Sound Level | 34.3 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC530BLBISTADA.pdf |
| SUPPORT | SWC530BLBIST___SWC182Z_manual.pdf |
| USE & CARE | SWC530LBIST_Shelving_Guide.pdf |
