Experience the ultimate wine storage solution with the SWC530BLBIST and SWC530BLBISTCSS models from Summit Appliance. These under-counter wine cellars boast advanced features and a stunning design, perfect for storing your finest collection.
This wine cellar features two digital thermostats that enable separate temperature control for white and red wines. With slide-out wooden shelves and stainless steel trim, it can hold up to 46 standard 750ml bottles of Bordeaux, or 40 wider Pinot Noir or Chardonnay bottles plus six Bordeaux bottles. Other convenient features include full automatic defrost, interior lighting, and SUMMIT's "hidden" evaporator for easy maintenance.
The exterior of the SWC530BLBIST and SWC530BLBISTCSS features a stylish black finish and a reversible glass door, ideal for showcasing your wine collection. The sleek stainless steel door handle adds a professional touch, while the front-breathing design and flush back make this model suitable for both freestanding and built-in use in modern homes.
FEATURES
Make the best use of space by installing your appliance under the counter
ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays
The lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; the Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F
Reduced maintenance with auto defrost system
Ideal for holding your bottles, with an elegant touch of stainless steel trim

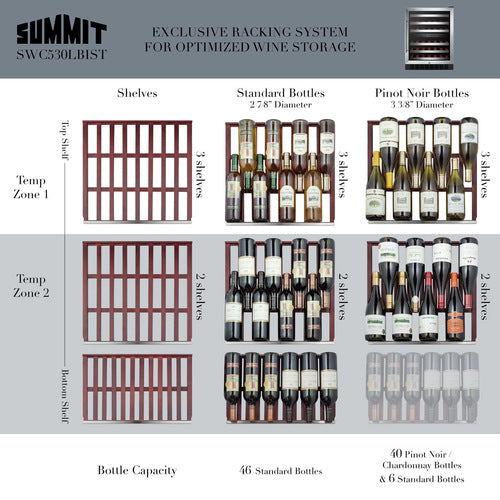

Interior can store both standard Bordeaux bottles and wider Burgundy types for Pinot Noir and Chardonnay; see your Shelving Guide for details
Classic trim for a refined look
Provides a full display of your collection
Illuminate your collection in style
Allows the unit to be used freestanding
Keyed lock for secure interior
User-reversible door swing
Environmentally friendly design with no ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.0" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 112.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055770 761101056418 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 2 |
| Sound Level | 34.3 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left haLeft-handwing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | SWC530LBISTWINECELLARA-C2000.dwg |
| USE & CARE | SWC530LBIST_Shelving_Guide.pdf |
| SUPPORT | SWC530BLBIST___SWC182Z_manual.pdf |
