Summit's broad range of built-in under-counter wine cellars offers a variety of options for all types of spaces.

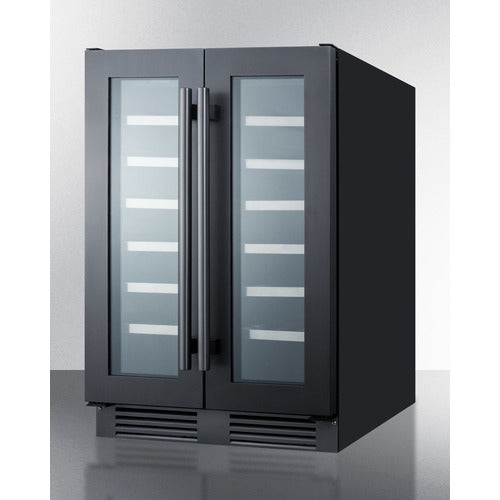

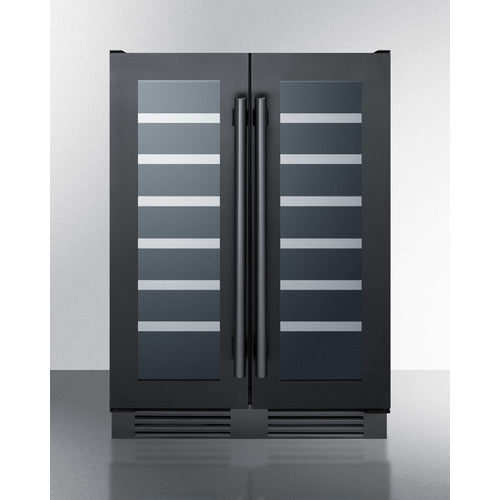

Designed for 24" wide spaces, the SWC24GKS is a dual-zone wine cellar that can be installed as a built-in or used as a freestanding unit. Its front-breathing design and fully finished black cabinet add versatility to its functionality. The French door swing adds an elegant touch to under-counter spaces, with a fingerprint-proof 304-grade stainless steel door trim in a black matte finish. The handles and kickplate have a brushed stainless steel finish for a sleek and contemporary look.

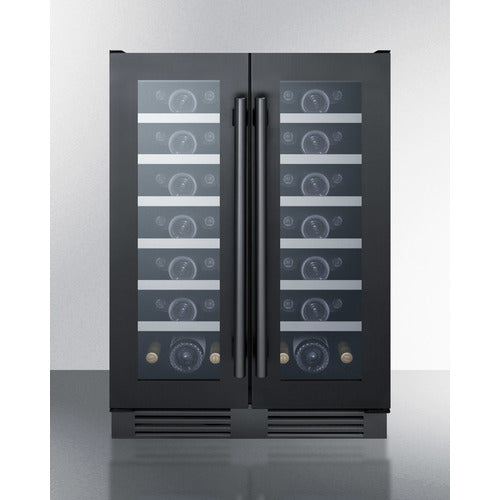

The Summit Appliance SWC24GKS includes full-extension stainless steel-trimmed wooden shelves on rollers for convenient loading. Its digital controls allow for easy temperature management in both zones, and the readout can be displayed in either Celsius or Fahrenheit. Both zones can be set for storing red or white wine, with a maximum capacity of 42 standard Bordeaux-style bottles. To accommodate wider Burgundy style wine bottles, users can remove every other shelf for a better fit. Each compartment of this unit also features an active charcoal filter for preserving wine collections. Furthermore, the walls are equipped with white LED lighting which can be set to either turn on with open doors or remain on in presentation mode for an efficient, gentle glow. This unit also comes with an open door and high/low temperature alarm for extra protection of your wine.
With its distinctive design and user-friendly functions, the SWC24GKS adds a modern touch to any under-counter space. Summit offers a variety of wine and beverage centers, including ADA-compliant options, for you to peruse.
FEATURES
Make the best use of space by installing your appliance under the counter
Gently tinted glass provides a full view of stored wine while protecting your collection
Seamless design in fingerprint-proof black matte stainless steel for a modern look under the counter

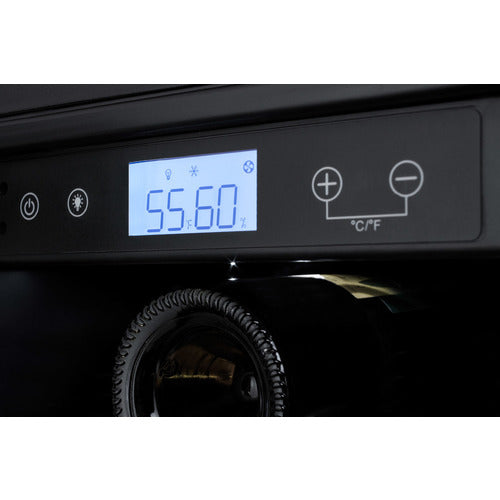

Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Independent zones let you store your reds and whites under the perfect conditions

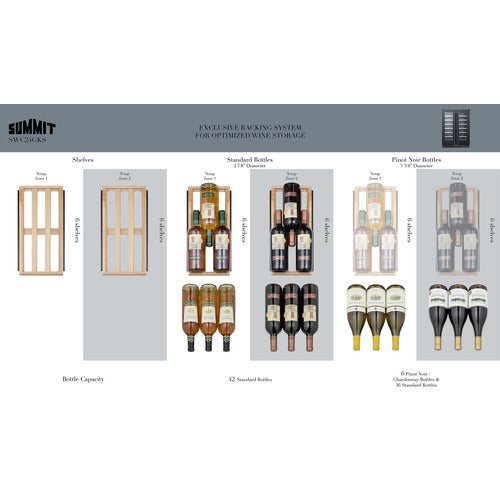

Each zone holds up to 21 standard Bordeaux-style bottles. For wider Burgundy style bottles, we recommend removing every other shelf to best accommodate your storage needs

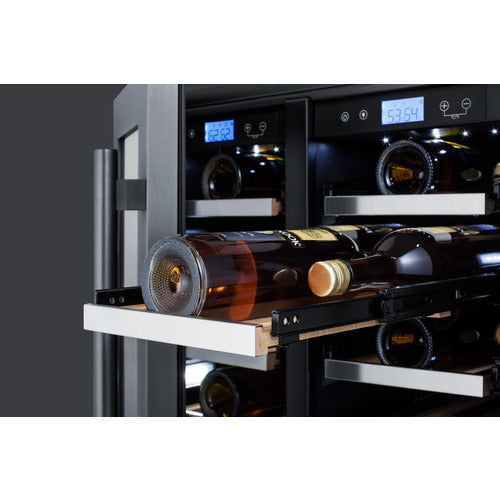

Wine shelves glide out smoothly for easier loading
Wooden finish with stainless steel trim for an attractive accent
Unique white light offers elegant illumination for the jet-black interior
Reduced maintenance with auto defrost system
Internal fans ensure both interiors are evenly cooled from top to bottom

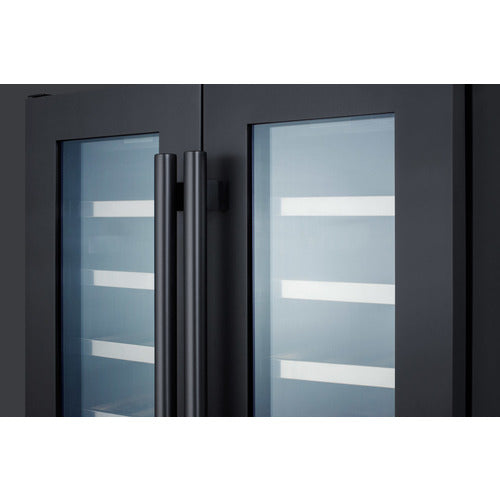

Two side-by-side doors with French door opening
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
An audible alarm will sound if the door is left ajar
Each zone includes a charcoal filter to help preserve wine
Added protection with a brushed stainless steel toe kick in a deep smoky finish

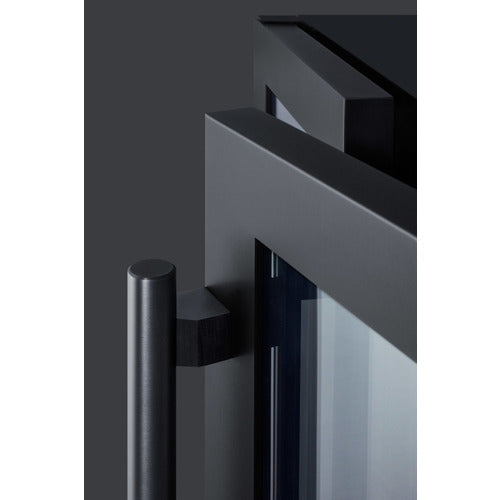

Each door includes a professional handle in a deep brushed stainless steel finish to match the kickplate
Space-saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.38" (59 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.75" (65 cm) |
| Depth with door at 90° | 34.13" (87 cm) |
| Capacity | 5.2 cu. ft. (147 L) |
| Bottles | 42 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 130.0 lbs. (59 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101060194 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Reversible | No |
| Shelf Type | Wood |
| Shelf Qty | 12 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.77 oz. |
| High Side PSI | 320.0 |
| Low Side PSI | 120.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 9.38" (24 cm) |
| Interior Depth 1 | 18.5" (47 cm) |
| Compressor Step Height | 4.63" (12 cm) |
| Compressor Step Width | 19.63" (50 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 2 |
| Temperature Range | 41°F to 65°F |
| Interior Height 2 | 26.0" (66 cm) |
| Interior Width 2 | 9.38" (24 cm) |
| Interior Depth 2 | 18.5" (47 cm) |
| Sound Level | 35.0 dB |
AVAILABLE UPGRADES
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC24GKS.pdf |
| TECHNICAL DRAWING (.dwg) | SWC24GKS_WINE_CELLER__A-C_2010_.dwg |
| USE & CARE | SWC24GKS_Manual_REV2_20180903.pdf |
| SUPPORT | SWC24GKS_Shelving_Guide.pdf |
