The SUMMIT SWC6GBI series showcases ETL-S-certified European wine cellars specifically tailored for commercial applications.

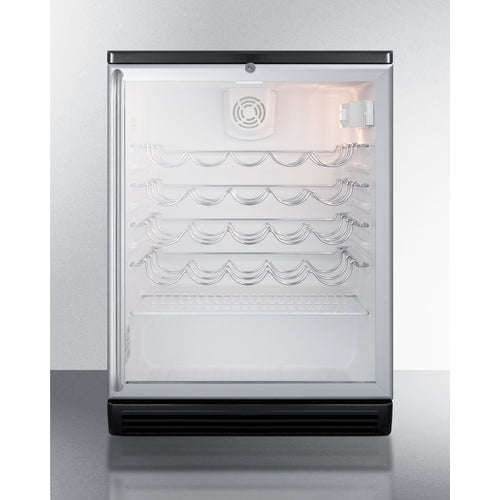

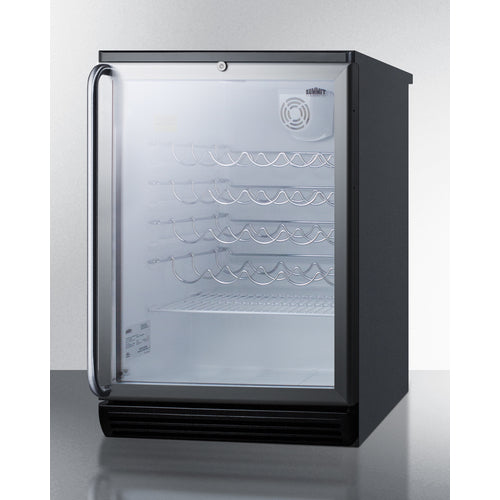

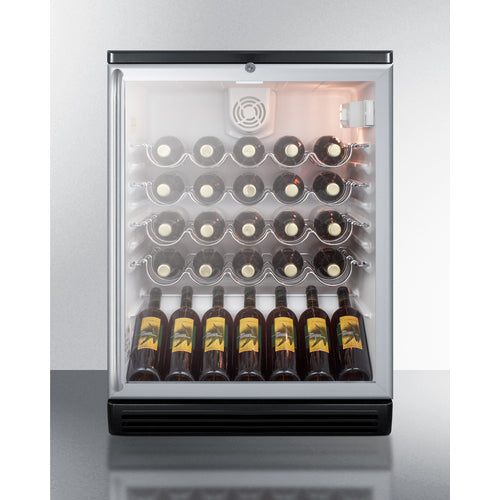

The SWC6GBLSH has a compact size of 24" in width and depth, and can be used as a standalone unit with its fully finished black cabinet. Its double-pane tempered glass door allows for a complete view while ensuring added safety. The unit also comes with a brushed stainless steel towel bar handle that adds a professional touch. The lock is conveniently placed near the top of the door for easy access.
The SWC6GBLSH features adjustable scalloped shelves specifically designed for secure bottle storage. The white interior provides enhanced visibility, allowing your collection to be prominently displayed. An interior light with an on/off rocker switch is conveniently located behind the adjustable dial thermostat.
The SWC6GBLSH is manufactured in Europe and adheres to NSF-7 standards for commercial use, as confirmed by its ETL-S listing. Alternative handle styles and door tint options are also provided for selection.
These models are primarily designed for storing white wine, but a digital thermostat can be added for red wine temperatures.
FEATURES
ETL-S is listed to NSF-7 for use in food service establishments
Less than 24" wide to fit tight spaces
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
Keyed lock for secure interior, conveniently located at the top of the door
Allows the unit to be used freestanding
Professional handle in brushed stainless steel
Reduced maintenance with auto defrost system
Fan-forced cooling helps to maintain a more evenly cooled interior
Curved shelves designed for the ideal storage of wine bottles
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Illuminate your collection with an interior light controlled by a rocker on/off switch
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
Environmentally friendly design
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.5" (85 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu. ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101002002 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Condensor Location | Rear of Unit |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout | CAS3 3" casters |
| SCD - Self-closing door | LHD - Left-hand door swing |
| DT - Digital thermostat | Legs to raise unit height |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBLSH.pdf |
| USE & CARE | SWC6GBL_BI_ADA_manual.pdf |
