The Summit SWC6GBI series boasts ETL-S-listed European wine cellars specifically crafted for commercial use.

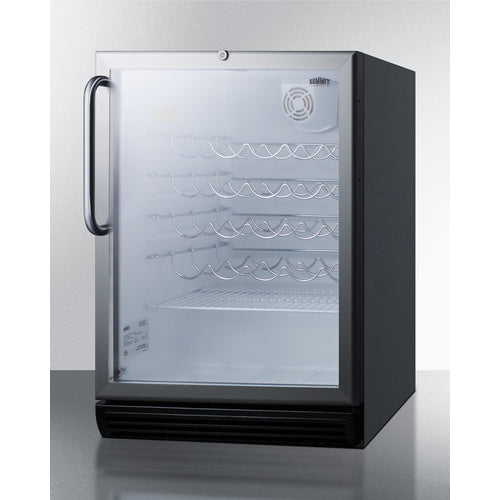

The Summit Appliance SWC6GBLTBADA is sized at 24" and has a height of 32", making it ideal for any ADA-compliant setting. Its double-pane tempered glass door provides a clear view and added security, featuring a brushed stainless steel towel bar handle. The lock is conveniently located near the top of the door for easy access. This model has a black cabinet and can be used as a freestanding unit. It is also available in built-in configurations.

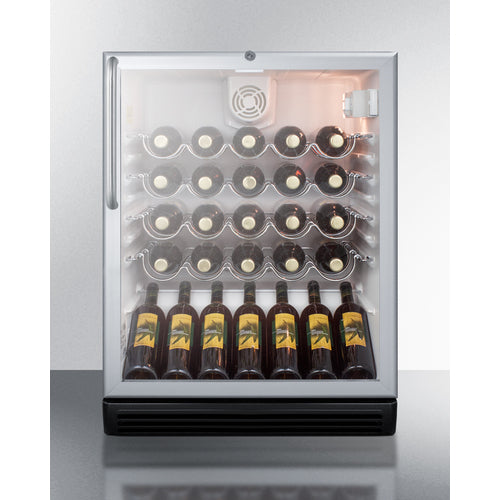

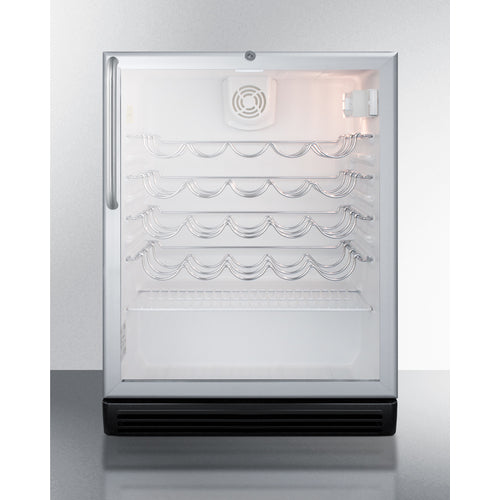

The Summit Appliance 36 Bottle 24" Wide Wine Cellar, ADA Compliant with a Short Towel Bar Handle features adjustable scalloped shelves that securely hold bottles in place. The white interior enhances visibility, allowing your collection to be easily seen. This unit also comes with an interior light and on/off rocker switch, conveniently located behind the adjustable dial thermostat.
The SWC6GBLTBADA is manufactured in Europe and meets ETL-S and NSF-7 standards for commercial use. A variety of handle styles and door tint options are also offered for this product.
These models are specifically designed for storing white wine, but can also be upgraded with a digital thermostat to maintain optimal temperatures for red wine.
FEATURES
32" high for use in ADA-compliant settings
ETL-S is listed to NSF-7 for use in food service establishments
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
A curved stainless steel handle provides generous room for a comfortable grip
Keyed lock for secure interior, conveniently located at the top of the door
Reduced maintenance with auto defrost system
Fan-forced cooling helps to maintain a more evenly cooled interior
Curved shelves designed for the ideal storage of wine bottles
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Illuminate your collection with an interior light controlled by a rocker on/off switch
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
Allows the unit to be used freestanding
Environmentally friendly design
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu. ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022642 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout | DT - Digital thermostat |
| SCD - Self-closing door | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBLTBADA.pdf |
| USE & CARE | SWC6GBL_BI_ADA_manual.pdf |
