The SUMMIT SWC6GBI series boasts ETL-S listed European wine cellars specially crafted for commercial purposes.

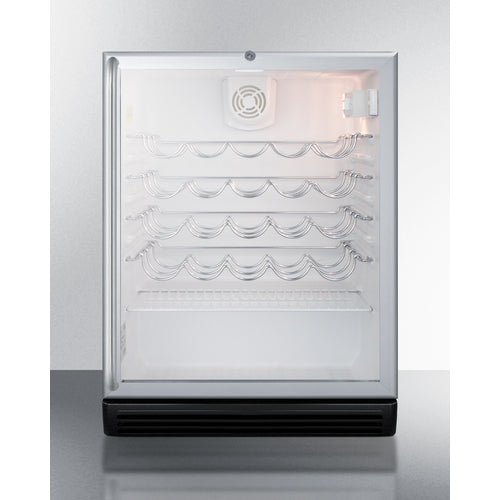

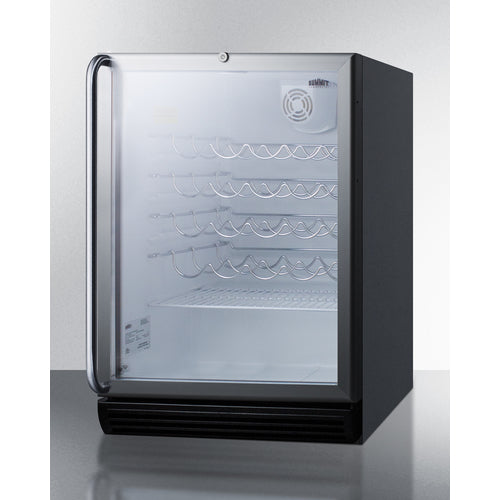

This Summit Appliance wine cellar, the SWC6GBLSHADA, features a 24" footprint and stands at 32" tall, making it ideal for ADA compliant spaces. The double pane tempered glass door provides a clear view while protecting your wine collection, and is equipped with a long, brushed stainless steel towel bar handle. The lock is conveniently located at the top of the door for easy access. This unit is designed for freestanding use and comes in a sleek black cabinet. Built-in options are also an option.

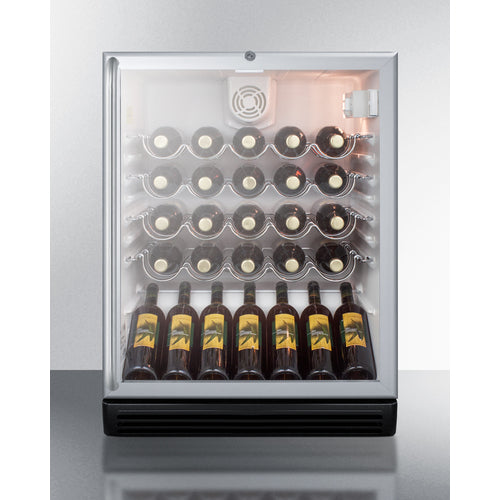

The Summit Appliance 36 Bottle 24" Wide Wine Cellar is ADA Compliant and equipped with adjustable scalloped shelves for securely storing bottles. Its white interior increases visibility and the adjustable thermostat, along with an on/off rocker switch for the interior light, makes it easy to use.
This European-made, ADA compliant SWC6GBLSHADA wine cellar is ETL-S listed to NSF-7 standards for commercial use. Optional handle styles and door tints are also offered.
This model is specifically designed for storing white wine, but it can also be upgraded with a digital thermostat to adjust for red wine temperatures.
FEATURES
32" high for use in ADA compliant settings
ETL-S listed to NSF-7 for use in foodservice establishments
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
Professional handle in brushed stainless steel
Keyed lock for secure interior, conveniently located at the top of the door
Reduced maintenance with auto defrost system
Fan-forced cooling helps to maintain a more evenly cooled interior
Curved shelves designed for the ideal storage of wine bottles
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Illuminate your collection with an interior light controlled by a rocker on/off switch
Allows the unit to be used freestanding
Environmentally friendly design
Temperature range
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| b | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022598 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| CAS3 3" casters | |
| DT - Digital thermostat | Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| SCD - Self-closing door | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBLSHADA.pdf |
| USE & CARE | SWC6GBL_BI_ADA_manual.pdf |
