The SUMMIT SWC6GBI series showcases European-inspired, commercially-approved wine cellars that are ideal for built-in installation under counters.

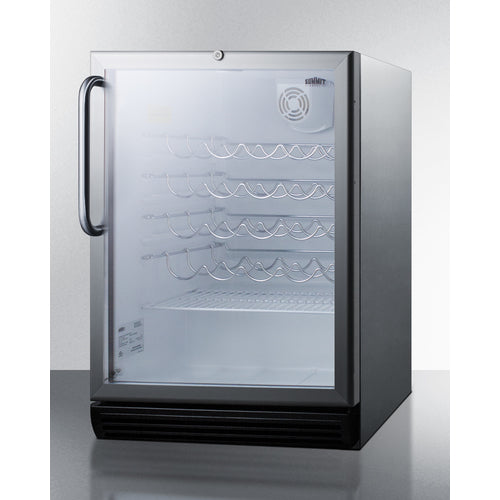

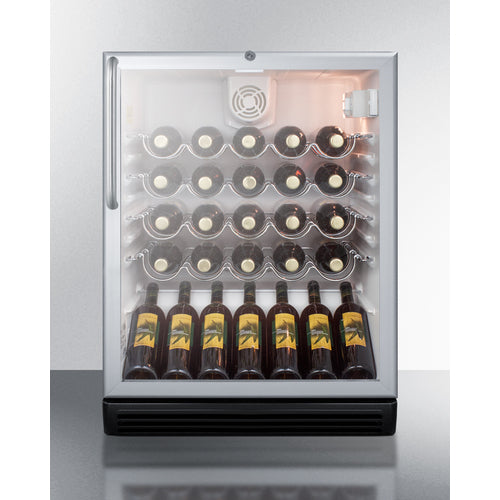

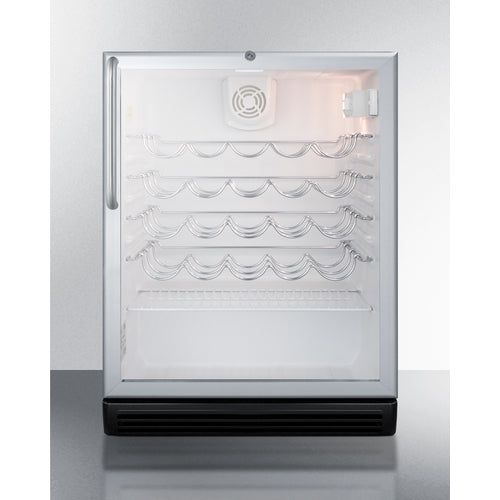

The SWC6GBLCSS has a front-breathing design and is only 24" wide, making it perfect for built-in installation under counters. It can also be used as a freestanding unit, thanks to its fully finished stainless steel wrapped cabinet. For reliable storage, it features a double-pane tempered glass door and a convenient lock located near the top. Completed with a professional touch, our signature brushed stainless steel towel bar style handle adds to the overall sleek look.
This built-in wine cellar features adjustable scalloped shelves that securely hold bottles in place. The white interior enhances visibility, making your collection easily noticeable. Additionally, it comes equipped with an interior light and adjustable dial thermostat controlled by an on/off rocker switch.
The SWC6GBLCSS, manufactured in Europe, is ETL-S listed to meet NSF-7 standards for commercial use. Different handle styles and door tint options are offered.
This particular model is intended for storing primarily white wine, although it can be enhanced with a digital thermostat to support red wine temperatures.
FEATURES
ETL-S is listed to NSF-7 for built-in or freestanding use in food service establishments
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully wrapped in stainless steel for lasting luxury
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
A curved stainless steel handle provides generous room for a comfortable grip
Keyed lock for secure interior, conveniently located at the top of the door
Less than 24" wide to fit tight spaces
Curved shelves designed for the ideal storage of wine bottles
Fan-forced cooling helps to maintain a more evenly cooled interior
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
Illuminate your collection with an interior light controlled by a rocker on/off switch
Reduced maintenance with auto defrost system
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
Environmentally friendly design
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.25" (84 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu. ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101019475 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| SS Hinges | Alarm/Thermometer - Factory-installed alarm with external temperature readout |
| CAS3 3" casters | DT - Digital thermostat |
| Legs to raise unit height |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBLCSS.pdf |
| USE & CARE | SWC6GBL_BI_ADA_manual.pdf |
