The Summit Appliance SWC6G Series offers European-designed wine cellars with glass doors that are approved for commercial use. These cellars are built with high-quality construction, perfect for long-term storage of red and white wines.

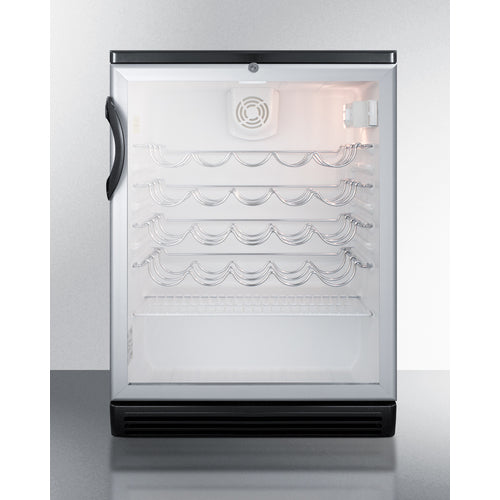

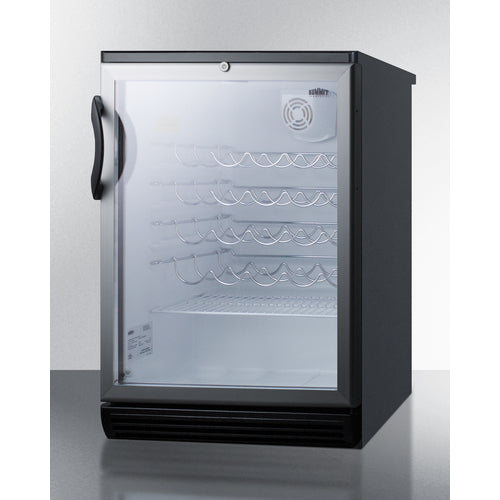

This wine cellar, the SWC6GBL, is designed to fit easily into tight spaces with its just-under-24" wide counter height. It features a finished black cabinet for freestanding use and a stylish reversible glass door with aluminum trim to showcase your collection. Additionally, for added security, there is a factory lock with a key.
Constructed with the necessary features to ensure optimal storage for white wine, the SWC6GBL is equipped with scalloped steel shelves that efficiently hold bottles within its spacious interior. For optional visibility, a rocker switch light has been installed. This appliance also boasts an automatic defrost function to simplify maintenance and a "hidden" evaporator for effortless cleanup.
Experience exceptional performance and sophisticated style with the SWC6GBL - the perfect solution for preserving your premium wine collection in any commercial or residential environment.
This product is specially designed for the storage of white wine, but with an optional digital thermostat, it can be adjusted to accommodate red wine temperatures as well.
FEATURES
ETL-S is listed to NSF-7 for use in food service establishments
Less than 24" wide to fit tight spaces
Allows the unit to be used freestanding
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
Keyed lock for secure interior, conveniently located at the top of the door
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Reduced maintenance with auto defrost system
Fan-forced cooling helps to maintain a more evenly cooled interior
Curved shelves designed for the ideal storage of wine bottles
Sits on top of the compressor and features wire slots ideal for holding bottles on their sides
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Illuminate your collection with an interior light controlled by a rocker on/off switch
Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
Environmentally friendly design
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.5" (85 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu. ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101001609 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Condensor Location | Rear of Unit |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout | CAS3 3" casters |
| DT - Digital thermostat | LHD - Left-hand door swing |
| SCD - Self-closing door | SS Hinges |
| Legs to raise unit height |
| Handle |
| HV | TB - Stainless steel towel bar style handle |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBL.pdf |
| TECHNICAL DRAWING (.dwg) | SCR600BLREFRIGERATOR.dwg |
| USE & CARE | SWC6GBL_BI_ADA_manual.pdf |
