SUMMIT SWC6GBIADA series features European designed, commercially approved wine cellars capable of built-in use under lower ADA compliant counters.

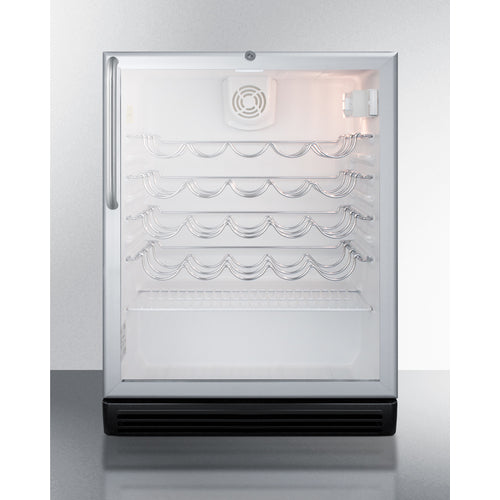

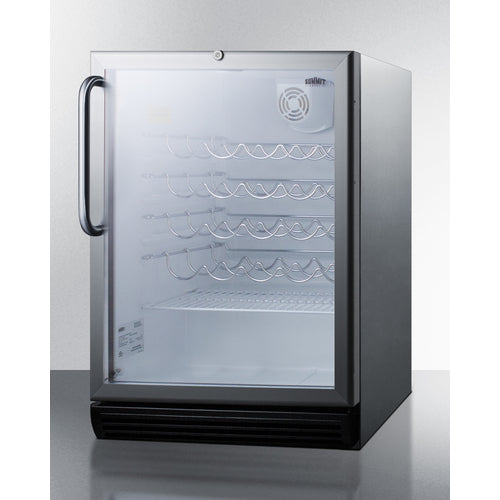

The SWC6GBLCSSADA is conveniently sized at just 24" wide, with a front-breathing design for built-in installation under counters. The fully finished stainless steel wrapped cabinet also allows freestanding use. This unit features a double pane tempered glass door for reliable storage. We include our signature towel bar style handle in brushed stainless steel to complete the professional look. The lock is located towards the top of the door for easier access.

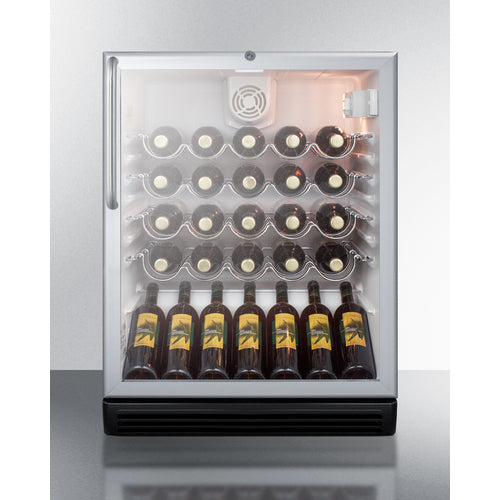

Inside, the SWC6GBLCSSADA includes adjustable scalloped shelves perfectly designed to hold bottles in place. The white interior helps to improve visibility, letting your collection stand out clearly. This unit includes an interior light with an on/off rocker switch located behind the adjustable dial thermostat.
The SWC6GBLCSSADA is made in Europe and is ETL-S listed to NSF-7 standards for commercial use. Additional handle styles and door tint options are available.
NOTE: These models are designed primarily for white wine storage but can be upgraded with a digital thermostat to accommodate red wine temperatures.
FEATURES
32" high to fit under lower ADA compliant counters
ETL-S listed to NSF-7 for use in foodservice establishments
Make the best use of space by installing your appliance under the counter and flush with other cabinets
Fully wrapped in stainless steel for lasting luxury
Display your collection behind a solid glass door trimmed in elegant brushed aluminum for a refined touch
Keyed lock for secure interior, conveniently located at the top of the door
A curved stainless steel handle provides generous room for a comfortable grip
Reduced maintenance with auto defrost system
Curved shelves designed for the ideal storage of wine bottles
Illuminate your collection with an interior light controlled by a rocker on/off switch
SUMMIT's original "hidden" evaporator is concealed in the wall so it never touches your fingers or food
Dial thermostat accommodates white wine temperature. If using this model for red wine storage, add a DT digital thermostat upon ordering
Environmentally friendly design
5ºC to 10ºC/41ºF to 50ºF; To reach warmer temperatures, order with our red wine digital thermostat option (10ºC to 18ºC/50ºF to 64ºF range)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Height to Hinge Cap | 32.38" (82 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Capacity | 5.5 cu.ft. (156 L) |
| Bottles | 36 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101022581 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Adjustable Shelves | Yes |
| Shelf Type | Scalloped |
| Shelf Qty | 4 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.67 oz. |
| High Side PSI | 124.0 |
| Low Side PSI | 30.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 20.75" (53 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 6.0" (15 cm) |
| Compressor Step Width | 20.75" (53 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
AVAILABLE UPGRADES
| Exterior |
| SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| SCD - Self-closing door | LHD - Left-hand door swing |
| Alarm/Thermometer - Factory-installed alarm with external temperature readout | SS Hinges |
| DT - Digital thermostat |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWC6GBLCSSADA.pdf |
| USE & CARE | WC6GBL_BI_ADA_manual.pdf |
