Summit Appliance offers a distinctive array of wine cellars specifically designed for optimal storage and bottle presentation.

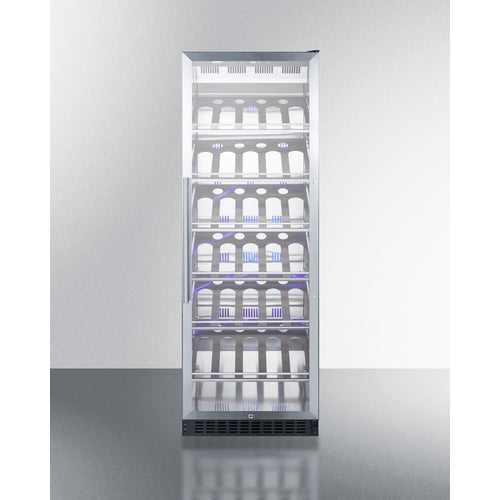

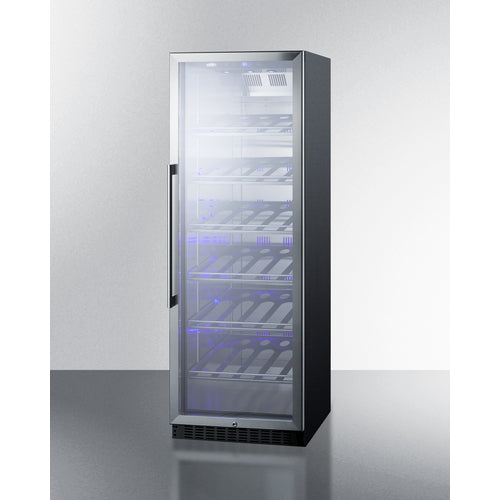

The SCR1401CH is an NSF-7-compliant upright wine cellar with a slim 24-inch footprint, occupying minimal floor space and boasting a spacious 12.6 cu. ft. capacity. Its self-closing stainless steel trimmed door, complete with a pro-style handle and factory-installed lock, ensures security. This model features a right-hand door swing, while the SCR1401LHCH offers a left-hand version. Additionally, this unit has a front-breathing cooling system for built-in installation and a fully finished exterior for freestanding use.

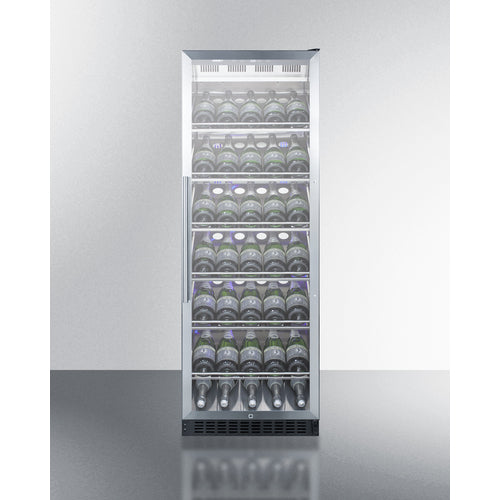

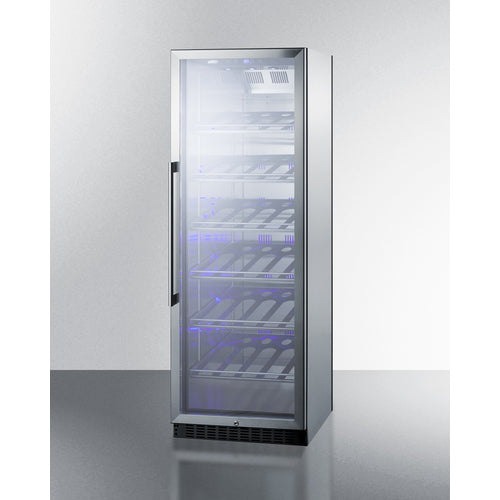

The SC1401CH and SCR1401CHCSS have stainless steel shelving specifically designed for champagne and sparkling wine bottles. The shelves are angled for a full label display and the interior walls and floor are also constructed from stainless steel for durability in commercial settings. The rear walls have LED lighting in a blue hue, and the unit offers a temperature range of 36 to 68ºF for programming the ideal settings for red, white, or sparkling wine. Other features include a high-temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.
Choose from a variety of options for the SCR1401CH, including a sleek stainless steel finish and different sizes. Our website offers a complete range of commercial-grade wine cellars.
FEATURES
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
Stainless steel shelves are specially sized to store wider wine and champagne bottles
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves
Fully lit interior with a striking blue LED hue, providing an attractive and energy-efficient view
Just 24" wide and deep for an easy fit in any setting
No-frost convenience requires no manual defrosting
Walls are constructed from stainless steel for added strength and easy cleanup
Heat-safe glass door with stainless steel trim offers full display down to the floor
The door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures

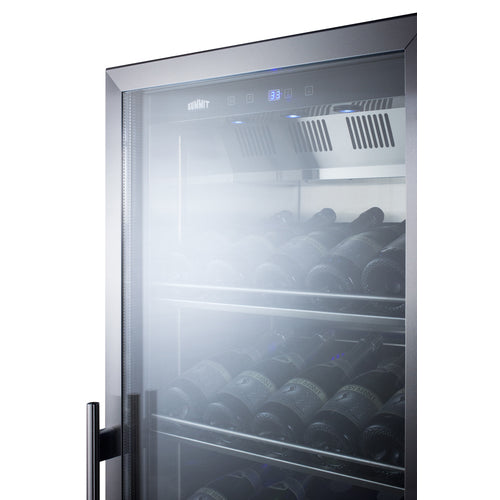

Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Keyed lock for a secure interior (2 keys included)
The internal fan ensures the interior is evenly cooled from top to bottom
Alarm sounds if the interior temperature rises out of the suggested range
Attractive design in stainless steel to complete the look
For this unit with a left-hand door swing, order SCR1401LCH
The optional setting lets you disable the lighting and alarm for up to 48 hours
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
The unit will retain its last settings when power is restored in the event of power loss
Allows the unit to be used freestanding
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 69.75" (177 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.75" (60 cm) |
| Depth with Handle | 25.63" (65 cm) |
| Depth with door at 90° | 46.75" (119 cm) |
| Capacity | 12.6 cu. ft. (357 L) |
| Bottles | 35 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz 270.0 lbs. (122 kg) |
| Weight | 250.0 lbs. (113 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059822 761101065052 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 59.75" (152 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Temperature Range | 36 to 68ºF |
| Interior Height 2 | 4.5" (11 cm) |
| Interior Width 2 | 20.0" (51 cm) |
| Interior Depth 2 | 4.5" (11 cm) |
| Sabbath Mode | Yes |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | SCR1401CH.obj |
| ASSEMBLY DRAWING | SCR1401CH.dwg |
| USE & CARE | X_and_CH_Series_Commercial_Wine_Cellars_Use_and_Care.pdf |
| REVIT MODEL | Qf_Summit_SCR1401_24_inches_Wide_Beverage_Center.rfa |
| DRAWING | SCR1401CH.3ds |
