sUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

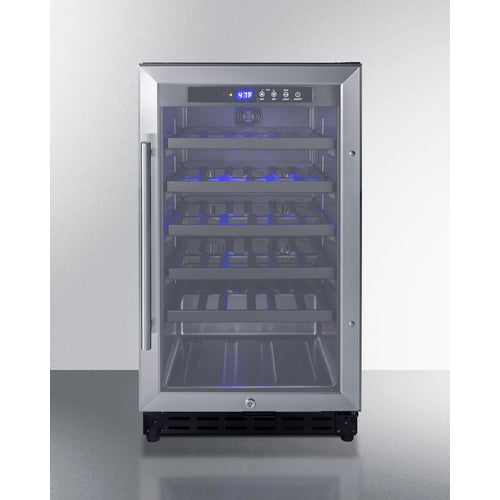

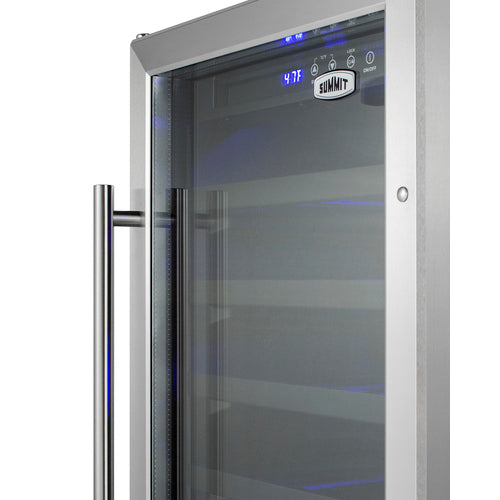

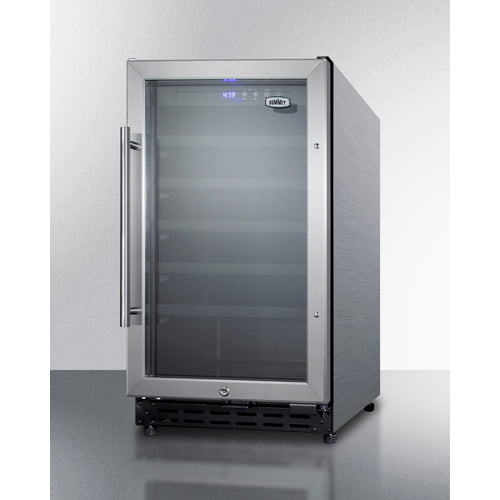

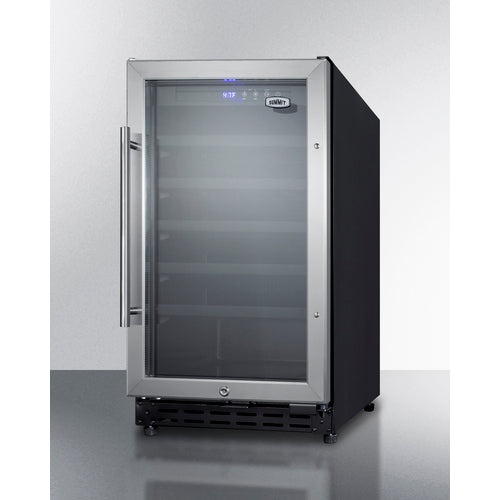

The SWC1840BADA, SWC1840BCSSADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

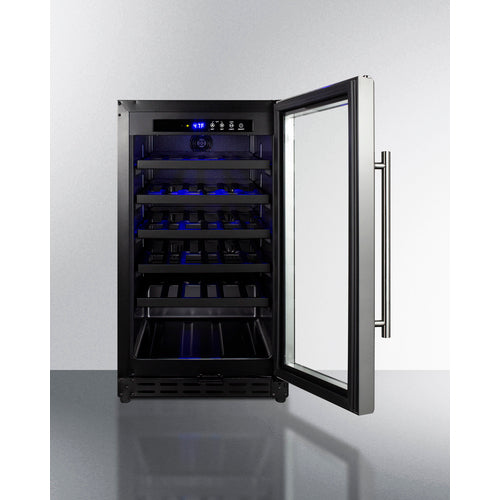

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.
With its slim fit and convenient design, the SWC1840BADA, SWC1840BCSSADA makes an attractive addition to any room.
FEATURES
ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments
32" height is designed to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter

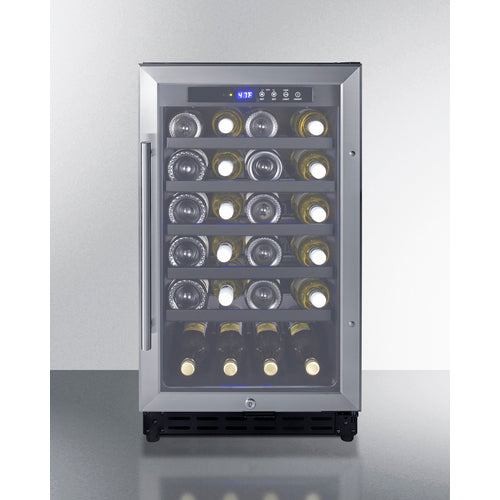

Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles
Provides a full display of stored contents with a heat-safe double tempered design
Keyed security on the door
Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination with an on/off switch
Reduced maintenance with the convenience of auto defrost
5 shelves offer the perfect storage for wine bottles in a classic wooden finish
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Stainless steel look for added elegance
Space saving design
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.38" (80 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 34 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) 103.0 lbs. (47 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101056197 761101056210 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 10.6 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Level Legs | 4 |
| Temperature Range | 41º to 68ºF |
| Sound Level | 33.8 dB |
AVAILABLE UPGRADES
| Exterior | SSK - Stainless steel kickplate | LHD - Left-hand door swing |
| Latch - Factory-installed door latch requires manual release to open unit |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | SWC1840ADAWINECELLARA-C2000.dwg |
| SUPPORT | SWC1840B_User_Manual.pdf |
| USE & CARE | SWC1840_Shelving_Guide.pdf |
