SUMMIT's collection of built-in under-counter wine cellars offers quality storage with user-friendly convenience and elegant style.

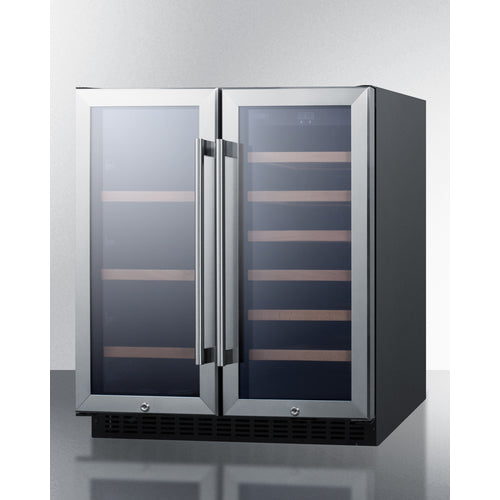

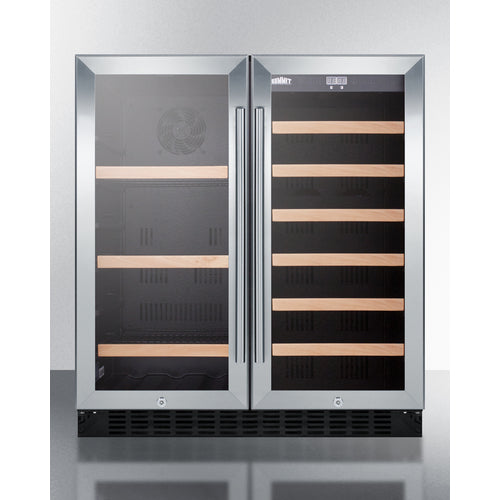

The Summit Appliance SWBV3071 is a versatile built-in wine and beer cooler that can also be used freestanding. It features two stainless steel trimmed glass doors that open with a unique French door swing and come with factory-installed locks and professional handles. The front locks are keyed for added security for both compartments. The sealed back design adds convenience for cleaning.
Equipped with separate digital thermostats for each zone, this wine and beverage center offers the flexibility to store craft beer or white wine on one side and preserve red wine on the other. On the left, a beverage compartment with three black wire shelves and wooden trim matches the six wooden shelves on the right. Both sections have slotted floors to accommodate extra bottles. The digital control panel displays temperatures in either Celsius or Fahrenheit with its LED readout. Recessed, white LED lighting adds an attractive and efficient touch.
The SWBV3071 offers an appealing design and convenient functionalities, making it an ideal choice for households seeking a versatile under-counter beverage storage solution.
FEATURES
Meets UL-471 commercial standards
Make the best use of space by installing this unit under the counter
Two independent zones allow you to store both red and white wine or craft beer in the proper conditions
The interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit

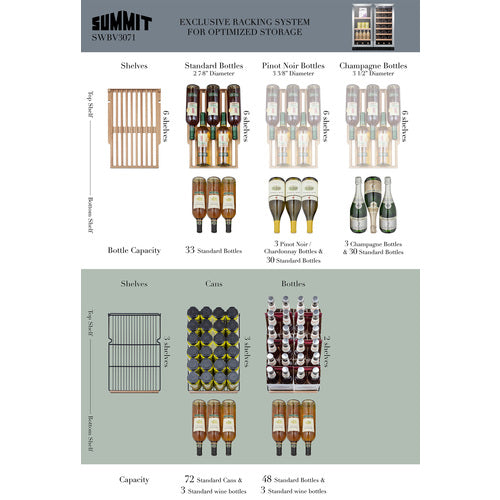

Store up to 33 standard Bordeaux-style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy-style wine or champagne bottles, you can remove every other wine shelf
Gentle and energy-efficient LED lighting in an attractive white hue offers an elegant view of stored items
The red wine section includes six removable wooden shelves for proper bottle storage
The craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section
The floor is specially designed with slots to allow you to store larger champagne or Burgundy-style bottles safely on their sides
Sleek stainless steel handles add an elegant touch to any setting
French door swing offers a modern look, with stainless steel door trim for an added accent
Keyed locks on both zones offer separate security for interior contents
Reduced user maintenance with automatic defrost
Internal fans ensure both interiors have a consistent temperature from top to bottom
Setting allows you to disable the digital displays, lights, and alarms for religious observance.
An audible alarm sounds if the interior temperature rises above the recommended range
The alarm will sound if either door is left open for over 60 seconds
In the event of power loss, the unit will retain its last temperature settings upon power recovery
Space-saving design with no exposed coils in the rear offers easy cleanability
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 29.5" (75 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 37.0" (94 cm) |
| Capacity | 5.8 cu. ft. (164 L) |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 132.0 lbs. (60 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101050423 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | French |
| Adjustable Shelves | Yes |
| Shelf Type | Wire and Wood |
| Shelf Qty | 9 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.38" (67 cm) |
| Interior Width 1 | 12.0" (30 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 3.0" (8 cm) |
| Compressor Step Width | 26.75" (68 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 2 |
| Temperature Range | Left side: 36º to 43ºF; Right side: 41º to 72ºF |
| Interior Height 2 | 24.75" (63 cm) |
| Interior Width 2 | 12.0" (30 cm) |
| Interior Depth 2 | 17.5" (44 cm) |
| Sabbath Mode | Yes |
DOWNLOADS
| BROCHURE w/ DRAWINGS | SWBV3071.pdf |
| TECHNICAL DRAWING (.dwg) | SWBV3071_WINE_BEVER._CENT.__A-C_2000_.dwg |
| USE & CARE | Manual_SWBV3071_SWC3072_SWR3073_SWFZ3074.pdf |
| REVIT MODEL | QF_Summit_SWBV3071_Undercounter_Dual_Zone_Wine.rfa |
| MSDS INFORMATION | R600a_K.pdf |
| SUPPORT | SWBV3071_Shelving_Guide.pdf |
