Summit's shallow-depth series of undercounter refrigeration is perfect for small spaces in kitchens, wet bars, and other settings. The SDHW2442PNR is a 24” wine cellar that is only 18” deep, making it ideal for compact areas. Its 34” height allows for easy installation under any counter space.
The built-in design is complemented by a fully finished black cabinet, making it suitable for freestanding use as well. Plus, the rear and right angle cord ensures a seamless fit. For added security, there is a lock located in the kickplate. With its fully articulating European hinge and 2-piece bracket kit for custom door trim, the panel-ready SDHW2442PNR offers easy installation and a user-reversible door swing for convenience.
The interior is constructed with stainless steel, providing increased durability and sanitation. Additionally, there are dimmable white LED lights built into the side walls, giving a sophisticated display effect. The temperature can be adjusted between 41º and 68ºF with the angled digital control panel, perfect for storing red, white, or sparkling wine bottles. Our unique jet black steel shelves slide out effortlessly, with a classy stainless steel front trim.
The fan-forced cooling system ensures consistent temperature distribution and quick temperature recovery. Other features include an open-door alert, high-temperature alert, and a Sabbath mode option that deactivates specific electrical features for up to 96 hours during religious observances.
The SDHW2442PNR is certified to meet NSF-7 commercial standards and is also suitable for residential use. Its high-end design, user-friendly features, and remarkably shallow depth make it an ideal option for a wide range of environments. Complete the set by pairing it with our SDHG2443PNR beverage center. There are alternative 18” deep options available in widths of 15”, 19”, and 24”, such as outdoor refrigerators and refrigerator drawers.
Please note that the interior of this unit can accommodate up to 18 Bordeaux-style bottles. To ensure a proper fit, we suggest placing the cork end of the bottle towards the back of the unit. While wider Burgundy bottles will generally fit on the shelves, the capacity may vary depending on your specific bottle sizes. If needed, you may remove shelves to make room for thicker bottles, such as champagne or sparkling wine.
FEATURES
Single zone built-in wine cooler for residential or commercial storage
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Elegant design offers a clear but protected view of your interior
Smoother opening and a better fit with an integrated European hinge
Keyed lock for a secure interior (2 keys included)
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
No-frost operation for minimum user maintenance
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature
Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness
Audible alarm sounds if the interior temperature rises out of set range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Alarm sounds if the door is left open for more than 60 seconds
Allows the unit to be used freestanding
Space-saving design with no exposed coils that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Runs under 34 dB for a quiet performance that won't interrupt your conversation
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

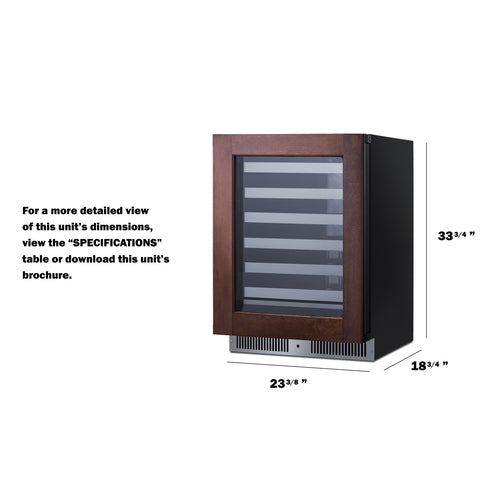

| Height of Cabinet | 33.75" (86 cm) |
| Width | 23.38"(59 cm) |
| Depth | 18.0" (46 cm) |
| Depth with Handle | 19.75" (50 cm) |
| Depth with door at 90° | 41.25" (105 cm) |
| Capacity | 3.25 cu.ft. (92 L) |
| Bottles | 33 bottles |
| Defrost Type | Frost-Free |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 114.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145723 761101145785 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 26.0" (66 cm) |
| Interior Width 1 | 19.25"(49 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.25" (49 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41°F to 68°F |
| Sabbath Mode | Yes |
| Sound Level | 33.4 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | |
| TECHNICAL DRAWING (.dwg) | SDHW2442PNR.dwg |
| ASSEMBLY DRAWING | SDHW2442PNR-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDHG_SDHW_CL18_ALBV_AL57GPNR_Use_and_Care_Guide_4-29-24.pdf |
