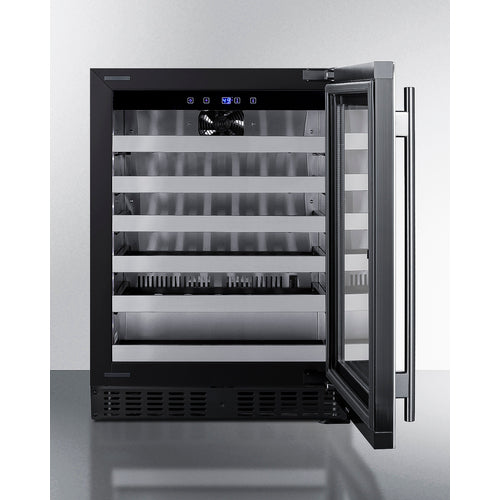

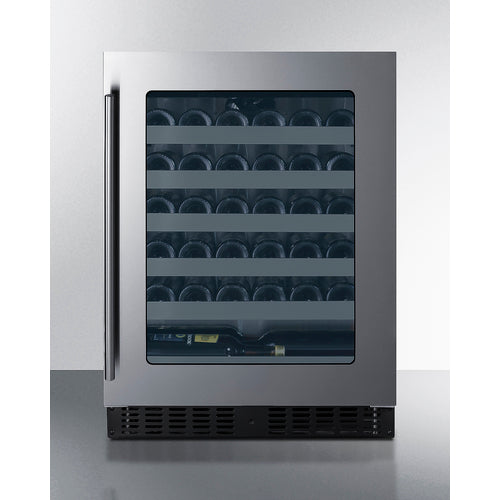

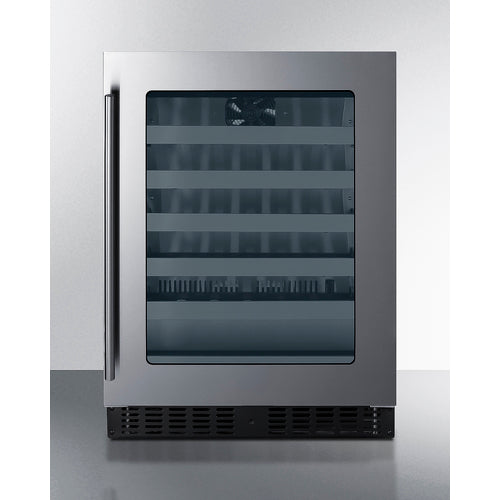

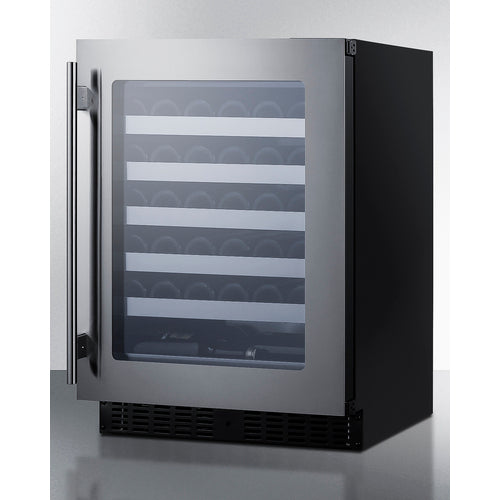

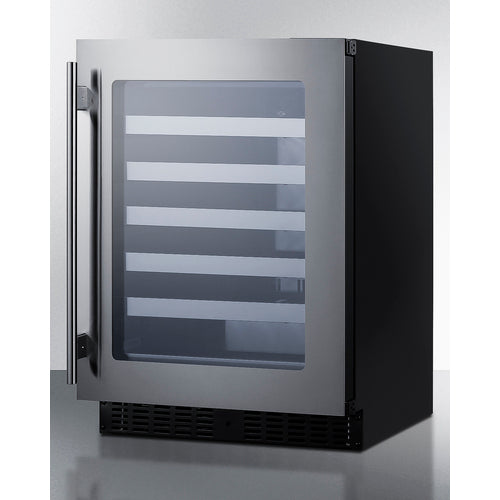

Summit's shallow depth series of built-in under-counter refrigeration provides full functionality for kitchens with limited space, such as islands, wet bars, and other settings. The ASDW2412 model is a 24" wide, 33-bottle, single-zone wine cellar that is under 18" deep. It has a 32" height to fit under lower ADA-compliant counters, with adjustable legs and a sliding kickplate cover that can raise the overall height to 34" for standard counter spaces. The front-breathing system allows for built-in installation, while the fully finished black cabinet allows for freestanding use. The seamless stainless steel trim and double pane tempered glass door give it a sophisticated look and a professional stainless steel handle is included. The unit has a sealed rear and right angle cord for a perfect fit, and the door is user-reversible with a front lock for added security.

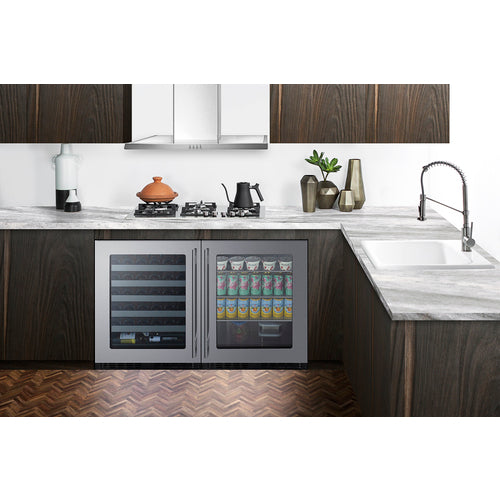

Crafted from durable stainless steel, the ASDW2412 boasts long-lasting construction and improved sanitation. Elegant white LED lighting adorns the side walls, providing the perfect conditions for displaying your collection. With adjustable temperature controls ranging from 41º to 64ºF, you can accommodate red, white, and sparkling wines with ease. Our jet-black steel shelves feature smooth ball-bearing glides and stainless steel front trim, completing the unit's timeless aesthetic. Enjoy even temperature distribution and rapid temperature recovery with fan-forced cooling. Additional features include an open door and high-temperature alarm, as well as a Sabbath mode option for religious observance. The ETL-S listed ASDW2412 adheres to NSF-7 commercial standards and can also be used in residential settings. With its deluxe design, user-friendly features, and uniquely shallow depth, this unit offers exceptional value for various applications. Complete your collection by pairing it with our ASDW2411 beverage center.
NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please take care when loading and unloading this section.
FEATURES
Single-zone wine cooler for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space
32" height allows easy installation under lower ADA-compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard-sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
The walls and floor are constructed from stainless steel for added strength and easy cleanup
Elegant design offers a clear but protected view of your interior
Glass is framed by with a flush one-piece stainless steel trim for an elevated look
Keyed lock for a secure interior (2 keys included)

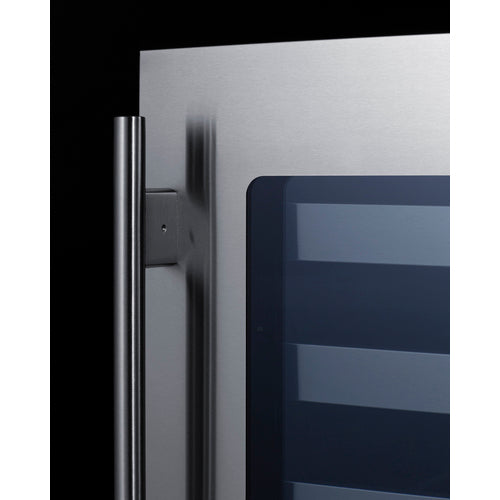

The stainless steel handle completes the look
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

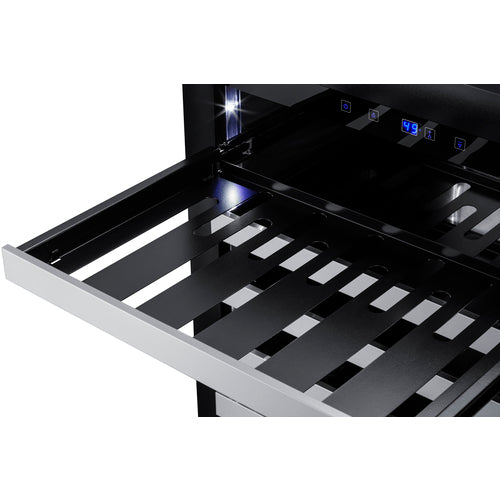

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look
Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

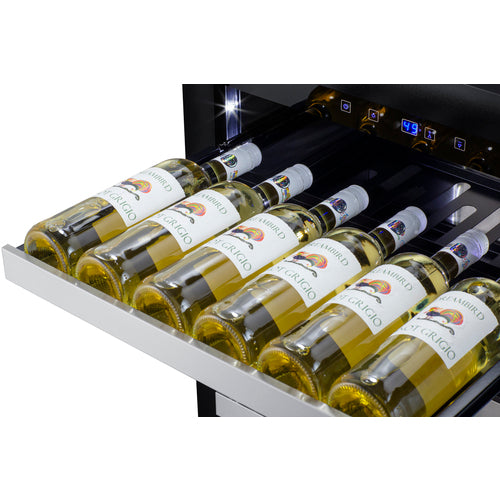

33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
An audible alarm will sound if the door is left open longer than one minute
High-temperature alarm sounds if the unit's interior goes out of the recommended range
The optional setting lets you disable the lighting and alarm for up to 48 hours
The unit will retain its last settings when power is restored in the event of power loss
The design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability

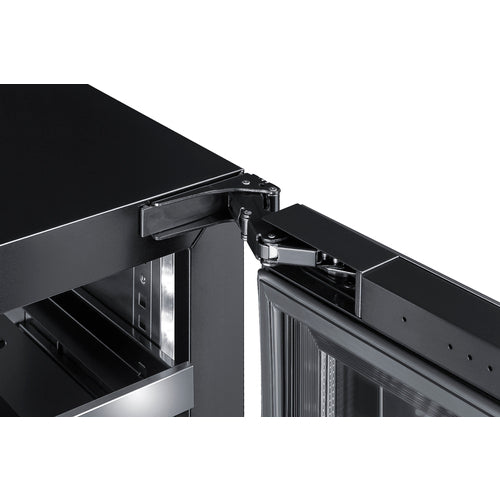

Smoother opening and a better fit with an integrated European hinge
User-reversible door swing for added flexibility
Allows the unit to be used freestanding
ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|

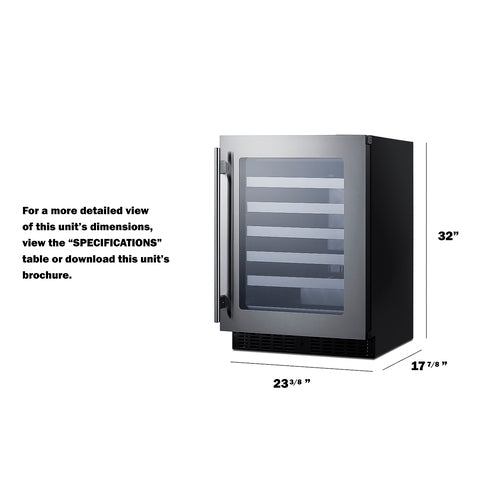

| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.38" (59 cm) |
| Depth | 17.75" (45 cm) |
| Depth with Handle | 19.63" (50 cm) |
| Depth with door at 90° | 39.88" (101 cm) |
| Capacity | 3.25 cu. ft. (92 L) |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 120.0 lbs. (54 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101079462 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Steel |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.38 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 24.25" (62 cm) |
| Interior Width 1 | 19.5" (50 cm) |
| Interior Depth 1 | 12.25" (31 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.5" (50 cm) |
| Compressor Step Depth | 4.5" (11 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS | ASDW2412.pdf |
| TECHNICAL DRAWING (.dwg) | ASDW2412.dwg |
| ASSEMBLY DRAWING | ASDW2412-Assembly.pdf |
| USE & CARE | ASDG_ASDW_SDHG_SDHW_CL18_ALBV_AL57GPNR_Use_and_Care_Guide_4-29-24.pdf |
| REVIT MODEL | QF_Summit_ASDW2412_ADA_Compliant_Wine_Cellar.rfa |
| MSDS INFORMATION | R600a_K.pdf |
