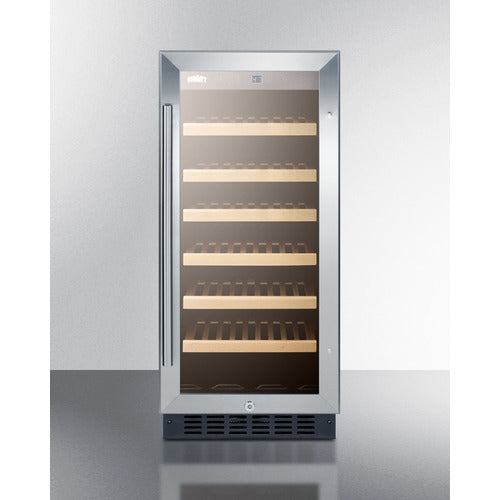

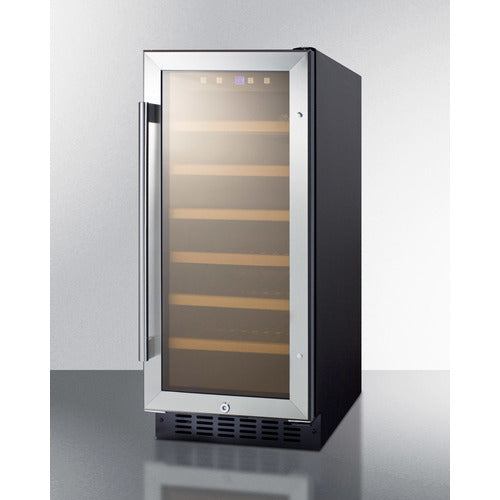

Provide your wine collection with optimal care using the SUMMIT SWC1535B, a sleek wine cellar specifically designed for built-in installation under counter space.
At a compact width of only 14 ¾", the SWC1535B and SWC1535BCSS are designed to accommodate up to 33 bottles of Bordeaux-style wine on six wooden slide-out shelves. For wider Burgundy style bottles, simply remove every other shelf to ensure a perfect fit. The tempered glass door, framed in elegant stainless steel, allows for a sophisticated view with the help of an interior LED light. Additionally, a lock and professional handle are factory-installed on the reversible door. The digital thermostat inside makes temperature control effortless and easy to understand, complete with indicator lights for optimal storage of reds, whites, and sparkling wines.

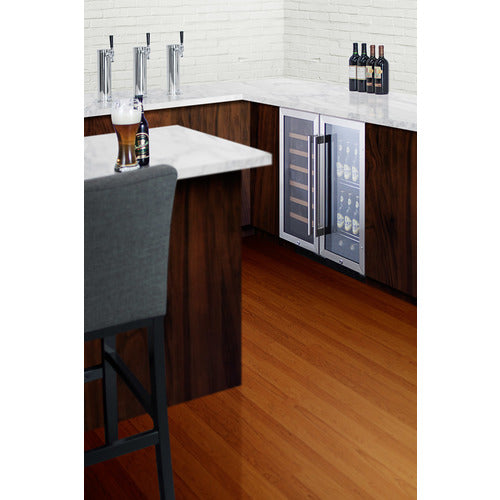

The SWC1535B and SWC1535BCSS feature a sleek and modern jet-black cabinet and a flush-back design, making it simple to install under any counter. This versatile unit can be used as a built-in or freestanding wine cellar. For a beverage refrigerator with a matching glass door, consider the SCR1536B.
This model replaces SUMMIT SWC1535.
FEATURES

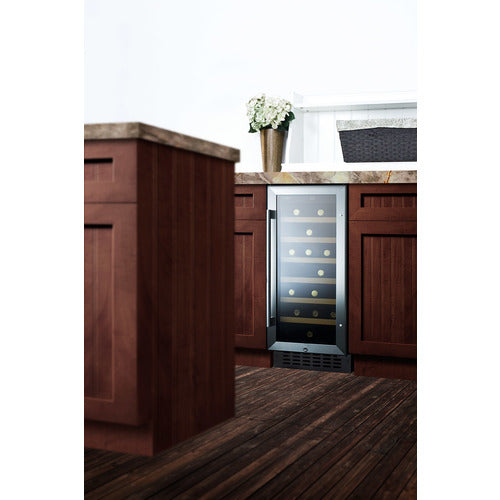

Make the best use of space by installing your appliance under the counter
ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Allows the unit to be used freestanding
Provides a full display of your stored collection with a heat-safe double-tempered design
Keyed security on the wine cellar door
Space-saving design
Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines
Temperature readout can be shown in Celsius or Fahrenheit

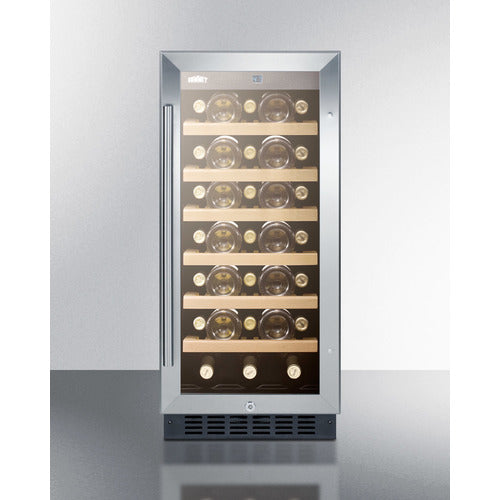

Classic look holds up to 33 bottles
On/off button to illuminate your collection
Reduced maintenance and steady temperature performance

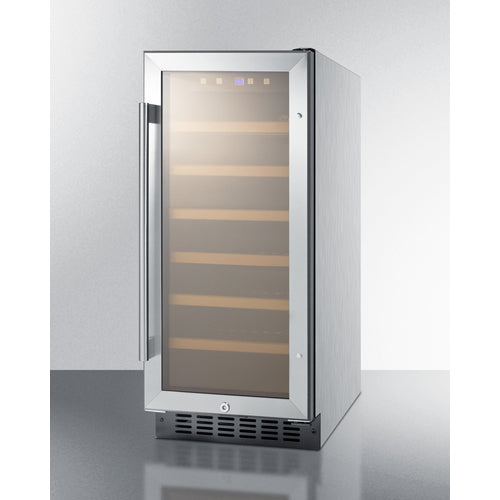

Stainless steel look for added elegance
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

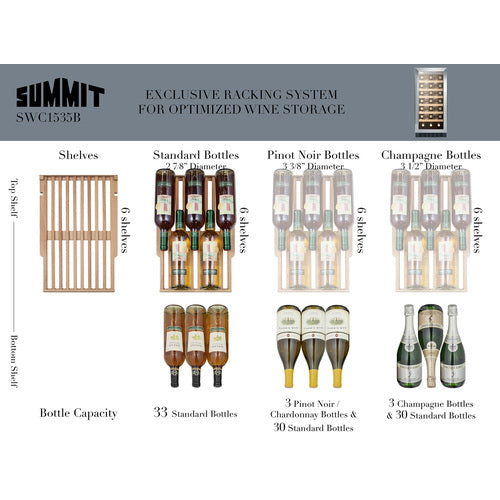

Interior can store up to 33 standard Bordeaux-style bottles. The floor can hold three wider bottles (including the Burgundy style or champagne). Alternatively, you can remove every other shelf to accommodate wider bottles
The optional setting lets you disable the lighting and alarm for up to 48 hours
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth, and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.88" (86 cm) |
| Width | 14.75" (37 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.63" (63 cm) |
| Depth with door at 90° | 36.25" (92 cm) |
| Capacity | 2.94 cu. ft. (83 L) |
| Bottles | 33 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 77.0 lbs. (35 kg) 87.0 lbs. (39 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101029436 761101052441 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 27.0" (69 cm) |
| Interior Width 1 | 12.0" (30 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
| SSK - Stainless steel kickplate |
| DOOR |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SWC1535B.pdf SWC1535BCSS.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| REVIT MODEL | |
| SUPPORT | |
| MSDS INFORMATION |
