Summit produces high-end, undercounter appliances that add a touch of contemporary luxury to any home.

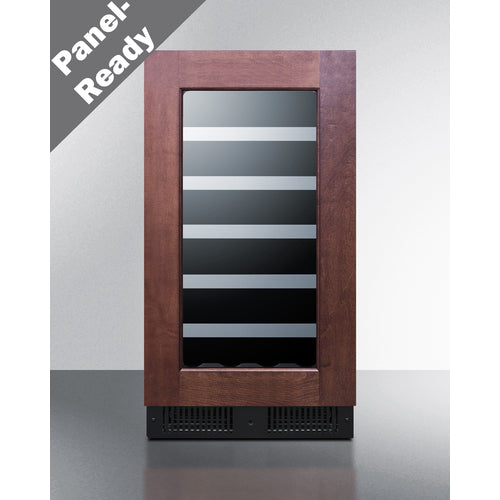

The CL18WCPNR, CL18WCPNRLHD is an 18" wide single zone wine cellar, featuring a front breathing design that allows for both built-in and freestanding installation. Its jet black finish and fully finished cabinet make it a versatile addition to any space. You can also customize its appearance with overlay panels using the fully articulating European-style hinge and 2-piece bracket kit. The interior boasts white LED lighting on the side walls to beautifully showcase your wine collection, while a lock in the kickplate ensures added security.
The CL18WCPNR, CL18WCPNRLHD has a maximum capacity of 29 bottles that can be stored in Bordeaux or Burgundy style. The stainless steel trimmed black wooden shelves and digital thermostat control panel make for effortless and intuitive operation, with the temperature displayable in Celsius or Fahrenheit. Other notable features include a user-reversible door, right angle plug to save space, sealed back for easy cleaning, and a Sabbath mode setting. In addition, there is an audible alarm to warn against leaving the door open or exceeding the recommended temperature, ensuring optimal protection for your wine collection.
Elevate your small kitchen or wet bar space with the elegant and versatile CL18WCPNR and CL18WCPNRLHD models. For a beverage center that complements this luxurious design, consider the CL181WBVPNR.
FEATURES
Undercounter single-zone wine cellar for built-in or freestanding use
Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards

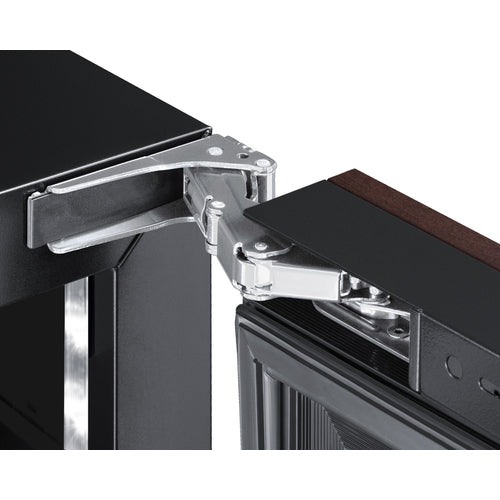

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
Heat-safe glass ensures your collection is protected
Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit
Black wooden shelves feature stainless steel trim for an added touch of elegance
Unique white lighting located inside the walls offers elegant illumination for the jet-black interior
Vertically mounted handle in brushed stainless steel
User-reversible door swing allows for more flexibility in placing the unit
The floor is specially slotted to store wine bottles safely in place
The keyed lock located in the kickplate for optional security
Audibly alerts if the interior temperature is too warm
An audible alarm will sound if the door is left ajar for over 60 seconds
The internal fan ensures the interior is evenly cooled from top to bottom
Reduced maintenance and steady temperature performance
Space-saving design with easier cleanability
The unit will retain its last settings when power is restored in the event of power loss
Allows the unit to be used freestanding
Smoother opening and a better fit with an integrated European hinge

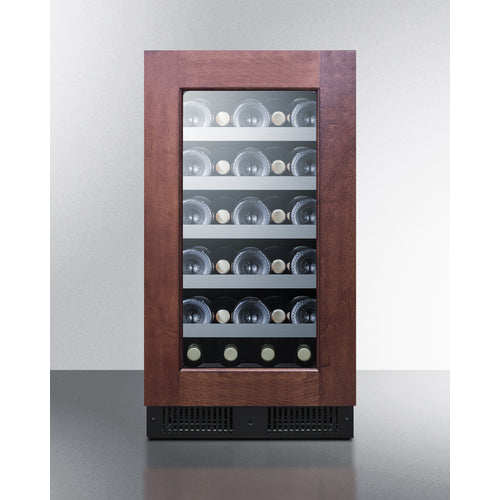

Holds up to 29 Bordeaux or Burgundy-style bottles
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 17.5" (44 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 39.63" (101 cm) |
| Capacity | 2.9 cu. ft. (82 L) |
| Bottles | 29 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145594 761101145631 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 23.0" (58 cm) |
| Interior Width 1 | 12.25" (31 cm) |
| Interior Depth 1 | 17.5" (44 cm) |
| Compressor Step Height | 4.5" (11 cm) |
| Compressor Step Width | 12.0" (30 cm) |
| Compressor Step Depth | 5.75" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 72ºF |
| Interior Height 2 | 3.25" (8 cm) |
| Interior Width 2 | 12.25" (31 cm) |
| Interior Depth 2 | 5.25" (13 cm) |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Exterior |
Latch - Factory-installed door latch requires manual release to open unit |
LHD - Left-hand door swing |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL18WCPNR.pdf CL18WCPNRLHD.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| MSDS INFORMATION |
