FEATURES

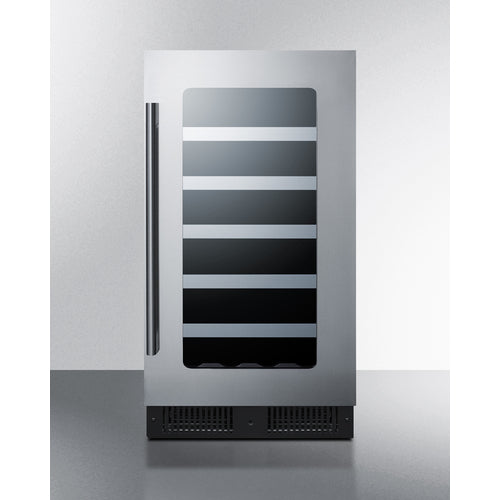

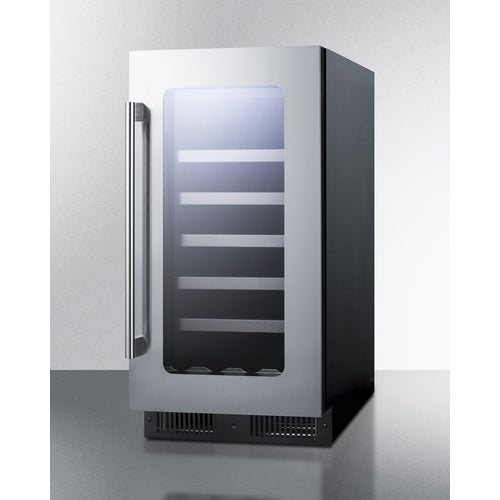

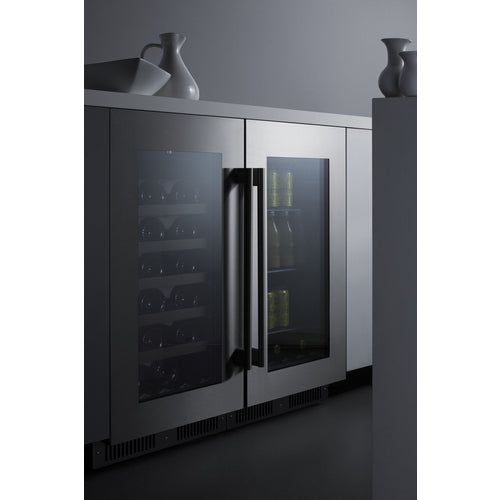

Undercounter single-zone wine cellar for built-in or freestanding use
Make the best use of space by installing your appliance under the counter
Meets UL-471 commercial standards
Heat-safe glass ensures your collection is protected
One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

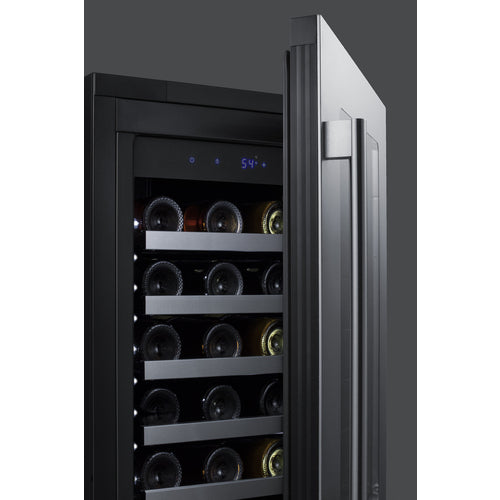

Electronic controls for precise temperature management
Temperature readout can be shown in Celsius or Fahrenheit

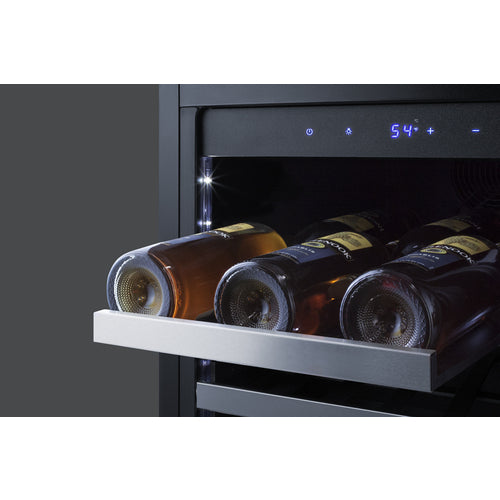

Black wooden shelves feature stainless steel trim for an added touch of elegance
The keyed lock located in the kickplate for optional security
Unique white lighting located inside the walls offers elegant illumination for the jet-black interior

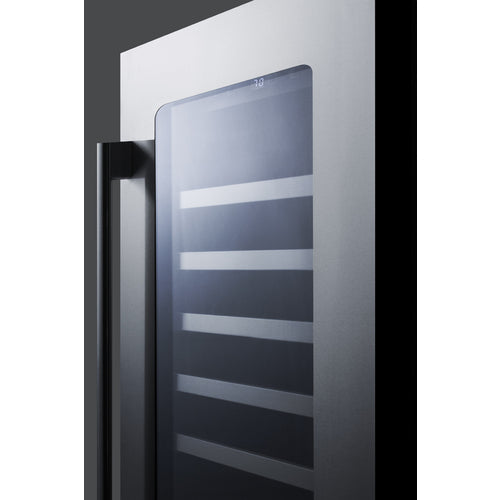

Vertically mounted handle in brushed stainless steel
User-reversible door swing allows for more flexibility in placing the unit
The floor is specially slotted to store wine bottles safely in place
Audibly alerts if the interior temperature is too warm
An audible alarm will sound if the door is left ajar for over 60 seconds

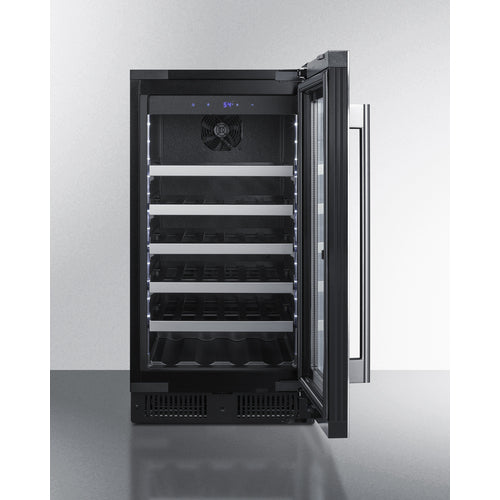

The internal fan ensures the interior is evenly cooled from top to bottom
Reduced maintenance and steady temperature performance
Space-saving design with easier cleanability
The unit will retain its last settings when power is restored in the event of power loss
Allows the unit to be used freestanding

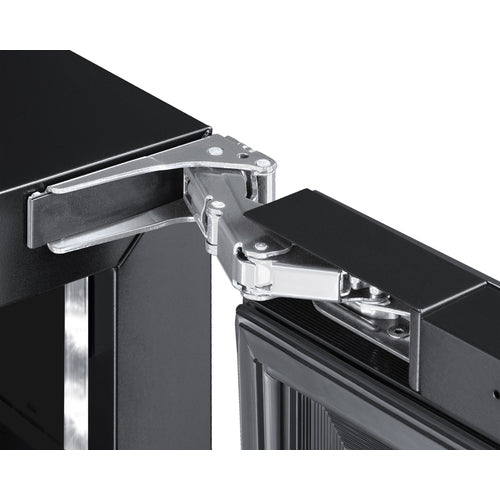

Smoother opening and a better fit with an integrated European hinge

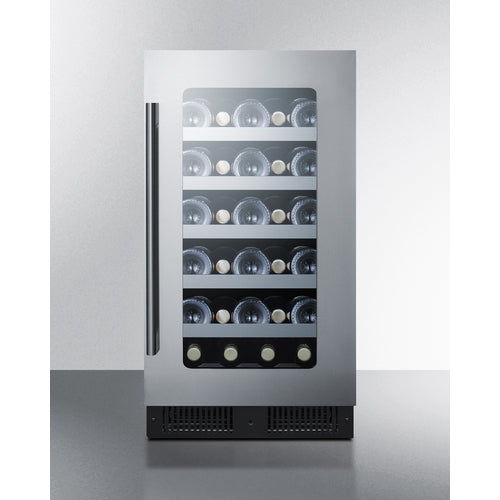

Holds up to 29 Bordeaux or Burgundy-style bottles
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 33.75" (86 cm) |
| Width | 17.5" (44 cm) |
| Depth | 22.75" (58 cm) |
| Depth with Handle | 24.5" (62 cm) |
| Depth with door at 90° | 40.13" (102 cm) |
| Capacity | 2.9 cu. ft. (82 L) |
| Bottles | 29 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 88.0 lbs. (40 kg) 90.0 lbs. (41 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101053455 761101055268 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 5 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.64 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 23.5" (60 cm) |
| Interior Width 1 | 14.0" (36 cm) |
| Interior Depth 1 | 16.63" (42 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 14.0" (36 cm) |
| Compressor Step Depth | 5.5" (14 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 72ºF |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
Latch - Factory-installed door latch requires manual release to open unit |
| Door |
| T1 Door Tint | T2 Door Tint |
| T3 Door Tint | T4 Door Tint |
| T1S Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
CL18WC.pdf L18WCCSS.pdf |
| USE & CARE | |
| TECHNICAL DRAWING (.dwg) | |
| ASSEMBLY DRAWING | |
| REVIT MODEL | |
| SUPPORT | |
| MSDS INFORMATION |
