Explore SUMMIT's new fully integrated wine cellars, expertly designed to store your collection of up to 28 bottles in the ideal conditions. With a double pane tempered glass door, protected from UV light and a seamless stainless steel frame, your wine will be kept safe and elegantly displayed. The user-reversible door swing adds a modern touch and increased flexibility for unit placement.
The VC28S comes equipped with a digital thermostat to effortlessly control the temperature. The three wooden shelves offer a traditional way to store bottles, while the specially designed floor is perfect for extra wine storage.
The recessed LED lighting adds a touch of sophistication to the interior, with the option to switch between display or functional mode. The VC28S also features an open door alarm, high/low temperature alarm, and can be set to Sabbath Mode.
It has auto defrost and fan-forced cooling to evenly distribute the temperature, as well as a condensation collection system to maintain proper humidity levels.
The VC28S boasts a striking appearance and exceptional design, making it a perfect addition to any room. For a wine cellar with fully integrated dual zone capabilities, look no further than the VC60D.

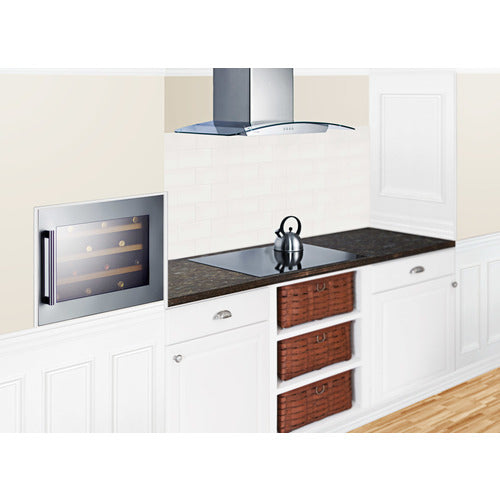

This model is specifically designed for integrated installation, with recommended cutout dimensions of 16 7/8" H x 21 1/2" W x 22 1/8" D. Be sure to consult the user manual for proper ventilation and spacing guidelines for this unit.
FEATURES
Designed for fully integrated installation (cutout dimensions: 16 7/8" H x 21 1/2" W x 22 1/8" D; see user manual for additional information about providing proper ventilation and spacing for this unit)
Meets UL-471 commercial standards
Electronic controls ensure easy and intuitive temperature management, with a readout in Celsius or Fahrenheit (temperature range: 40ºF to 72ºF)
Ensures evenly cooled interior for proper storage
User-reversible door swing in double pane tempered glass for best protection from UV light
Store bottles safely in classic style
Sounds after door is left open for over a minute to best prevent accidents
Can be set for showcase mode, remaining on until manually turned off, or functional model (turning on when the door is opened and off when it is closed)
Alarm sounds off when unit's interior rises or falls out of the set range
Optional setting lets you disable the lighting and alarm for 48 hours
Proper humidity levels are maintained inside due to a specially designed condensation collection system
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 18.13" (46 cm) |
| Width | 23.25" (59 cm) |
| Depth | 22.13" (56 cm) |
| Depth with Handle | 23.88" (61 cm) |
| Depth with door at 90° | 44.75" (114 cm) |
| Bottles | 28 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Unfinished |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.4 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 71.0 lbs. (32 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101031255 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wood |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.27 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 13.75" (35 cm) |
| Interior Width 1 | 18.88" (48 cm) |
| Interior Depth 1 | 14.88" (38 cm) |
| Temperature Range | 42º to 72ºF |
| Sabbath Mode | Yes |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS | C28S.pdf |
| TECHNICAL DRAWING (.dwg) | VC28SWINECELLARA-C2000.dwg |
| USE & CARE |
