FEATURES
Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
32" height is designed to fit under lower ADA compliant counters
Make the best use of space by installing your appliance under the counter

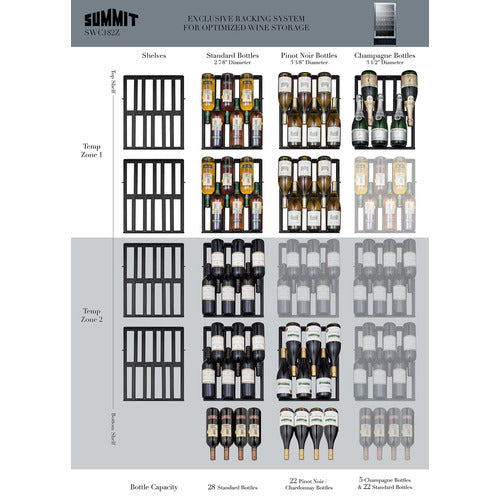

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles
Provides a full display of stored contents with a heat-safe double tempered design
Keyed lock for a secure interior, with 2 keys included

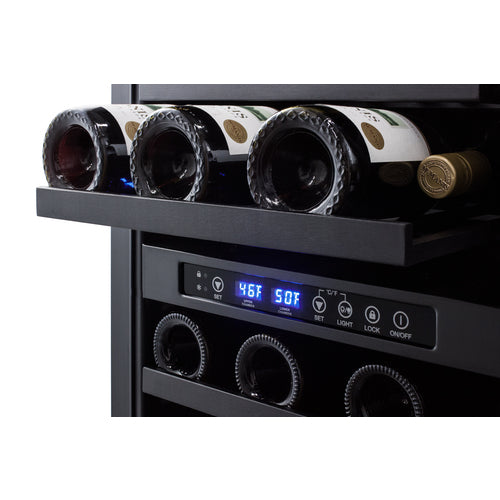

Electronic controls for precise temperature management.
Temperature readout can be shown in Celsius or Fahrenheit
Gentle illumination for each temperature zone for an elegant presentation
Reduced maintenance with the convenience of auto defrost
4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes
Stainless steel handle completes the look
Space saving design
Hinge is flush with cabinet, adding no additional height to the unit
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.63" (80 cm) |
| Width | 17.75" (45 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.25" (64 cm) |
| Depth with door at 90° | 39.75" (101 cm) |
| Capacity | 3.3 cu.ft. (93 L) |
| Bottles | 28 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 95.0 lbs. (43 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101055091 761101058436 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Adjustable Shelves | Yes |
| Shelf Type | Wood |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 10.63" (27 cm) |
| Interior Width 1 | 14.25" (36 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Height | 5.25" (13 cm) |
| Compressor Step Width | 14.25" (36 cm) |
| Compressor Step Depth | 5.0" (13 cm) |
| Level Legs | 4 |
| Temperature Range | 41º to 64ºF |
| Interior Height 2 | 12.25" (31 cm) |
| Interior Width 2 | 14.25" (36 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
SSK - Stainless steel kickplate |
|
|
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SWC182ZADA.pdf SWC182ZCSSADA.pdf |
| USE & CARE | |
| REVIT MODEL | |
| SUPPORT | |
| MSDS INFORMATION |
