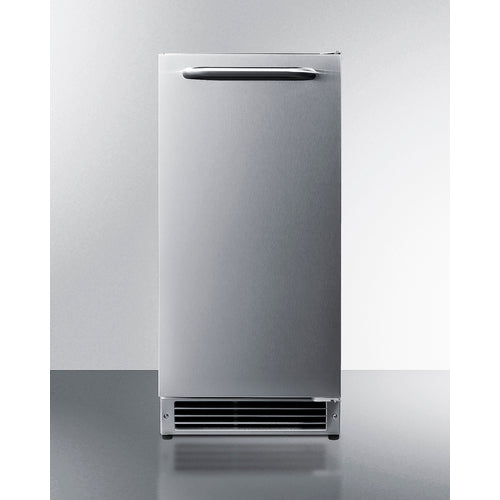

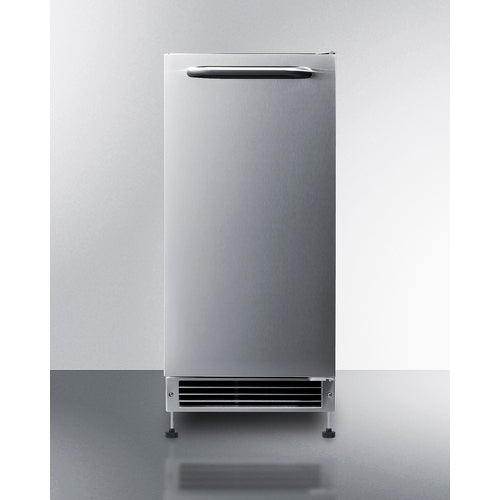

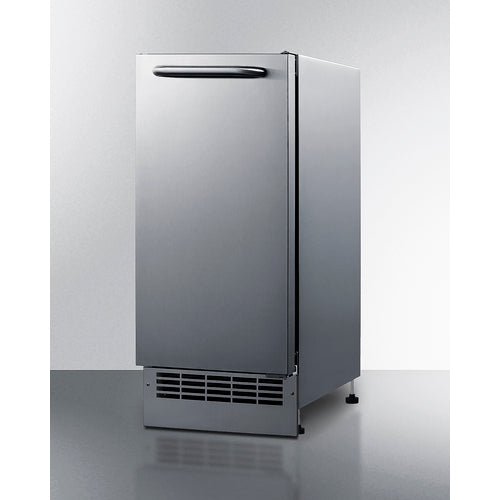

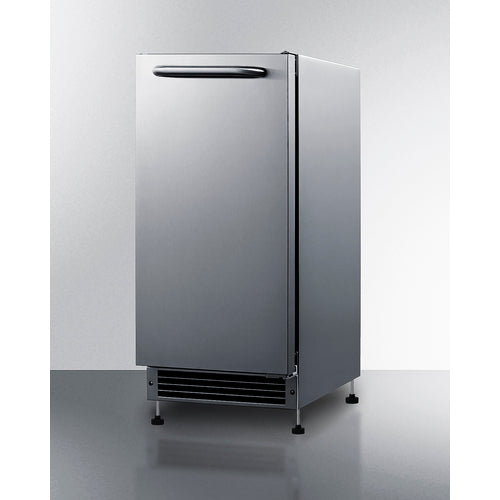

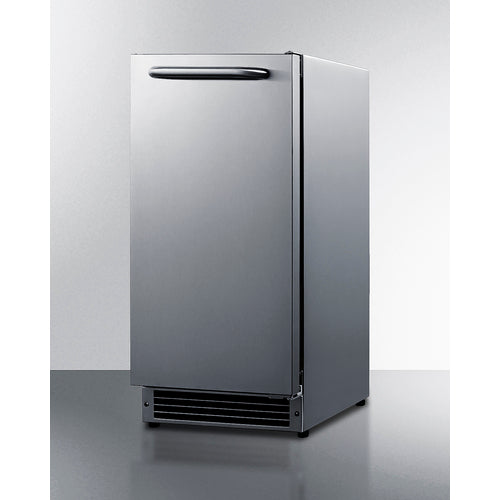

Introducing the Summit Appliance 25 lb. Drain-Free Outdoor Icemaker: the perfect blend of convenience and luxury. This 304-grade stainless steel icemaker is just under 15" wide, making it ideal for built-in or freestanding use. With a height of 34", it's compatible with standard outdoor counters and can be lowered to fit ADA-compliant spaces. Plus, its included smaller kickplate adds a streamlined touch.
Get ready to elevate your outdoor entertaining with the Summit Appliance 25 lb. Drain-Free Outdoor Icemaker. This ADA compliant machine boasts a sleek stainless steel finish and a reversible door for a professional look. With a daily production of 25 lbs of ice and a convenient no-drip design, you'll have plenty of ice for your gathering. Plus, the included water filter and pre-installed connection hose make setup a breeze. And with a removable ice bucket, scoop, and holder, serving up drinks has never been easier!
Get the party started with the Summit Appliance 25 lb. Drain-Free Outdoor Icemaker! Made with durable stainless steel and a low maintenance design, this ADA Compliant icemaker is perfect for any outdoor space. And with its weatherproof construction, you can bring the fun indoors too. Check out our full line for more options!
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside
Durable construction for safe installation in outdoor kitchens

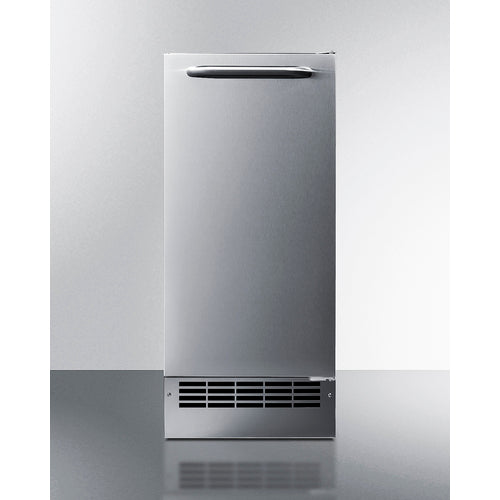

This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
Convenient design allows more flexibility in positioning the unit
Customizable height allows installation under lower ADA-compliant counters
Produces and stores more than 20 lbs of ice per day cycle
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
Versatile design allows users the ability to place the unit inside or out
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line
Make the best use of space by installing your ice maker under the counter
Horizontally mounted towel bar style handle in stainless steel

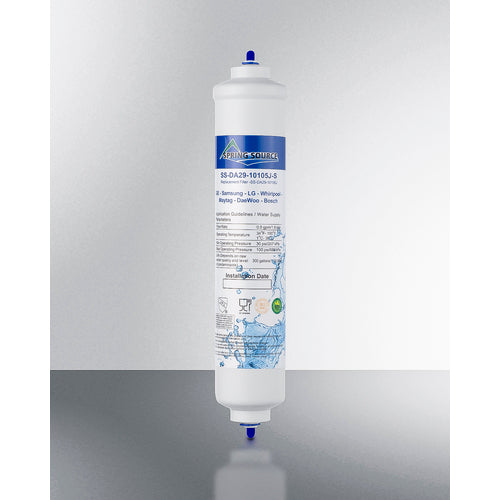

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice

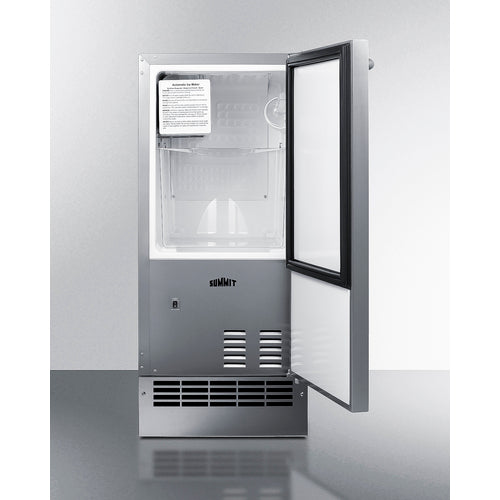

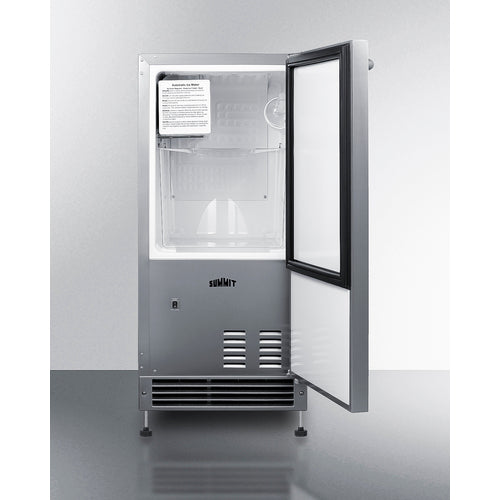

Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 14.88" (38 cm) |
| Depth | 19.38" (49 cm) |
| Depth with Handle | 21.38" (54 cm) |
| Depth with door at 90° | 33.63" (85 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 61.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103556 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM271OS.pdf
|
| TECHNICAL DRAWING (.dwg) | BIM26H32_BIM26H34_BIM27OSADA_BIM271OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
