Introducing the Summit Appliance 25 lb. Drain-Free Icemaker, the perfect blend of convenience and luxury. Made with 304-grade stainless steel, this undercounter icemaker boasts a compact size and front-breathing design for built-in or freestanding use. Plus, its ADA-compliant and comes with a taller kickplate for a seamless fit. Don't compromise on style or functionality - get the BIM26H32 now!
Get ready for some serious ice-making with the Summit Appliance 25 lb. Drain-Free Icemaker. With its stainless steel finish and sleek handle, this icemaker is not only durable but also adds a touch of sophistication to your space. The static manual defrost keeps ice solid longer, while the sealed back allows for a flush installation. And with no need for a drain or pump, you have more flexibility in placement. Plus, Summit has got you covered with a pre-installed connection hose, removable ice bucket, scoop, and holder for ultimate convenience.
Keep your undercounter kitchen space stocked with ice using the Summit Appliance Drain-Free Icemaker. Constructed with durable stainless steel and designed for low maintenance, this ADA-compliant unit reduces waste while providing a constant supply of ice. Explore additional sizes and colors in the Summit product line.
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside
31.75" height allows installation under lower ADA-compliant counters
This unit can be raised to 34", with a taller kickplate included for a seamless aesthetic
Produces and stores more than 20 lbs of ice per day cycle
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
Make the best use of space by installing your ice maker under the counter
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line
Horizontally mounted towel bar style handle in stainless steel

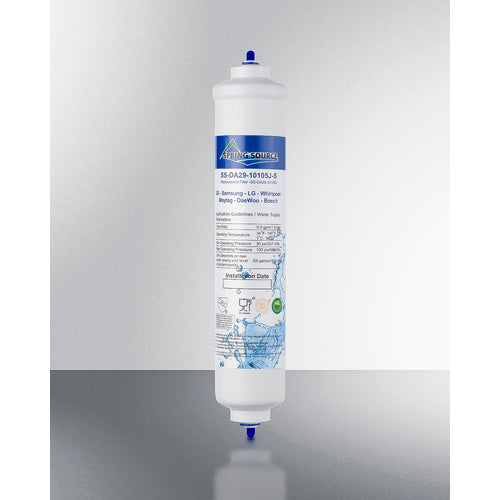

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice

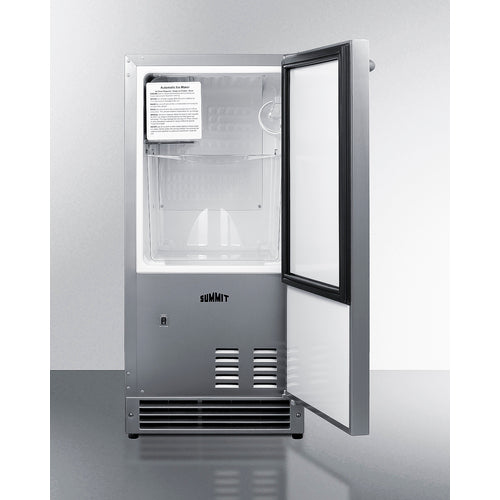

Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.75" (81 cm) |
| Width | 14.88" (38 cm) |
| Depth | 19.38" (49 cm) |
| Depth with Handle | 21.38" (54 cm) |
| Depth with door at 90° | 33.63" (85 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 61.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103525 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM26H32.pdf |
| TECHNICAL DRAWING (.dwg) | BIM26H32_BIM26H34_BIM27OSADA_BIM271OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
