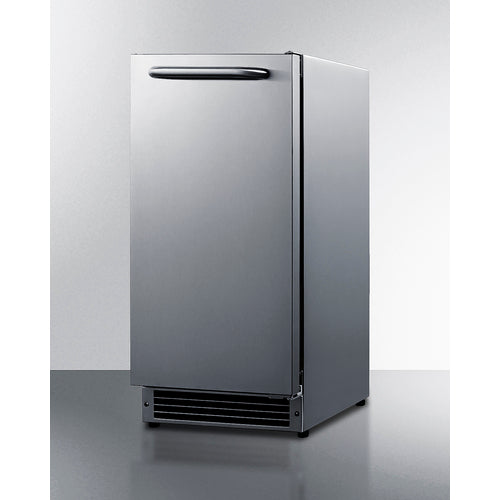

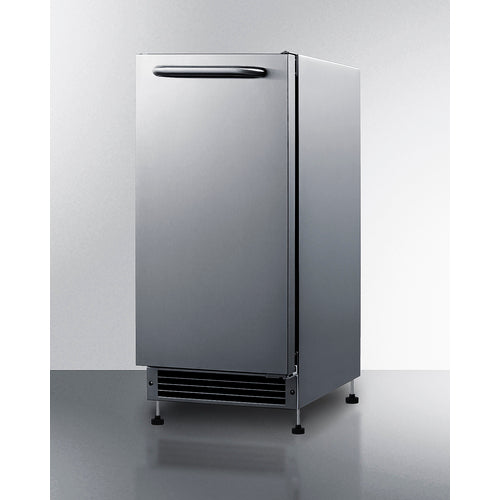

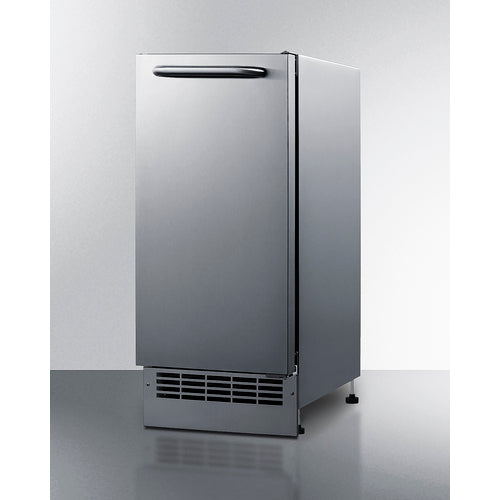

Add luxury to your kitchen with Summit's BIM26H34 icemaker. Crafted with 304-grade stainless steel, this undercounter unit boasts a front-breathing design and freestanding capabilities. At just under 15" wide and a height of 34", it's compatible with standard counters and can be lowered to fit ADA-compliant spaces. Plus, a smaller kickplate is included for a polished look.
Get ready to make ice without the hassle of draining water! With Summit Appliance's 25 lb. Drain-Free Icemaker, you can enjoy a professional-looking appliance that's built to last. Plus, you can choose to install an optional water filter in the back for even cleaner ice. Handle it with style and ease!
Fresh ice, flexible placement! The Summit Appliance 25 lb. Drain-Free Icemaker produces 25 lbs of ice daily with no drain or pump needed. The static manual defrost system keeps ice solid longer, and Summit even includes a hose, bucket, scoop, and holder for ultimate convenience. Stay cool and clutter-free!
Keep your undercounter kitchen space stylish and efficient with the Summit Appliance 25 lb. Drain-Free Icemaker. Its stainless steel construction and low maintenance design provide a perfect ice-making solution with less waste. Plus, it's ADA-compliant and comes in various sizes and colors. Browse the full Summit product line for your customized options.
FEATURES
No drain is required for more flexibility in placing the icemaker indoors or outside

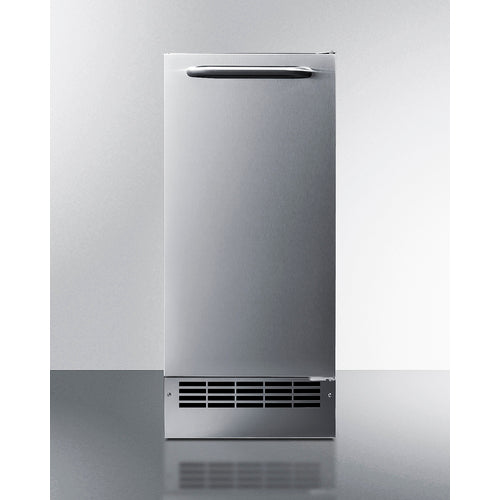

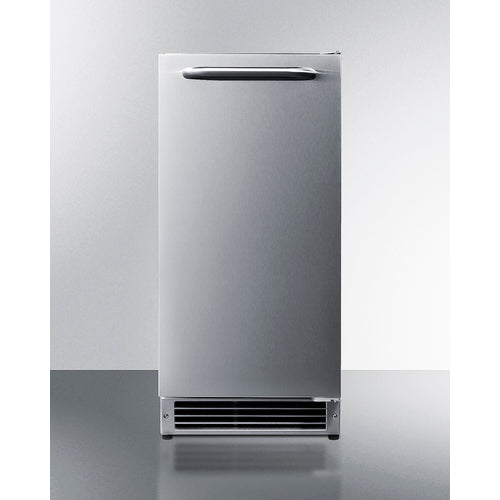

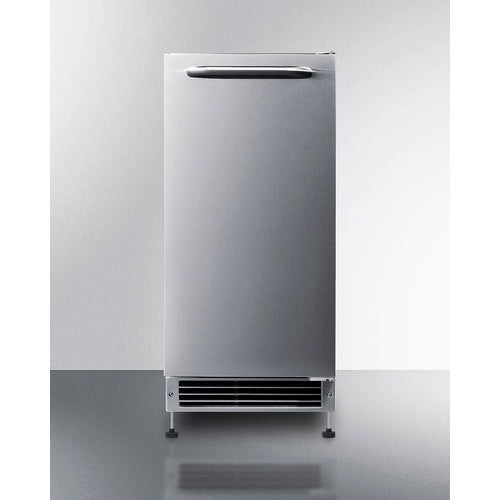

This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
Customizable height allows installation under lower ADA-compliant counters
Produces and stores more than 20 lbs of ice per day cycle
Convenient design allows more flexibility in positioning the unit
Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
304-grade stainless steel allows the icemaker to be used freestanding
User-reversible door swing for flexible placement
Space-saving design with easier cleanability
Operates with a standard 1/4” OD water supply line
Make the best use of space by installing your ice maker under the counter
Horizontally mounted towel bar style handle in stainless steel

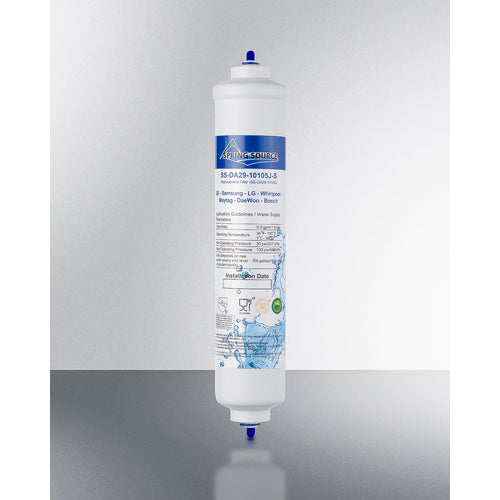

Water filter is included for optional use
Large ice scoop and holder included for your convenience
Crescent-shaped ice provides a harder and longer-lasting ice

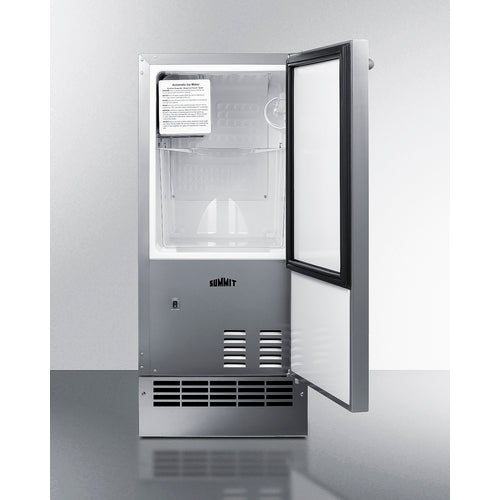

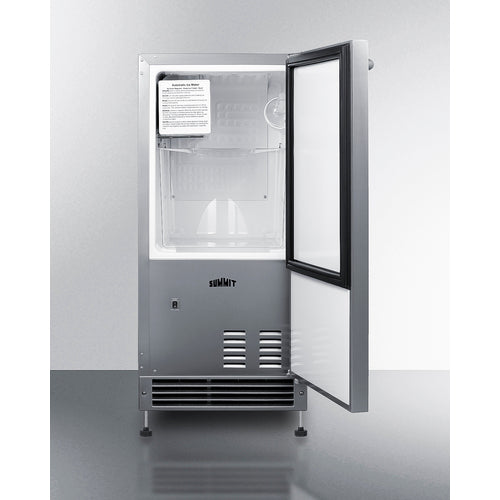

Users can remove the ice bucket for fast and easy cleaning
Ice stays solid longer in this cold-protected bin
Environmentally friendly design without ozone-damaging chemicals
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 14.88" (38 cm) |
| Depth | 19.38" (49 cm) |
| Depth with Handle | 21.38" (54 cm) |
| Depth with door at 90° | 33.63" (85 cm) |
| Defrost Type | Manual |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.9 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 61.0 lbs. (28 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101103532 |
|
Icemaker
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height Adjustable | Yes |
| Daily Ice Production | 25.0 lbs. (11 kg) |
| Ice Storage Capacity | 22.0 lbs. (10 kg) |
| Ice Shape | Crescent |
| Size of Cube | 1/2" x 3/4" x 2 3/8" |
| Number of Ice Cube Sizes | 1 |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.58 oz. |
| High Side PSI | 120.0 |
| Low Side PSI | 55.0 |
| Interior Height | 15.88" (40 cm) |
| Interior Width | 11.88" (30 cm) |
| Interior Depth | 12.38" (31 cm) |
| Level Legs | 4 |
AVAILABLE UPGRADES
| Exterior |
| LHD - Left hand door swing |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
BIM26H34.pdf |
| TECHNICAL DRAWING (.dwg) | BIM26H32_BIM26H34_BIM27OSADA_BIM271OS.dwg |
| USE & CARE | |
| ASSEMBLY DRAWING |
