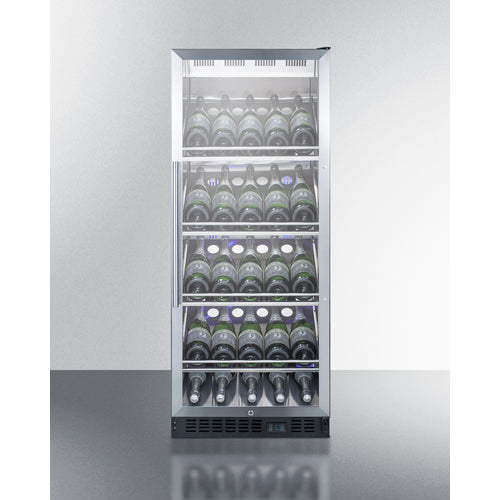

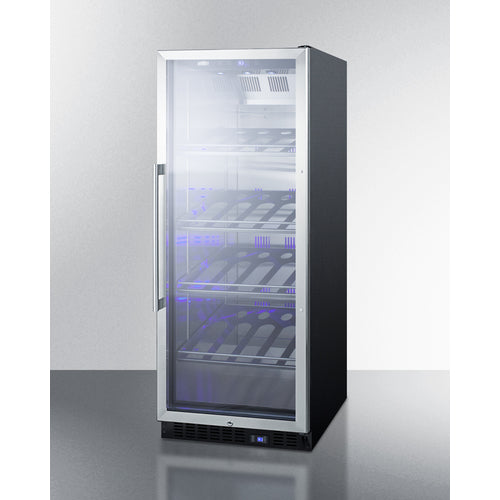

The SCR1156CH, SC1156CHCSS features stainless steel shelving specifically designed to hold champagne and sparkling wine bottles at a slight angle, offering a full display of the label. The interior walls and floor are constructed from durable stainless steel, making it suitable for busy commercial settings.
This unit is illuminated with energy-efficient LED lighting in a vivid blue hue. The digital control panel allows for a temperature range of 36 to 68ºF, giving you the ability to program the perfect settings for red, white, or sparkling wine.

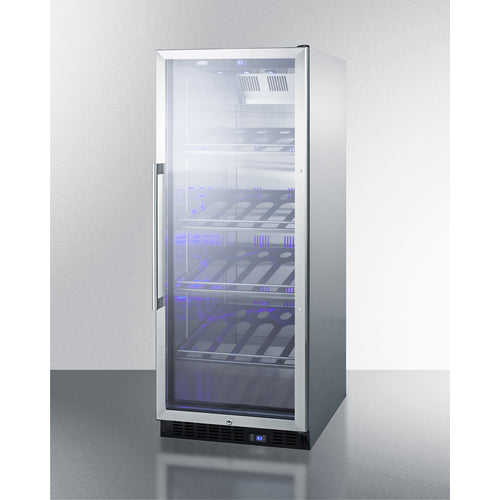

The SCR1156CHCSS includes a stainless steel wrapped cabinet, with additional options also available in stainless steel and different sizes. For a comprehensive selection of commercially approved wine cellars, please visit our website.
FEATURES
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use

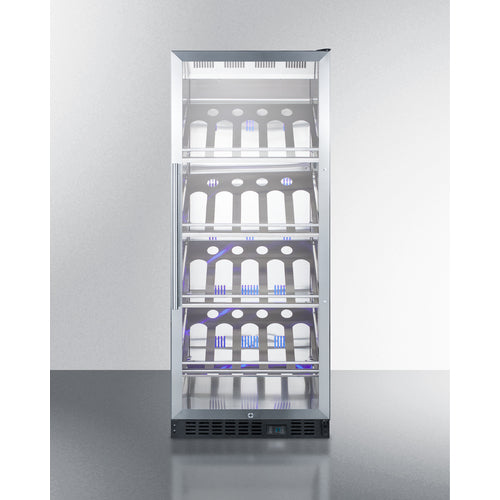

Stainless steel shelves are specially sized to store wider wine and champagne bottles
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

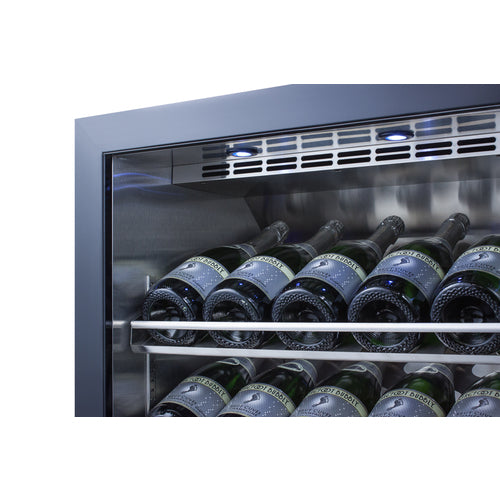

Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Just 24" wide and deep for an easy fit in any setting
No-frost convenience requires no manual defrosting
Walls are constructed from stainless steel for added strength and easy cleanup
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Keyed lock for a secure interior (2 keys included)
Internal fan ensures the interior is evenly cooled from top to bottom
Attractive design in stainless steel to complete the look
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Flexible design with a front-breathing cooling system to allow built-in installation and a fully finished exterior that also enables safe freestanding use
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 58.38" (148 cm) |
| Width | 23.63" (60 cm) |
| Depth | 22.88" (58 cm) |
| Depth with Handle | 24.0" (61 cm) |
| Depth with door at 90° | 64.38" (164 cm) |
| Capacity | 11.0 cu.ft. (311 L) |
| Bottles | 25 bottles |
| Defrost Type | Frost-Free |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.7 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 200.0 lbs. (91 kg) 220.0 lbs. (100 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059969 761101065236 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | No |
| Shelf Type | Steel |
| Shelf Qty | 4 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.66 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 50.0" (127 cm) |
| Interior Width 1 | 20.0" (51 cm) |
| Interior Depth 1 | 16.5" (42 cm) |
| Temperature Range | 36 to 68ºF |
| Interior Height 2 | 4.75" (12 cm) |
| Interior Width 2 | 20.0" (51 cm) |
| Interior Depth 2 | 4.5" (11 cm) |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SCR1156CH.pdf SCR1156CHCSS.pdf |
| USE & CARE | |
| REVIT MODEL |
