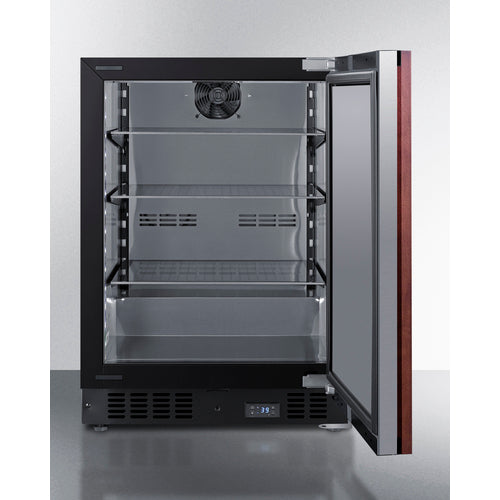

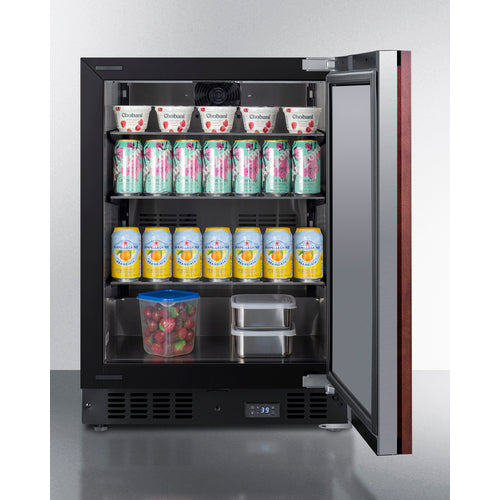

The Summit Appliance 25 bottle 24" Wide Built-In Beverage Center (Panel Not Included) utilizes automatic defrost and an internal fan for temperature control, while the recessed LED lighting creates ideal display conditions in its stainless steel interior.

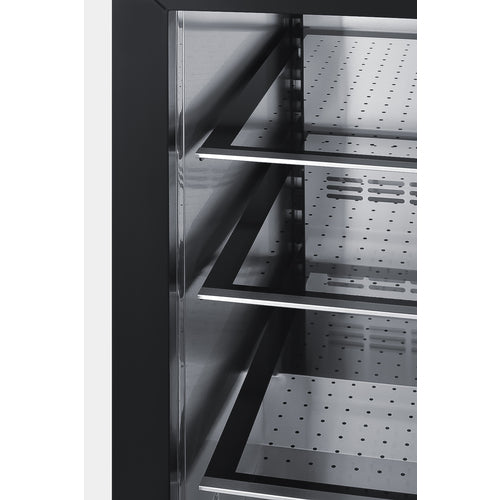

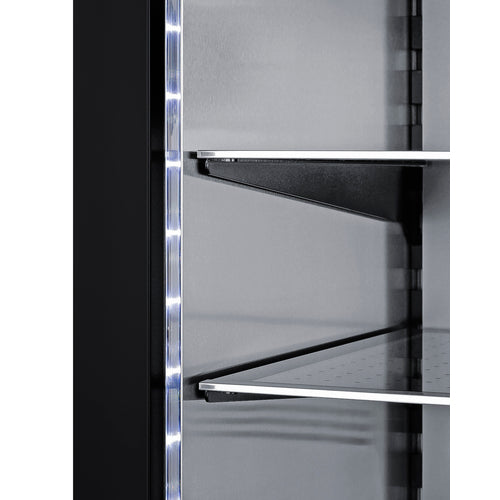

This unit includes three cantilevered chrome shelves, accommodating items of any size, and its taller design allows for storage of two rows of 12" high bottles. High temperature and open door alarms provide extra protection in busy commercial settings.
This unit, the SCR610BLSDIF, is ETL-S listed and NSF-7 certified for use in commercial settings, making it a reliable choice. If you prefer a glass door, check out the similar SCR610BL model.
FEATURES
ETL-S listed to NSF-7 Standards for use in commercial establishments
Front-breathing design lets you make the best use of space by installing your appliance under the counter

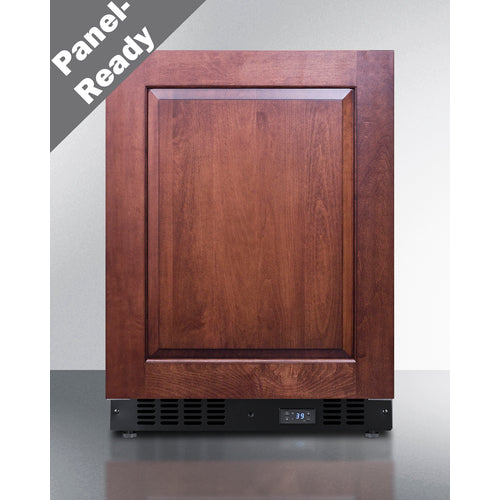

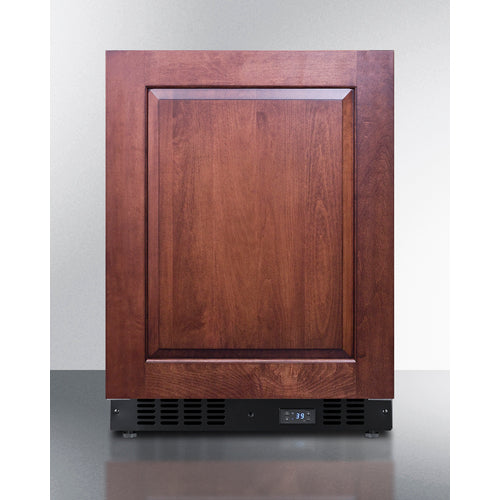

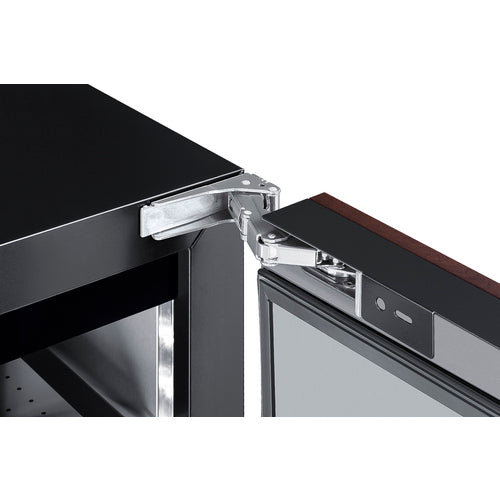

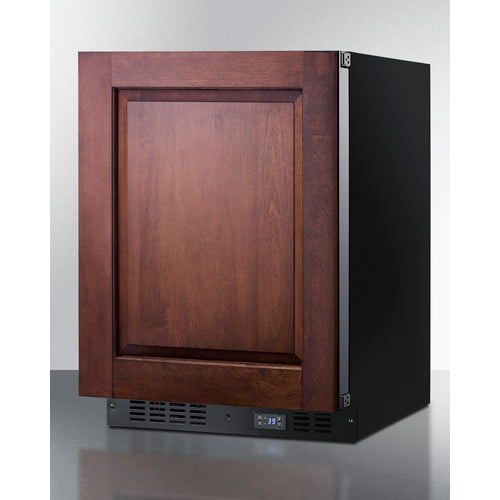

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design
Walls are constructed from stainless steel for added strength and easy cleanup
Intuitive digital controls ensure easy temperature management
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

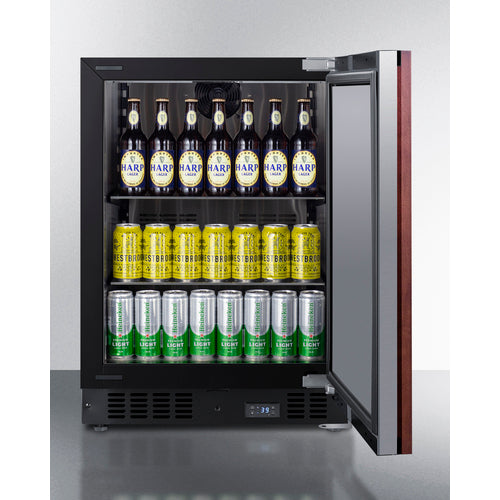

25" high interior accommodates two vertical rows of 12" tall bottles
Efficient and attractive lighting illuminates stored products
Audible alarm will sound if the door is left ajar for over a minute
Alarm sounds if the interior temperature rises out of suggested range
Reduced user maintenance with automatic defrost
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Internal fan ensures the interior is evenly cooled from top to bottom
Space saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Environmentally friendly design without ozone-damaging chemicals
SPECIFICATIONS
|

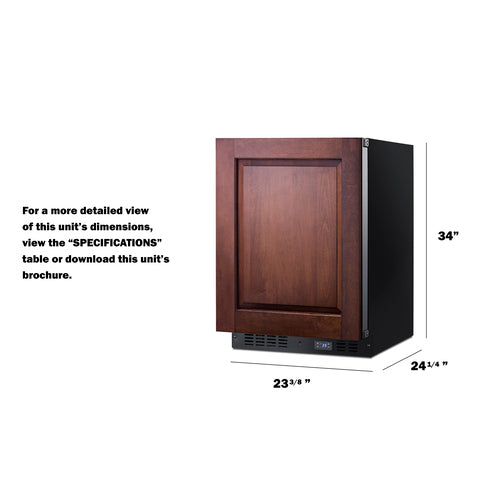

Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101064765 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 37.4 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 19.38" (49 cm) |
| Interior Depth | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
AVAILABLE UPGRADES
| Exterior | SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left-hand door swing | PH - Probe Hole |
