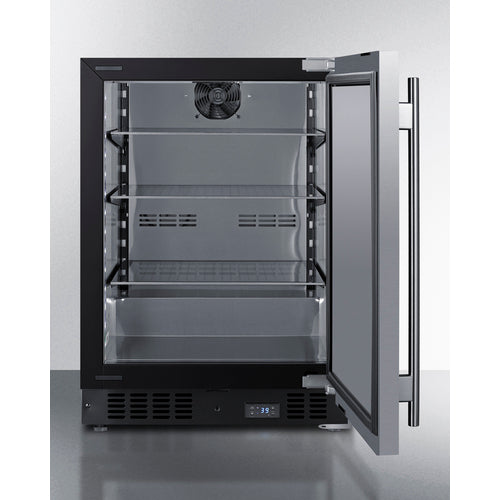

The internal fan of the SCR610BLSDCSS ensures efficient automatic defrost operation with evenly distributed temperature. Stainless steel interior, recessed LED lighting, and three chrome shelves make for a durable and easy-to-clean display.

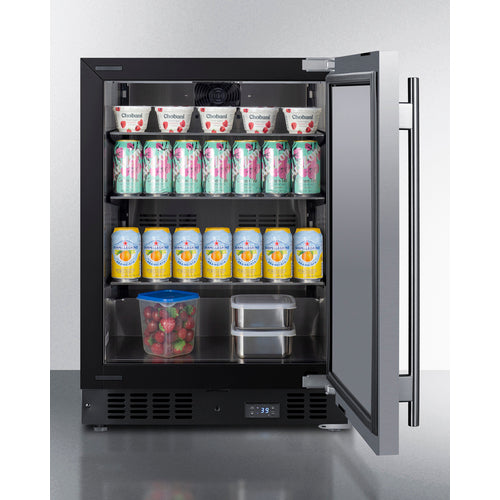

The spacious interior accommodates two rows of 12" high bottles and includes high temperature and open door alarms for added protection in commercial settings.
The SCR610BLSDCSS meets ETL-S standards and is NSF-7 certified for commercial use. To view the glass door model, refer to the SCR610BLCSS.
FEATURES
ETL-S listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry

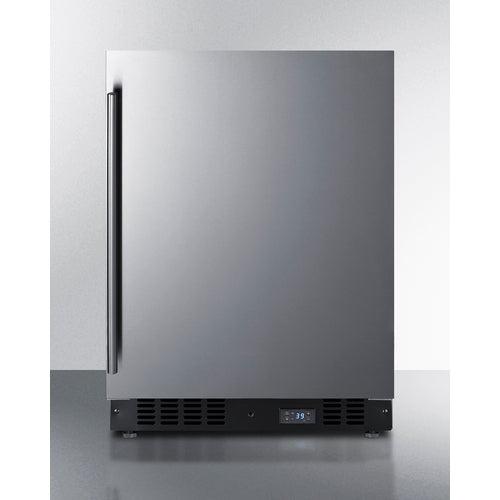

Professional finish with a matching handle
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management

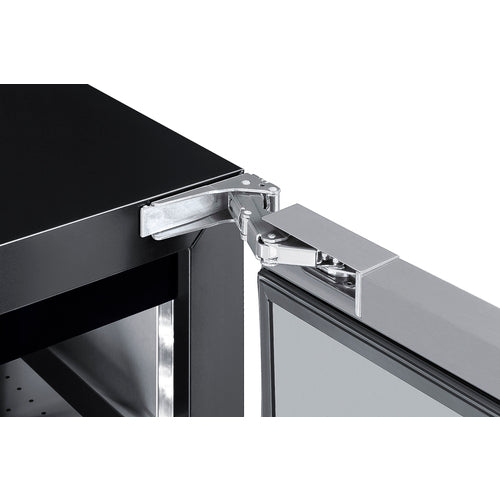

User-reversible door swing allows for more flexibility in placing the unit

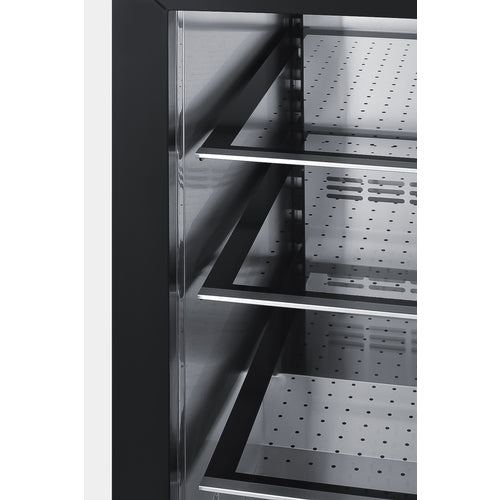

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

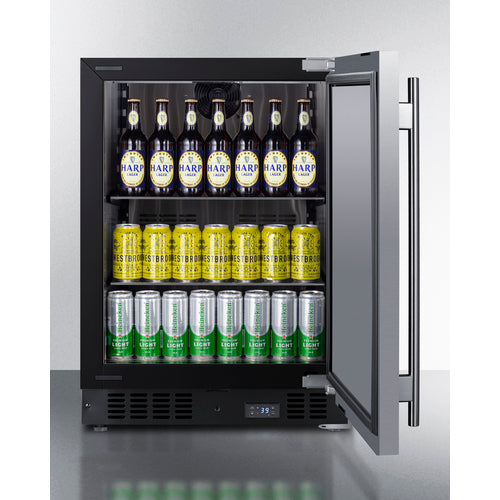

25" high interior accommodates two vertical rows of 12" tall bottles

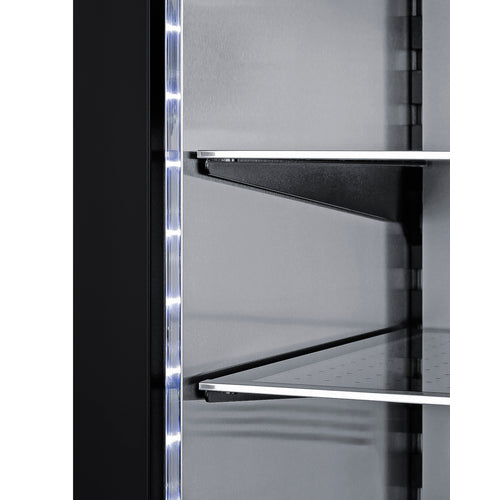

Efficient and attractive lighting illuminates stored products
Audible alarm will sound if the door is left ajar for over a minute
Alarm sounds if the interior temperature rises out of suggested range
Reduced user maintenance with automatic defrost
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Internal fan ensures the interior is evenly cooled from top to bottom
Space saving design with easier cleanability

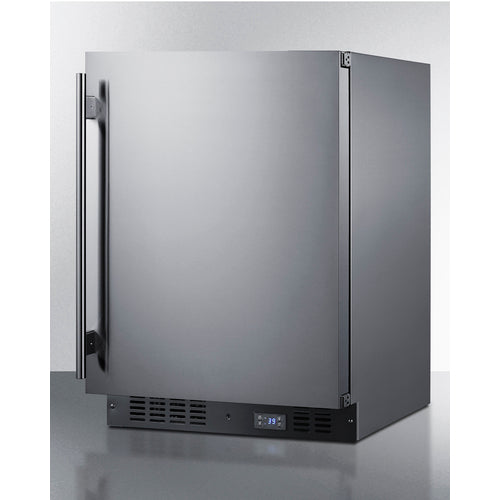

Cabinet and door feature 304 grade stainless steel construction
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|

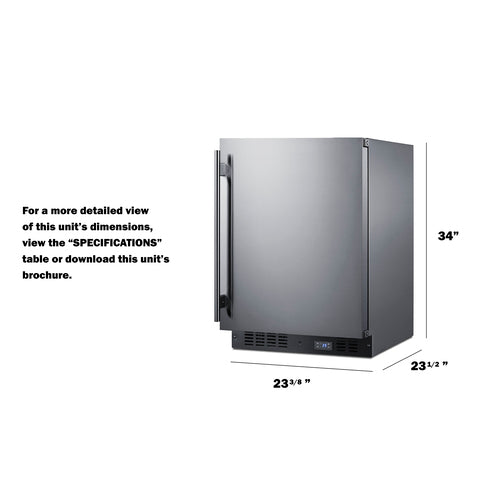

Overview
|
|
|---|---|

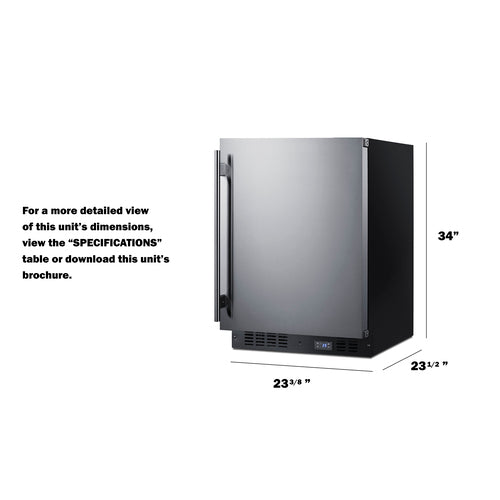

| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 100.0 lbs. (45 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101064772 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Chrome |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Temperature Range | 36°F to 43°F |
| Sound Level | 37.4 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 19.38" (49 cm) |
| Interior Depth | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
AVAILABLE UPGRADES
| Exterior | SSK - Stainless steel kickplate | Latch - Factory-installed door latch requires manual release to open unit |
| LHD - Left hand door swing | PH - Probe Hole |
| Door |
| T3F Door Tint | T1SF Door Tint |
| T4F Door Tint | T2F Door Tint |
