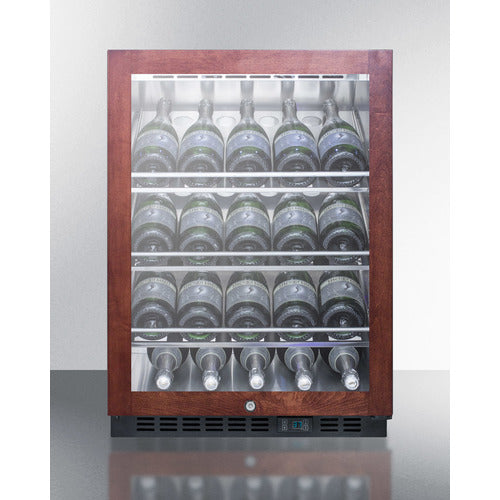

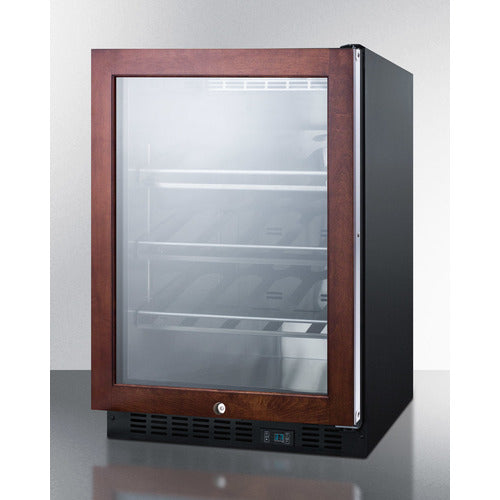

The SCR610BLCHPNR features stainless steel shelving designed for optimal display and storage of champagne and sparkling wine bottles at an angle. Stainless steel construction of the interior walls and floor ensures long-lasting durability for high-traffic commercial environments.
This unit is illuminated by efficient LED lighting in a vibrant blue hue, and the interior can be easily managed through digital controls.
The SCR610BLCHPNR offers a one-of-a-kind design and commercial-grade build, making it an ideal under-counter solution for showcasing and preserving larger bottles. Explore our website for other choices, including outdoor models and larger sizes with increased bottle capacity.
FEATURES
ETL-S is listed to NSF-7 Standards for use in commercial establishments
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Stainless steel shelves are specially sized to store wider wine and champagne bottles

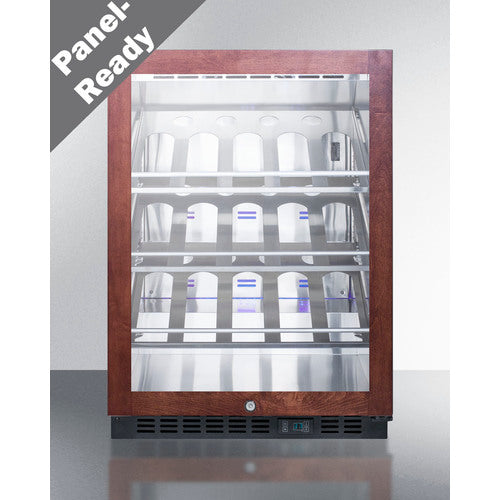

The door frame can be customized with a custom overlay panel (panel frame dimensions: 29 7/8" H x 23 1/8" W at 3/4" minimum thickness)
Cantilevered clips are pre-installed so that the shelving can be installed at a slight angle to provide a display of the bottle labels. Clips can be adjusted to a flat position to accommodate more shelves

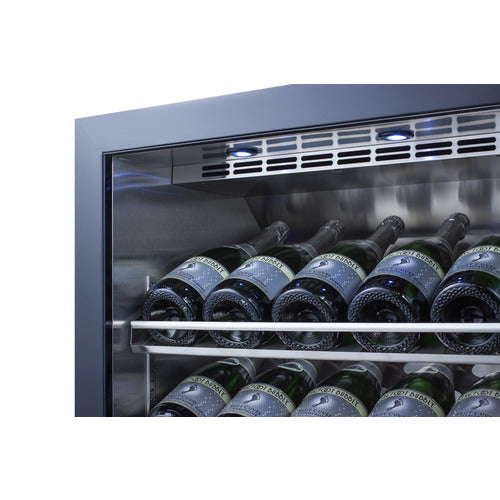

Fully lit interior with a striking blue LED hue, providing an attractive and energy-efficient view
Stainless steel trimmed glass door offers a full display of stored items
Walls are constructed from stainless steel for added strength and easy cleanup
Keyed lock for a secure interior
Intuitive digital controls ensure easy temperature management
The door ships with a right-hand door swing. For a left-hand version, add the option "LHD"
Reduced user maintenance with automatic defrost
The internal fan ensures the interior is evenly cooled from top to bottom
Space-saving design with easier cleanability
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.0" (86 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.5" (60 cm) |
| Depth with door at 90° | 45.5" (116 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Bottles | 20 bottles |
| Defrost Type | Automatic |
| Door | Glass/Panel-Ready Frame |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101065502 |
|
Wine Cellar
|
|
| Number of Zones | 1 |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Steel |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99 oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Interior Height 1 | 25.0" (64 cm) |
| Interior Width 1 | 19.38" (49 cm) |
| Interior Depth 1 | 17.38" (44 cm) |
| Compressor Step Height | 3.75" (10 cm) |
| Compressor Step Width | 19.38" (49 cm) |
| Compressor Step Depth | 4.63" (12 cm) |
| Temperature Range | 36 to 43ºF |
| Sound Level | 37.4 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
SSK - Stainless steel kickplate |
| Door |
| T4 Door Tint | T2 Door Tint |
| T2 Door Tint | T1S Door Tint |
| T1 Door Tint |
