Summit Appliance 24 inch Wide Front Tap Built-In Beer Kegerator
Summit Appliance 24 inch Wide Front Tap Built-In Beer Kegerator
Couldn't load pickup availability
Summit's built-in kegerators deliver convenience without countertop modifications, offering accessible beer on tap in both commercial and residential settings. The SBC58BFRTPLHD features innovative front-door twin taps that preserve valuable counter space in compact kitchens and bars. This fully assembled 24" unit accommodates two 1/6 kegs and includes a stainless steel drip tray, CO2 tank, regulator, and all necessary dispensing equipment.
ETL-S listed to NSF-7 commercial standards with adjustable height (32.5"-34.5"), this versatile jet black kegerator with stainless accents functions equally well as a built-in or freestanding unit.

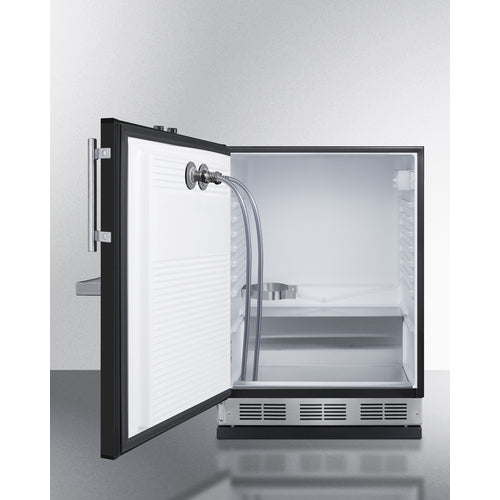

The SBC58BFRTPLHD boasts a pristine white interior with a durable stainless steel floor, enhancing keg loading protection. Visibility is optimized through an interior light controlled by a convenient rocker switch positioned behind the dial thermostat. Reliability comes standard with straightforward mechanical controls that eliminate complex electronic components.
Maintenance requirements are minimized thanks to an automatic defrost system, while Summit's proprietary cold wall technology ensures consistent, efficient cooling performance. Beyond this dual-tap model, Summit offers specialized dispensers for wine and cold brew coffee, including the innovative SBC7BRSFLTWADA with floating tap design. The product line extends to ADA-compliant and outdoor-rated kegerators, with product specialists available to guide your selection process.
FEATURES
Kegerator includes front taps accessed via the door and includes all of the equipment needed to serve beer from two sixtel kegs
Unique design requires no alterations to your countertop, freeing up valuable countertop space

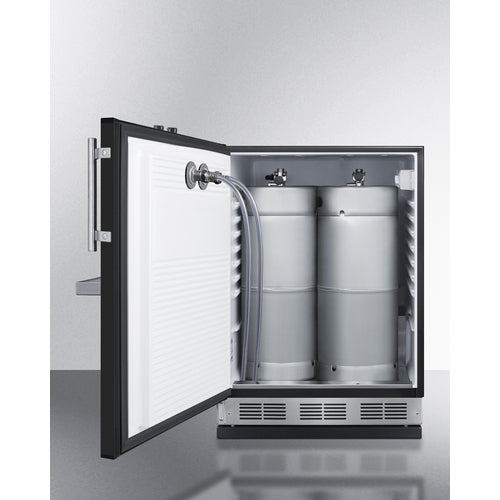

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs
Taps are located on the front of the door, requiring no added reach
ETL-S listed to ANSI-NSF Standard 7 for commercial use
Approved for both residential and commercial settings
Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware.
Full-sized cannister ships with tapping equipment (ships empty)
Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs
No-frost operation for minimum user maintenance
Simple and intuitive analog controls located inside for easy temperature management
Interior includes steel cover to protect the floor when loading kegs
Cold wall design with hidden evaporator creates a seamless, easy to clean interior
Adjust the unit’s height between 33.5" and 34.5" to best fit under your counter. Includes a removable leg cover that lets you fill the gap that can appear between the kickplate and the floor

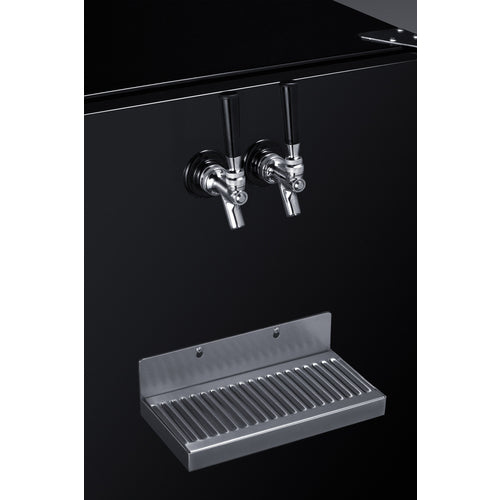

Front-mounted two-piece drip tray included for added convenience that can be easily removed for better cleanability
Vertically-mounted handle bar in stainless steel
For this unit with a standard right hand door swing, see model SBC58BFRTP
Attractive finish to match the taps and handle
Allows the dispenser to be used freestanding
Refrigeration unit constructed in Europe then designed and modified in the USA
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Nominal Height | 34.0" (86 cm) |
| Height of Cabinet | 33.5" (85 cm) |
| Nominal Width | 24.0" (61 cm) |
| Width | 23.63" (60 cm) |
| Nominal Depth | 28.0" (71 cm) |
| Depth | 27.38" (70 cm) |
| Depth with door at 90° | 51.88" (132 cm) |
| Capacity | 5.3 cu.ft. (150 L) |
| Defrost Type | Automatic |
| Door | Black |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 293.0kWh/year |
| Amps | 0.8 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101145419 |
|
Kegerator
|
|
| Door Swing | LHD |
| Height Adjustable | Yes |
| Tap Kit | Yes |
| Number of Taps | 2 |
| Thermostat Type | Dial |
| Interior Light | Yes |
| Refrigerant | R600a |
| Refrigerant Amount | 0.64 oz. |
| Inter Height | 27.75" (70 cm) |
| Interior Width | 21.0" (53 cm) |
| Interior Depth | 18.0" (46 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 21.0" (53 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs Qty | 4 |
| Temperature Range | 36 to 46°F |
AVAILABLE UPGRADES
| Exterior | |
| CAS3 3" casters | Latch - Factory-installed door latch requires manual release to open unit |
| Lock | |
| L-SideLock | L-TopLock |
DOWNLOADS
| BROCHURE w/ DRAWINGS |
SBC58BFRTPLHD.pdf |
| TECHNICAL DRAWING (.dwg) | SBC58BFRTP.dwg |
| USE & CARE | SBC58BFRTP-Assembly.pdf |
| USE & CARE | |
| ENERGY GUIDE |
https://www.summitappliance.com/energy_guide/8485.pdf
|
