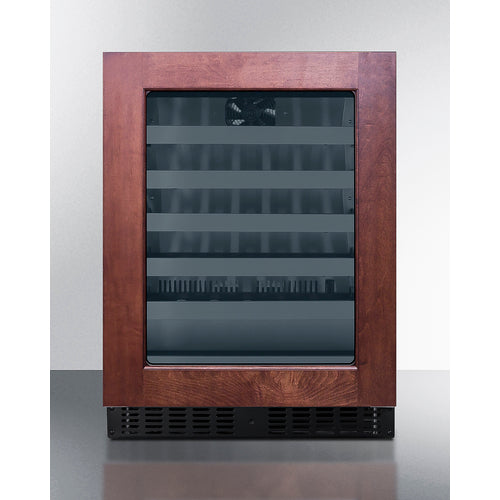

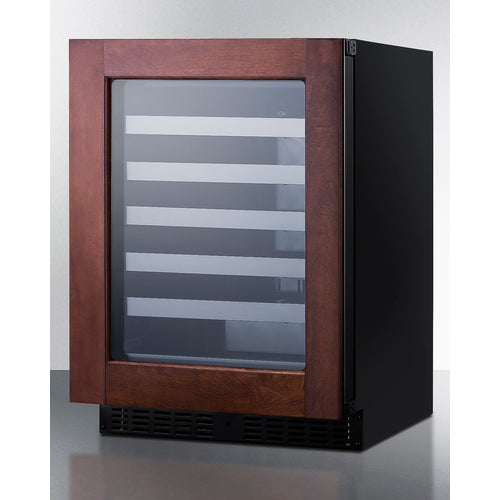

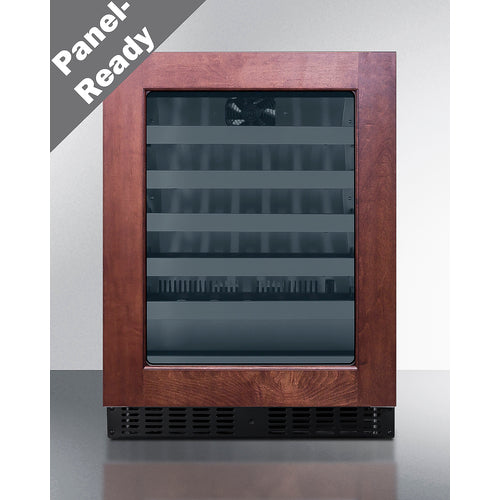

Summit Appliance 33 Bottle 24" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)

Summit Appliance 33 Bottle 24" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)

Cabnet
Height
Door Swing
$0.00 USD
$0.00 USD $0.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details
The Summit Appliance 33 Bottle 24" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) is part of the shallow depth series which brings full functionality to kitchens with space limitations. This model, ASDW2412PNR, has adjustable legs and a sliding kickplate cover that can increase the overall height to 34" to fit standard counter spaces. With a single zone and a capacity for 33 bottles, this wine cellar is sized to fit under 18" deep and below 32" height ADA compliant counters.  Its front-breathing system allows for built-in installation and it has a fully finished black cabinet for freestanding use. The European style fully articulating hinge makes it easy to install custom door trim panels to match your cabinetry, and the sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your collection.

The ASDW2412PNR and ASDW2412PNRLHD boast improved durability and sanitation with their stainless steel construction. Sidewall white LED lighting adds an elegant display with dimmable levels to customize the presentation. The digital control panel allows for temperature adjustment between 41º and 64ºF for red, white, or sparkling wine. Designed with steel shelves in a jet-black finish and ball-bearing glides, this refrigerator adds a classic touch with its stainless steel trim.

Even temperature distribution and quick temperature recovery are ensured through fan-forced cooling. Convenient features such as an open door alarm, high-temperature alarm, and Sabbath mode setting make this product a must-have for any wine enthusiast.

The Summit Appliance 33 Bottle 24" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included) is ETL-S listed to meet NSF-7 commercial standards, while also being suitable for household use. This unit boasts a luxurious design, intuitive features, and a remarkably slim depth, making it a top choice for various environments.

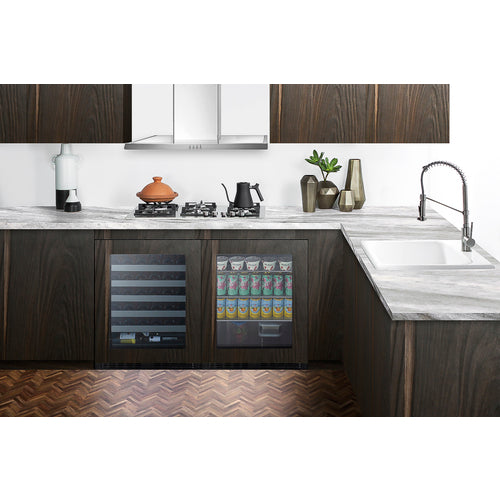

Enhance your collection by pairing it with our ASDW2411PNR beverage center. We also offer other 18" depth options in 15", 19", and 24" widths, such as outdoor refrigerators and refrigerator drawers.

This wine cellar has a capacity of 33 Bordeaux-style bottles and features a shallow depth. For maximum space and fit, we recommend loading the bottles with the corks facing the rear. Most shelves can also accommodate wider Burgundy bottles, but the capacity may vary depending on individual bottle designs.

If needed, shelves can be removed to fit thicker bottles like champagne and sparkling wine. Additionally, the lower shelf is specifically designed for horizontal storage of Bordeaux-style bottles. It is important to handle the loading and unloading of this section with care.
24" wide wine cellar

Single-zone wine cooler for residential or commercial cold storage

 Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other under-counter areas with limited footprint space

 ADA compliant design

32" height allows easy installation under lower ADA-compliant counters

 Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard-sized cabinets

 Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

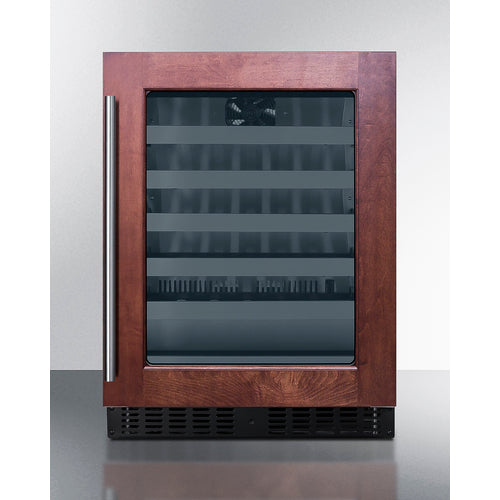

 Panel-ready door

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry

 Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

 Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

 Stainless steel interior

The walls and floor are constructed from stainless steel for added strength and easy cleanup

 Factory installed lock

Keyed lock for a secure interior (2 keys included)

 Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

 Dimmable LED lighting

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

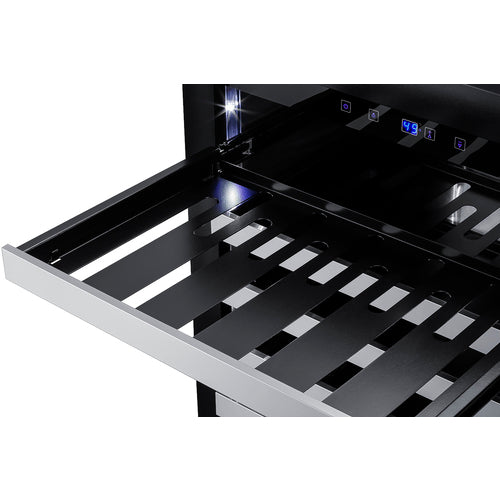

 Commercial wine shelving

Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

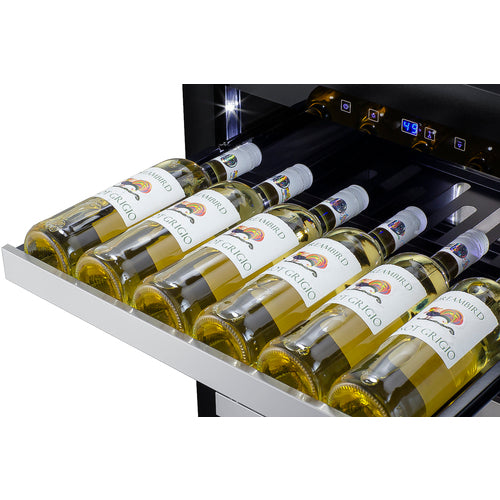

 Smooth gliding extension

Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

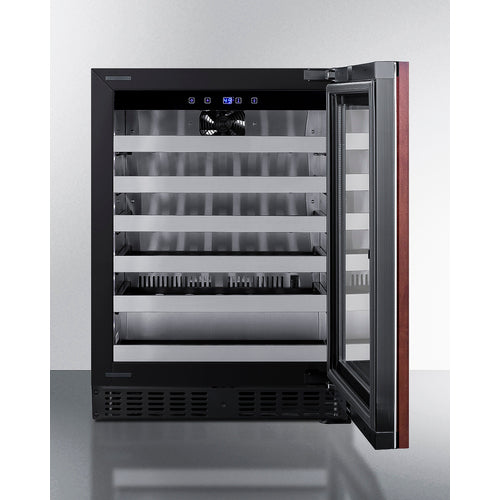

 Large capacity

33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

 Frost-free operation

No-frost operation for minimum user maintenance

 Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

 Open door alarm

An audible alarm will sound if the door is left open longer than one minute

 High-temperature alarm

High-temperature alarm sounds if the unit's interior goes out of the recommended range

 Sabbath mode setting

The optional setting lets you disable the lighting and alarm for up to 48 hours

 Temperature Memory Function

The unit will retain its last settings when power is restored in the event of power loss

 Right angle plug

The design allows you to plug the unit in flush against the wall socket with no need to add extra depth

 Sealed back

Space-saving design with no exposed coils that offers easier cleanability

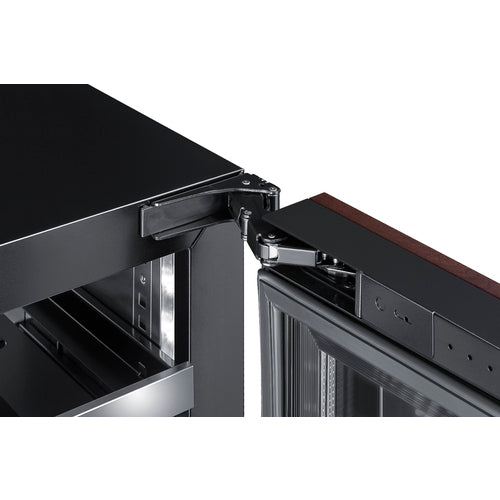

 Fully articulating European-style hinge

Smoother opening and a better fit with an integrated European hinge

 Reversible door

User-reversible door swing for added flexibility

 Fully finished black cabinet

Allows the unit to be used freestanding

 Commercially approved

ETL-S is listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

 100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

 CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

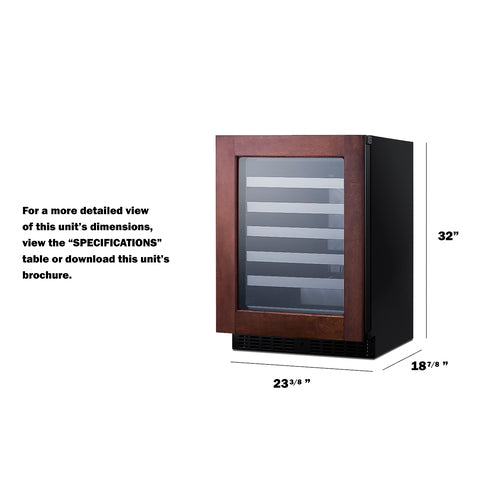

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.38" (59 cm)
Depth 17.75" (45 cm)
Depth with door at 90° 39.88" (101 cm)
Capacity 3.25 cu. ft. (92 L)
Defrost Type Frost-Free
Door Glass/Panel-Ready Frame
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 120.0 lbs. (54 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101104195     761101104218
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible Yes
Height Adjustable Yes
Adjustable Shelves Yes
Shelf Type Steel
Shelf Qty 6
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.38 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 24.25" (62 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 12.25" (31 cm)
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Level Legs 4
Temperature Range 41º to 64ºF
Sabbath Mode Yes
Exterior LHD - Left-hand door swing
Door
T3F Door Tint T4 Door Tint
T1S Door Tint T1 Door Tint
T2 Door Tint
BROCHURE w/ DRAWINGS ASDW2412PNR.pdf

ASDW2412PNRLHD.pdf
USE & CARE ASDG_ASDW_SDHG_SDHW_CL18_ALBV_AL57GPNR_Use_and_Care_Guide_4-29-24.pdf
TECHNICAL DRAWING (.dwg) ASDW2412.dwg
REVIT MODEL QF_Summit_ASDW2412_ADA_Compliant_Wine_Cellar.rfa
DRAWING ASDW2412-Assembly.pdf
MSDS INFORMATION R600a_K.pdf
