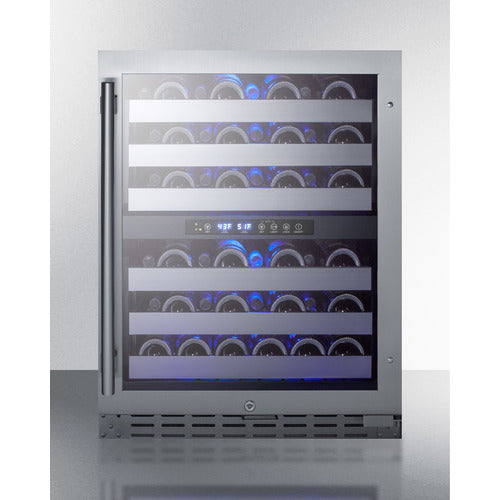

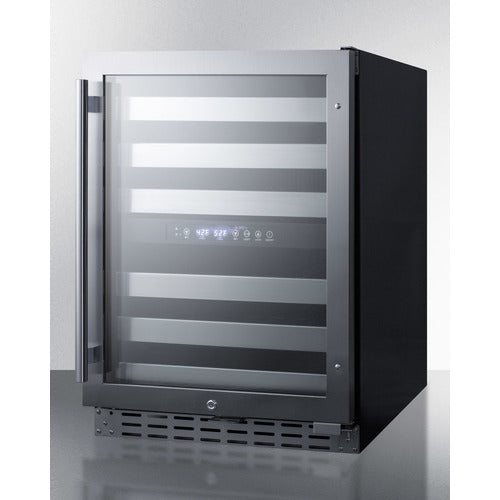

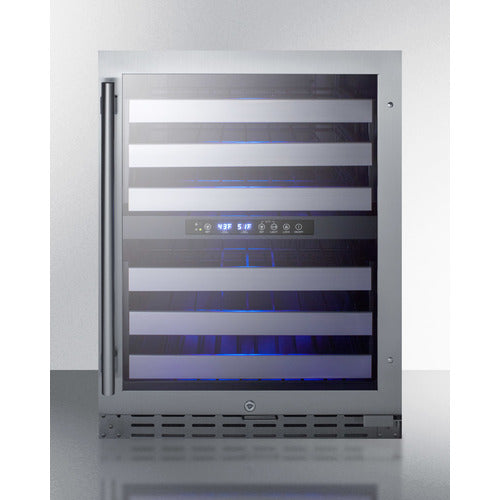

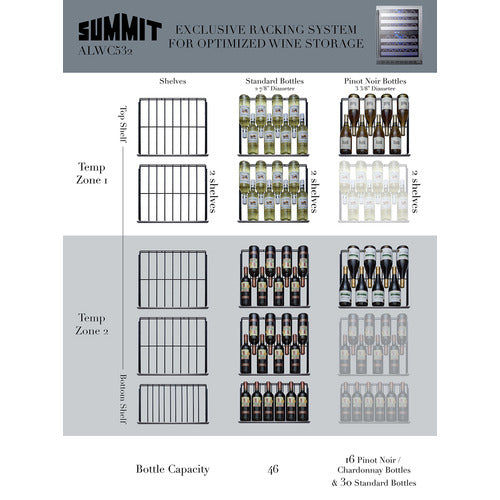

The ALWC532 and ALWC532CSS are expertly designed to hold up to 46 standard Bordeaux style bottles or a combination of 30 Bordeaux and 16 wider Burgundy bottles. Using the digital control panel, you can easily set the upper-temperature chamber to maintain a range of 41 to 50ºF for white wine, while the lower zone is perfect for storing red wine between 50 and 64ºF.

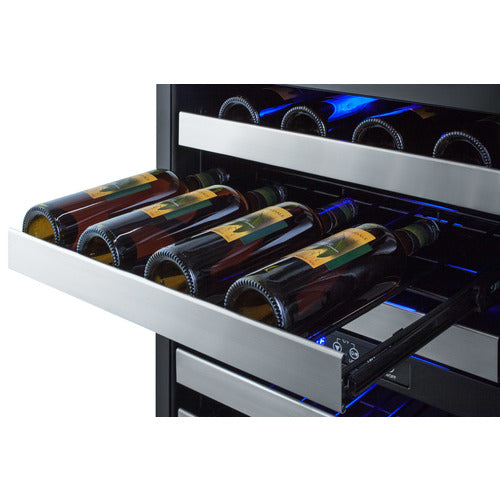

The six full-extension black wire shelves with stainless steel front trim provide smooth, ball-bearing glides for effortless loading. Additionally, both compartments feature recessed LED lighting in a soothing blue hue for a professional and energy-efficient display.

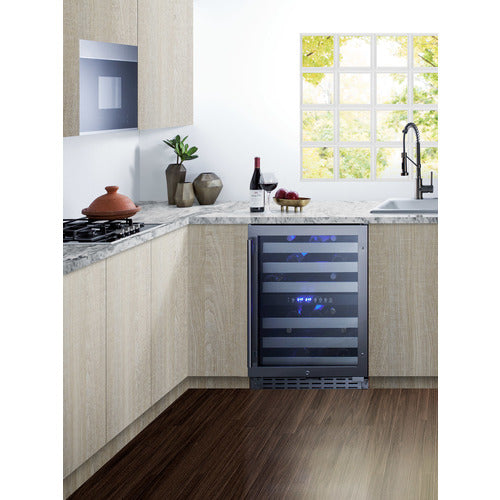

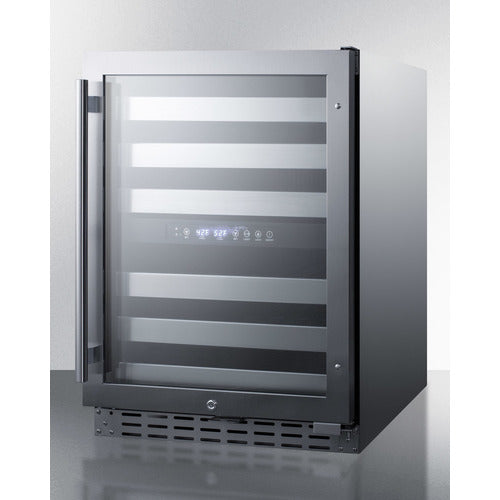

Enhance any ADA-compliant space with the modern style and versatile design of the ALWC532 and ALWC532CSS wine cellars. These units offer advanced user features and can come with either a panel-ready door trim or a stainless steel-wrapped exterior cabinet. Explore our website for even more customization options.
FEATURES
Sized just under 32" high for an easy fit under lower ADA-compliant counters
ETL-S is listed to NSF-7 standards for use in commercial applications
The front-breathing design allows this unit to be installed under counters
Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

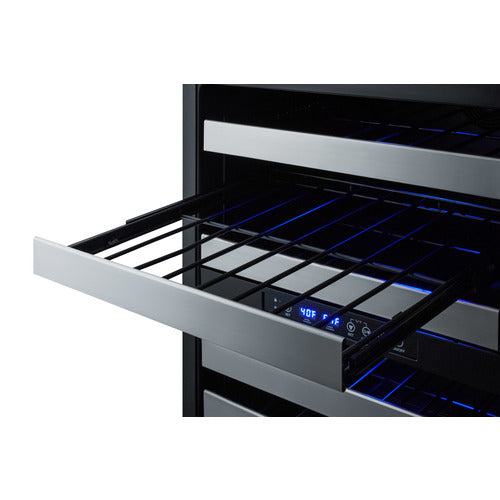

Shelves move smoothly on ball-bearing glides for easier loading and unloading
The lower zone for reds has a temperature range of 50º F to 64º F; the Upper zone stores whites and sparkling wine between 41º F and 50º F

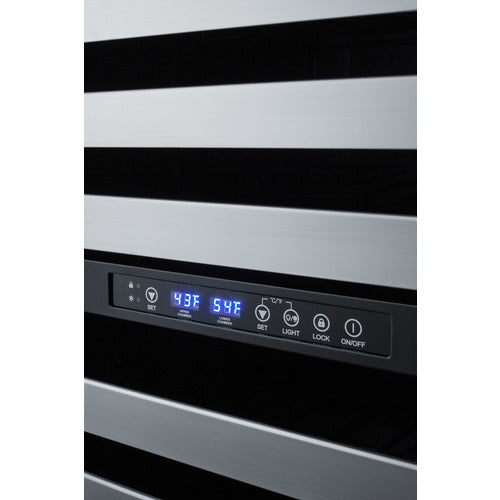

Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Single-piece door trim offers a more deluxe look

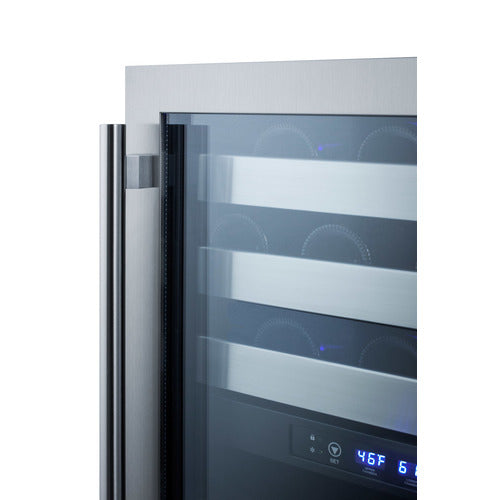

Stainless steel handle with solid 1" diameter for added style
Provides a full display of the interior, with two levels of glass for added protection
Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included
User-reversible door swing makes it easy to best accommodate your setting
Allows the unit to be used freestanding

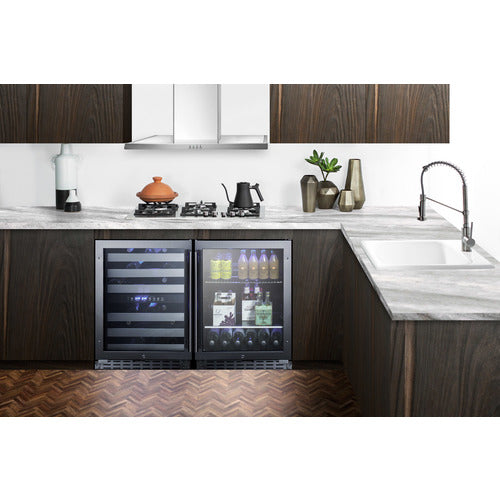

Pairs perfectly with the ALBV2466
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth, and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 31.63" (80 cm) |
| Width | 23.5" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063287 761101065540 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| SSK - Stainless steel kickplate |
| Door |
| T1 Door Tint | T1S Door Tint |
| T2 Door Tint | T3 Door Tint |
| T4 Door Tint |
