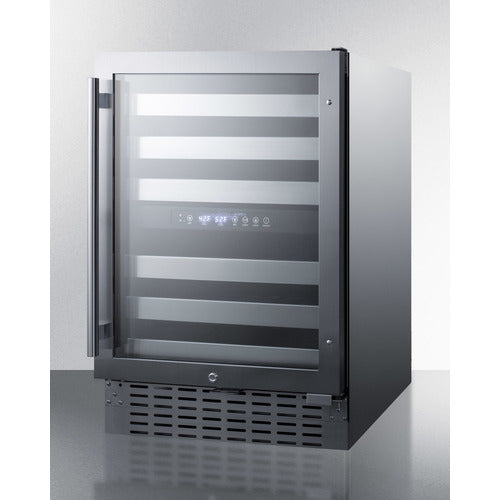

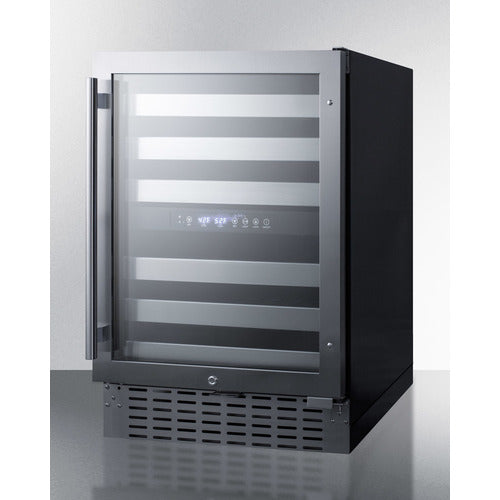

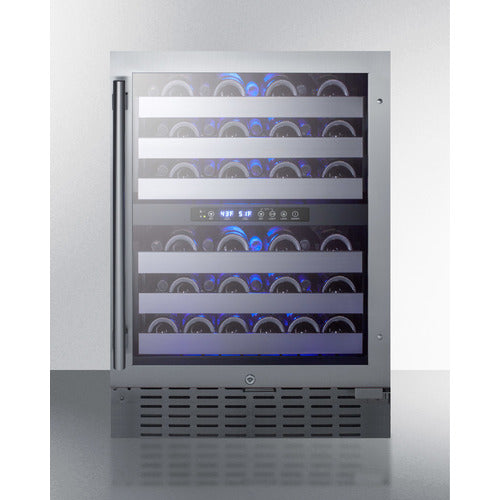

The SWC532BLBIST and SWC532BLBISTCSS feature a spacious interior designed to hold up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles.
The digital control panel enables you to adjust the upper chamber's temperature between 41 and 50ºF for white wine, while the lower zone is perfect for storing red wine between 50 and 64ºF. With six full-extension black wire shelves with stainless steel front trim, loading and unloading bottles is a breeze. Both compartments also come with recessed LED lighting in a soft blue tone, providing an attractive and efficient display.

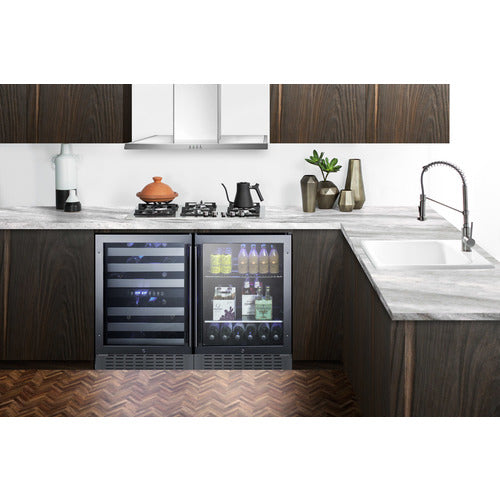

Improve your wine storage with the Summit Appliance SWC532BLBIST and SWC532BLBISTCSS. Pair it with the SCR2466B beverage cooler for a cohesive and modern wine storage solution. Enjoy advanced user features and a versatile design for any setting.
FEATURES
ETL-S listed to NSF-7 standards for use in commercial applications
Front-breathing design allows this unit to be installed under counters

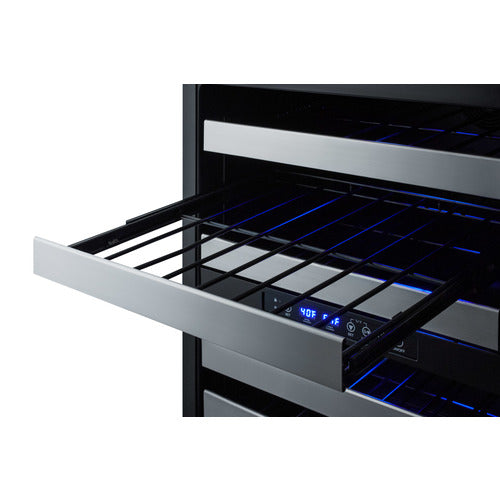

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

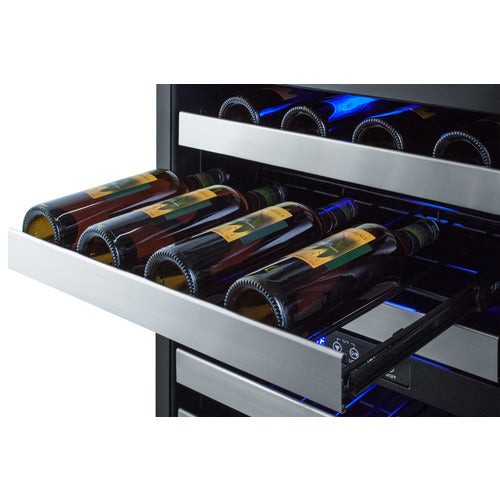

Shelves move smoothly on ball-bearing glides for easier loading and unloading
Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

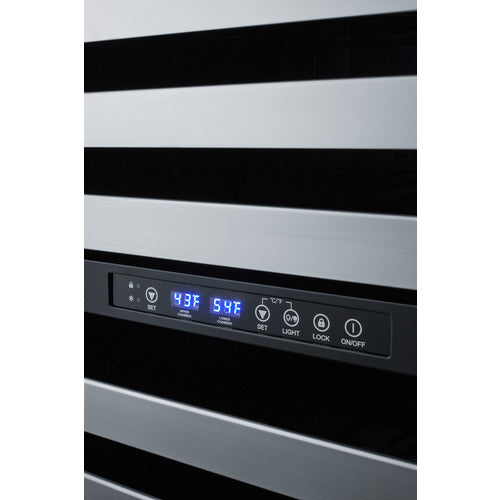

Easy temperature management with electronic controls located inside
Temperature viewable in Celsius or Fahrenheit
Reduced maintenance with auto defrost system
Single-piece door trim offers a more deluxe look

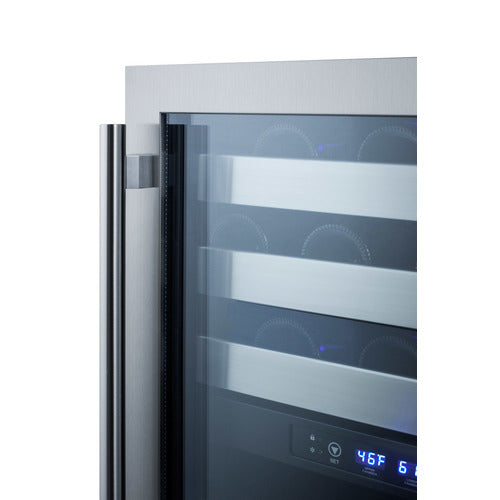

Stainless steel handle with solid 1" diameter for added style
Provides a full display of the interior, with two levels of glass for added protection

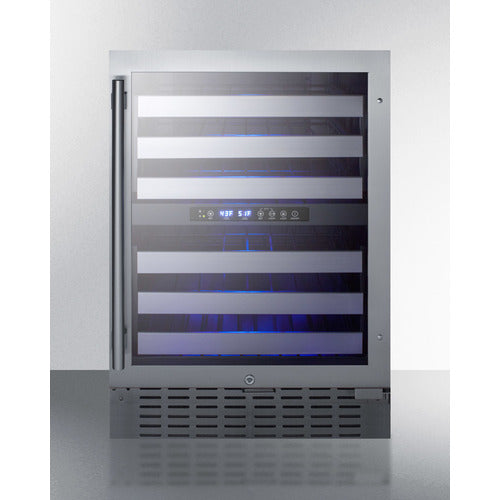

Recessed LED lighting in both compartments brings striking blue illumination to your collection
Keyed lock for secure interior, with two keys included
User-reversible door swing makes it easy to best accommodate your setting
Allows the unit to be used freestanding
Pairs perfectly with the SCR2466B
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.5" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 25.38" (64 cm) |
| Depth with door at 90° | 45.75" (116 cm) |
| Bottles | 46 bottles |
| Defrost Type | Automatic |
| Door | Glass |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.25 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101063126 761101067025 |
|
Wine Cellar
|
|
| Number of Zones | 2 |
| Door Swing | RHD |
| Reversible | Yes |
| Shelf Type | Wire |
| Shelf Qty | 6 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.23 oz. |
| High Side PSI | 150.0 |
| Low Side PSI | 50.0 |
| Interior Height 1 | 11.63" (30 cm) |
| Interior Width 1 | 20.5" (52 cm) |
| Interior Depth 1 | 18.0" (46 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Level Legs | 2 |
| Temperature Range | 41 to 64ºF |
| Interior Height 2 | 11.88" (30 cm) |
| Interior Width 2 | 20.5" (52 cm) |
| Interior Depth 2 | 18.0" (46 cm) |
AVAILABLE UPGRADES
| Exterior | LHD - Left-hand door swing |
| Door |
| T4 Door Tint | T3 Door Tint |
| T2 Door Tint | T1S Door Tint |
| T1 Door Tint |
